If you do not see exactly what you need, please email your requirement to sales@pmi-rf.com so we can propose an instant solution.

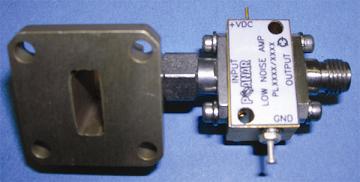

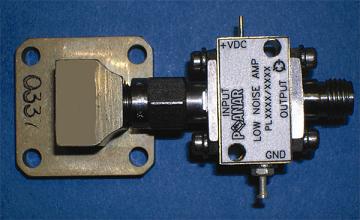

PMI offers a line of low-cost, highly reliable, low-noise amplifiers featuring waveguide input.  Four standard models are currently available and they span the frequency range of 5.85 to 26.5GHz.

Features:

  • All supplied with removable waveguide input adapter
  • Internally Voltage Regulated
  • Internal Reverse Voltage Protection
  • Ultra-small, Ultra light
  • Low Cost
  • Fast Delivery

Options:

  • MIL-STD-883 Level and S-Level Screening Available.

Click here to see the product flyer.

Part NumberStatusFrequency RangeFrequency MinFrequency MaxGainGain FlatnessDatasheet
PE10WR90-25-8R212R4-12Preliminary8.2 - 12.4 GHz8.2 GHz12.4 GHz25 dB±0.75 dB
-
PE10WR112-32-710-12Preliminary7.05 - 10.0 GHz7.05 GHz10 GHz32 dB±1.25 dB
-
PE10WR137-34-68R2-12Preliminary5.85 - 8.20 GHz5.85 GHz8.2 GHz34 dB±1.5 dB
-
PE10WR42-22-1826R5-12Preliminary18.0 - 26.5 GHz18 GHz26.5 GHz22 dB±1 dB
-
