The following listing contains various narrow bandwidth, cavity filters that PMI has manufactured and produced for many different customers. This is just a small list which demonstrates our filter design capabilities.

If you do not see exactly what you need, please e-mail your requirement to sales@pmi-rf.com so we can propose an instant solution.

Part NumberStatusCenter Frequency, FoBandwidthPassband Insertion Loss
10C14D5G-200-CD-SFFPreliminary14500MHz200MHz5.0dB
10C14D65G-200-CD-SFFPreliminary14650MHz200MHz5.0dB
10C14D8G-200-CD-SFFPreliminary14800MHz200MHz5.0dB
10C14D95G-200-CD-SFFPreliminary14950MHz200MHz5.0dB
10C15D1G-200-CD-SFFPreliminary15100MHz200MHz5.0dB
10C15D25G-200-CD-SFFPreliminary15250MHz200MHz5.0dB
10C15D4G-200-CD-SFFPreliminary15400MHz200MHz5.0dB
10C15D55G-200-CD-SFFPreliminary15550MHz200MHz5.0dB
10C15D7G-200-CD-SFFPreliminary15700MHz200MHz5.0dB

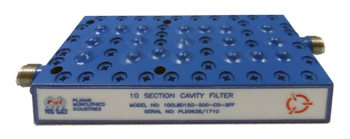

10CL8D15G-500-CD-SFFActive8150 GHz±250 MHz (7.9 to 8.4 GHz)<=0.7 dB @ 8.15 GHz, <=1.4 dB @ 7.9 to 8.4 GHz
5C10D14G-180-CD-SFFPreliminary10140MHz180MHz2.0dB
5C11D94G-180-CD-SFFPreliminary11940MHz180MHz2.0dB
5C12D9G-180-CD-SFFPreliminary12900MHz180MHz2.0dB
5C14D125G-600-CD-SFFPreliminary14125MHz600MHz5.0dB
5C9D18G-180-CD-SFFPreliminary9180MHz180MHz2.0dB
5CL7G-42-CD-SFFPreliminary7000 MHz42 MHz1.2 dB
6C6500-130-CD-SFFPreliminary6500MHz130MHz2.0dB
7C1640-10-CD-SFFPreliminary1640MHz10MHz4.7dB
8C10D2G-300-CD-SFFActive10200MHz300MHz<= 3.0dB max
8C10D8G-300-CD-SFFPreliminary10800MHz300MHz3.0dB
8C11D4G-300-CD-SFFPreliminary11400MHz300MHz3.0dB
8C12D6G-300-CD-SFFPreliminary12600MHz300MHz3.0dB
8C13D2G-300-CD-SFFPreliminary13200MHz300MHz3.0dB
8C13D8G-300-CD-SFFPreliminary13800MHz300MHz3.0dB
8C1542D5-35-CD-SFFActive1542.5MHz35 MHz - Measured 35.9 MHz1.5 dB - Measured 1.17 dB
8C1575-20-CD-SFFActive1575 MHz - Measured 1574.5 MHz nom.20 MHz - Measured 33 MHz nom.1.5 dB - Measured 1.16 dB
8C15D6G-300-CD-SFFPreliminary15600MHz300MHz3.0dB
8C1642D5-35-CD-SFFActive1642.5MHz35 MHz - Measured 35.6 MHz1.5 dB - Measured 1.06 dB
8C16D2G-300-CD-SFFPreliminary16200MHz300MHz3.0dB
8C16D8G-300-CD-SFFPreliminary16800MHz300MHz3.0dB
8C1747D5-75-CD-SFFPreliminary1747.5MHz75MHz1.5dB
8C17D4G-300-CD-SFFPreliminary17400MHz300MHz3.0dB
8C1842D5-75-CD-SFFPreliminary1842.5MHz75MHz1.5dB
8C1880-30-CD-SFFPreliminary1880MHz30MHz1.5dB
8C1960-60-CD-SFFPreliminary1960MHz60MHz1.5dB
8C795-10-CD-SFFPreliminary795MHz10MHz2.5dB
8C836D5-25-CD-SFFPreliminary836.5MHz25MHz1.2dB
8C881D5-25-CD-SFFPreliminary881.5MHz25MHz1.0dB
8C902D5-25-CD-SFFPreliminary902.5MHz25MHz1.0dB
8C937D8375-10-CD-SFFPreliminary937.8375MHz10MHz1.0dB
8C947D5-25-CD-SFFActive947.5MHz25MHz1.0dB
8C950-10-CD-SFFPreliminary950MHz50MHz2.0dB
BPF1370-50-CD-TNCMFActive1370MHz50MHzLess than 3dB
BPF1370-50-CD-TNCMF-BLActive1370MHz50MHzLess than 2dB
BPF1370-50-CD-TNCMF-LKActive1370MHz50MHzLess than 2dB
C1350-20-CD-NMFPreliminary1350MHz200MHz0.5dB
CL3G-20-CD-SSPreliminary3100MHz20MHz0.5dB
8C1227-20-CD-SFFPreliminary1227MHz20MHz2.0dB
8C9D6G-300-CD-SFFPreliminary9600MHz300MHz3.0dB
