Band Reject Notch Filters

Quantic PMI offers various band reject filters that have been manufactured and produced for many different customers. This is just a small list which demonstrates our filter design capabilities.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.


BR2G315R2G35R-SFF Active	Active	2.325 GHz	2.315 to 2.35 GHz	3.0 dB Max
JTIDS-0001-TNC-FM Preliminary	Preliminary	1.085 GHz	0.25 GHz	6 dB
JTIDS-0001-TNC-MF Preliminary	Preliminary	1.085 GHz	0.25 GHz	6 dB

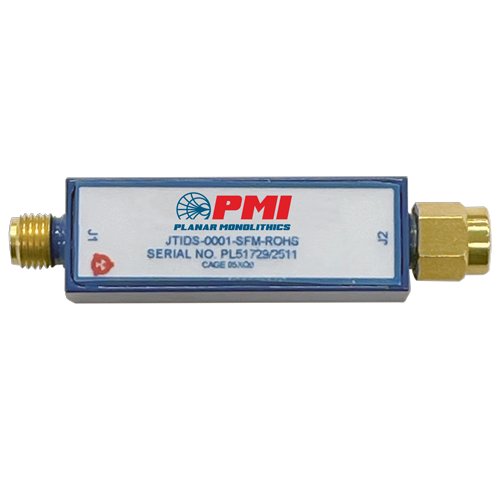

JTIDS-0001-SFM	Active	1.085 GHz	0.25 GHz	6 dB

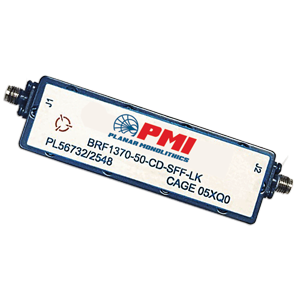

BRF1370-50-CD-SFF-LK Preliminary	Preliminary	1.37 GHz	0.06 GHz	<1.5 dB & 3 dB @ 2.7 GHz
BR-DC-2D5G-18G-CD-TNC-MF Preliminary	Preliminary	7.75 GHz	-	1.5 dB Typ (DC & 2.7 to 18 GHz) 3 dB Typ (2.5 to 2.7 GHz)
7BR1643-74-CD-SS Active	Active	1.643 GHz	0.074 GHz	0.5 dB Max
7BR1643-74-CD-SFF Active	Active	1.643 MHz	0.074 GHz @ 3 dB	0.5 dB
BR5900-100-CD-SS Active	Active	5.9 GHz	0.1 GHz @ 3 dB	1.8 dB Max
6BR7D1G-100-CD-SS Active	Active	7.1 GHz	0.1 GHz @ 3 dB	-0.5 dB Max.
BR6000-100-CD-SS Active	Active	6 GHz	100 MHz (5.95 to 6.05 GHz)	1 dB Max
BR-DC-205G-18G-CD-TNC-MF Preliminary	Preliminary	-	-	1.5 dB Typ (DC & 2.7 to 18 GHz), 3 dB Typ (2.5 to 2.7 GHz)
BRF-26D6G-800M-CD-1 Active	Active	11.995 GHz, 39.5 GHz	26.2 to 27 GHz	Band 1: 4 dB Typ Band 2: 4 dB Typ
BR5800M-10M-SFF Preliminary	Preliminary	5.8 GHz	0 to 5.79 GHz and 5.81 to 8 GHz	2 dB Max @ 0 to 5.78 GHz and 5.82 to 8 GHz 3 dB Max @ 5.79 to 5.81 GHz
BRF1370-50-CD-TNCFF-BL Active	Active	1.37 GHz	0.06 GHz	Less than 1.5dB
SATCOM-0001 Preliminary	Preliminary	0.245 GHz	0.3 GHz	7 dB
BR130M-10M-SFF Preliminary	Preliminary	0.06 GHz, 0.585 GHz	-	1.5 dB Max
BR65M-8M-SFF Preliminary	Preliminary	0.0405 GHz, 0.5395 GHz	-	1.5 dB Max
BRF1370-50-CD-TNCFF-LK Active	Active	1.37 GHz	0.060 GHz	Less than 1.5 dB
JTIDS-0001 Active	Active	1.085 GHz	0.25 GHz	6 dB
5MBR17R1G-40DB-CD-SFF Active	Active	17.1 MHz	0.4 GHz	1.0 dB
BR192.5-10-B/B Active	Active	0.1925 GHz	0.009 GHz	1.5 dB
BR1050-300-CD-TNC-MF Active	Active	1.15 GHz	1.7 GHz	1.5 dB
BRF1370-50-CD-TNCFF Active	Active	1.37 GHz	0.06 GHz	<2.5 dB
BRF17D6G-20M-CD-1 Active	Active	8.735 GHz, 18.885 GHz	-	5 dB Typ
5BR5R65G-2R5G-CD-SFF Active	Active	5.65 GHz	0.5 GHz	1 dB
BR52-10-B/B Active	Active	0.052 GHz	0.009 GHz	1.5 dB
BR65-10-B/B Active	Active	0.065 GHz	0.009 GHz	1.5dB

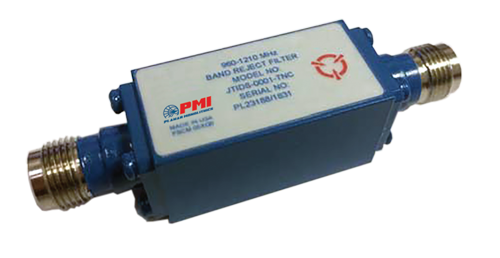

JTIDS-0001-TNC Active	Active	1.085 GHz	0.25 GHz	6.0 dB

Part Number

Status

Center Frequency, Fo

Notch Bandwidth

Passband Insertion Loss

BR2G315R2G35R-SFF
Active

Active

2.325 GHz

2.315 to 2.35 GHz

3.0 dB Max

JTIDS-0001-TNC-FM
Preliminary

Preliminary
