Diplexers

Quantic PMI offers a variety of high-quality diplexers for industrial and military applications with customizable frequencies to 50 GHz. While there are several standard models to choose from, Quantic PMI can design and build a product to meet your specifications.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.


DP-DC4G-HPLP-SFF Preliminary	Preliminary	-	3.5" x 2.5" x 0.75" (Proposed, final size TBD)	CH 1: DC to 0.01 GHz low pass, isolated ground shorted to chassis ground above 0.1 GHz	CH 2: 0.05 MHz high pass filter (measured to 4 GHz), shorted to chassis ground
DP-2003M2185M-SFF Preliminary	Preliminary	CH 1 - 2.0025 GHz CH 2- 2.185 GHz	4.53" x 3.47" x 1.02"	1.98 to 2.025 GHz	2.17 to 2.2 GHz
DP-1D2G-2D725G-CD-SFF Active	Active	CH 1 - 1.2 GHz CH 2 - 2.725 GHz	2.96" x 2.29" x 0.39"	0.5 to 1.82 GHz	1.98 to 3.55 GHz
DP-4500M4800M-SFF Preliminary	Preliminary	CH 1 - 4.5 GHz CH 2 - 4.8 GHz	5.12" x 3.86" x 0.79"	4.4 to 4.6 GHz	4.7 to 4.9 GHz
DP-1500M2300M-SFF Preliminary	Preliminary	CH 1 - 1.5 GHz CH 2 - 2.3 GHz	3.55" x 2.13" x 0.79"	1.4 to 1.6 GHz	2.2 to 2.4 GHz
DIP-3R7-4R618-4R3-DC3R6 Preliminary	Preliminary	CH 1 - 1.85 GHz CH 2 - 15.15 GHz	2"X1.5"X0.6"	DC to 3.7 GHz	4.3 to 26.0 GHz
DP1840-29G-CD-1 Preliminary	Preliminary	CH 1 - 22.92 GHz CH 2 - 35.08 GHz	1.25" x 0.600" x 0.500"	18.0 to 27.84 GHz	30.16 to 40.0 GHz
DP-2R3-4R7-SFF Preliminary	Preliminary	CH 1 - 2.3 GHz CH 2 - 4.7 GHz	2.36" x 2.76" x 0.39"	2.2 to 2.4 GHz	4.4 to 5.0 GHz
DP-1D4G2D6G-2G-SFFF Preliminary	Preliminary	CH 1 - 1.675 CH 2 - 2.325 GHz	TBD	1.4 to 1.95 GHz	2.05 to 2.6 GHz
DP-4R3G4R4G-4R6G4R7G-SFFF Preliminary	Preliminary	CH 1 - 4.35 CH 2 - 4.65 GHz	4.33" x 3.15" x 0.79"	4.3 to 4.4 GHz	4.6 to 4.7 GHz
11DP-11R5/16R5-CD-SFF-1 Active	Active	CH 1 - 11.5 GHz CH 2 - 16.5 GHz	3.5" x 1.4" x 0.5"	10.75 to 12.25 GHz	15.75 to 17.25 GHz
11DP-3D8G/12G-CD-SFF Active	Active	CH 1 - 3.8 CH 2 - 12.0 GHz	2.00" x 1.00" x 0.75"	3.4 to 4.2 GHz mMn	10.9 to 13.1 GHz Min
DP-2G18G-6G-60-SFFF Preliminary	Preliminary	CH 1 - 3.0 GHz CH 2 - 12.0 GHz	1.58" x 1.89" x 0.39"	DC to 5.75 GHz	6.25 to 18.0 GHz
DP-5700M-6500M-CD-SFF Active	Active	CH 1 - 6.1 GHz CH 2 - 14.125 GHz	2.50" x 1.00" x 0.60"	5.7 to 6.5 GHz	13.75 to 14.5 GHz

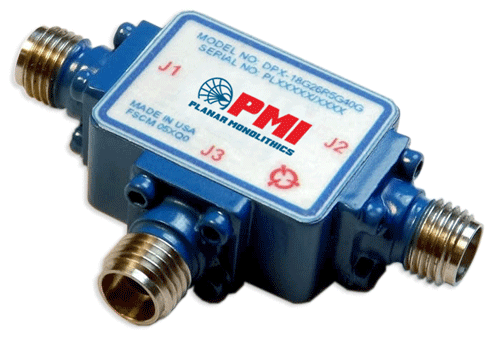

DPX-18G26R5G40G Active	Active	CH 1 - 21.5 GHz CH 2 - 34.0 GHz	0.80" x 0.60" x 0.38"	18.0 to 25.0 GHz	28.0 to 40.0 GHz
11DP-11R5/16R5-CD-SFF Active	Active	CH 1 - 11.5 GHz CH 2 - 16.5 GHz	3.5" x 1.4" x 0.5"	10.75 to 12.25 GHz	15.75 to 17.25 GHz

Part Number

Status

Center Frequencies, Fo

Size

Low Passband

High Passband

DP-DC4G-HPLP-SFF
Preliminary

Preliminary

3.5" x 2.5" x 0.75" (Proposed, final size TBD)

CH 1: DC to 0.01 GHz low pass, isolated ground shorted to chassis ground above 0.1 GHz

CH 2: 0.05 MHz high pass filter (measured to 4 GHz), shorted to chassis ground

DP-2003M2185M-SFF
Preliminary
