Single Pole - Sixteen Throw (SP16T)

Quantic PMI offers a variety of Single Pole - Sixteen Throw (SP16T) designs which can include operating frequency ranges up to 70 GHz; connector options; reflective and absorptive configurations; excellent isolation; low insertion loss; high power capabilities; hermetic sealing; military or space screening; amplitude & phase matching and dual use components for surface mount or connectorized applications.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Part NumberStatusFrequencyFrequency MinFrequency MaxReflective / AbsorptiveIsolationInsertion LossSwitching Speed
P16T-812-65-T-515-SFF-MICROD-DEC
Preliminary		Preliminary8 to 12 GHz8 GHz12 GHzAbsorptive65 dB Min8 dB Max150 ns Max
P16T-10G31G-60-T-512-SFF-DEC
Preliminary		Preliminary10 to 31 GHz10 GHz31 GHzAbsorptive60 dB Min10 dB Max100 ns Max
P16T-100M40G-100-T-DEC
Preliminary		Preliminary0.1 to 40 GHz0.1 GHz40 GHzAbsorptive70 dB (0.1 TO 1 GHz) Typ
90 dB (1 TO 18 GHz) Typ
80 dB (18 TO 40 GHz) Typ		8.0 dB (0.1 TO 18 GHz) Typ
12.5 dB (18 TO 40 GHz) Typ		100 ns Max

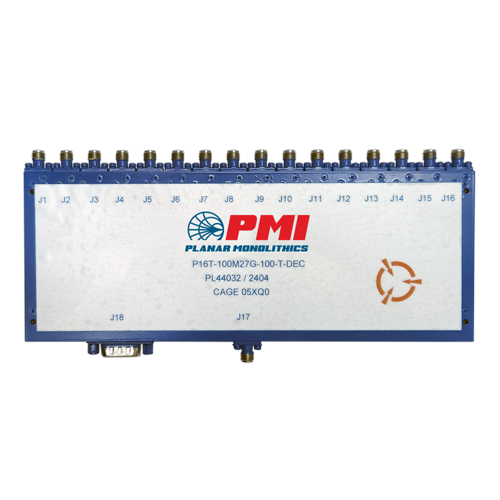

P16T-100M27G-100-T-DEC
Active		Active0.1 to 27 GHz0.1 GHz27 GHzAbsorptive70 dB (0.1 to 1 GHz) Typ
90 dB (1 to 18 GHz) Typ
80 dB (18 to 27 GHz) Typ		8.0 dB (0.1 to 18 GHz) Typ
10.0 dB (18 to 27 GHz) Typ		100 ns Max
P16T-100M40-100-T-DEC-OPT2640
Active		Active26.0 to 40.0 GHz26.0 GHz40.0 GHzAbsorptive80 dB Typ12.5 dB Typ100 ns Max
P16T-0R518-60-T-SFF-MICROD
Preliminary		Preliminary0.5 to 18.0 GHz0.5 GHz18.0 GHzAbsorptive60 dB min.7.5 dB max.Delay On/Off: 100 ns typ.
P16T-250M18G-60-T-512-SFF-DEC-1W
Active		Active0.25 to 18.0 GHz0.25 GHz18 GHzAbsorptive60 dB Min6.0 dB goal, 7.0 dB MaxRise/Fall - 50 ns Typ/10 ns Typ
Delay On/Off - 150 ns Max
P16T-0R5G18G-60-T-SFF-OPT8G11G
Preliminary		Preliminary8.0 to 11.0 GHz8 GHz11 GHzAbsorptive70 dB min.6.0 dB max.Delay On/Off: 100 ns typ
P16T-100M20G-110-T-512-SFF
Preliminary		Preliminary0.1 to 20.0 GHz0.1 GHz20 GHzAbsorptive110dB min9.5dB typ, 10.5dB maxRise/Fall Time: 50 ns typ.
Delay On/Off: 150 ns typ.
P16T-100M50G-100-T-I-OPT44
Preliminary		Preliminary0.1 to 44.0 GHz0.1 GHz44 GHzAbsorptive70 dB (0.1 to 1.0 GHz) Typ, 90 dB (1.0 to 18.0 GHz) Typ, 80 dB (18.0 to 40.0 GHz) Typ, 70 dB (40.0 to 44.0 GHz) Typ6.5 dB (0.1 to 18.0 GHz) Typ, 10.0 dB (18.0 to 40.0 GHz) Typ, 19.0 dB (40.0 to 44.0 GHz) Typ100 ns Max
P16T-18G40G-90-R-512-SFF-DEC
Preliminary		Preliminary18.0 to 40.0 GHz18 GHz40 GHzReflective50 dB min12 dB typRise/Fall Time: 50 ns typ./10 ns typ.
Delay On/Off: 150 ns max.
P16T-100M50G-100-T-I
Active		Active0.1 to 50.0 GHz0.1 GHz50 GHzAbsorptive70 dB (0.1 to 18.0 GHz) Typ - Measured 84 dB
90 dB (1.0 to 18.0 GHz) Typ - Measured 92 dB
80 dB (18.0 to 40.0 GHz) Typ - Measured 72 dB
70 dB (40.0 to 50.0 GHz) Typ - Measured 61 dB		8.0 dB (0.1 to 18.0 GHz) Typ - Measured 12.5 dB
12.5 dB (18.0 to 40.0 GHz) Typ - Measured 17 dB
18.0 dB (40.0 to 50.0 GHz) Typ - Measured 20 dB		100 ns Max - Measured 90 ns
P16T-0R5G18G-60-T-SFF
Active		Active0.5 to 18.0 GHz0.5 GHz18 GHzAbsorptive60dB min.7.5dB max.100 nsec typ
P16T-100M40G-100-T-I-292
Active		Active0.1 to 40.0 GHz0.1 GHz40 GHzAbsorptive70 dB (0.1 to 18.0 GHz) Min - Measured 100.40 dB,
80 dB (1.0 to 18.0 GHz) Min - Measured 93.82 dB,
80 dB (18.0 to 40.0 GHz) Min - Measured 80.97 dB		10 dB (0.1 to 18.0 GHz) Max - Measured 8.23 dB,
15 dB (18.0 to 40.0 GHz) Max - Measured 14.42 dB		50 ns Typ, 100 ns Max - Measured 40 ns
P16T-18G40G-90-T-512-SFF-DEC
Active		Active18.0 to 40.0 GHz18 GHz40 GHzAbsorptive50 dB Min - Measured 55.13 dB12 dB Typ - Measured 10.38 dBRise/Fall Time: 50 ns Typ/10 ns Typ
Delay On/Off: 150 ns Max.
P16T-100M20G-60-T-512-SFF-MD15
Preliminary		Preliminary0.1 to 20.0 GHz0.1 GHz20 GHzAbsorptive60 dB typ.8.5 dB typ.Rise/Fall Time: 50 ns typ.
Delay On/Off: 150 ns max.
P16T-100M20G-60-T-512-SFF
Active		Active0.1 to 20.0 GHz0.1 GHz20 GHzAbsorptive60 dB Typ - Measured 64.33 dB8.5 dB Typ - Measured 8.08 dBRise/Fall Time: 50 ns Typ
Delay On/Off: 150 ns Max
P16T-100M40-100-T-DEC
Preliminary		Preliminary0.1 to 40.0 GHz0.1 GHz40.0 GHzAbsorptive70 dB Typ (0.1 to 1.0 GHz)
90 dB Typ (1.0 to 18.0 GHz)
80 dB Typ (18.0 to 40.0 GHz)		8.0 dB Typ (0.1 to 18.0 GHz)
12.5 dB Typ (18.0 to 40.0 GHz)		100 ns Max
P16T-100M20G-60-T-512-SFF-DEC
Active		Active0.1 to 20.0 GHz0.1 GHz20 GHzAbsorptive60 dB Typ8.5 dB TypRise/Fall Time: 50 ns Typ/10 ns Typ
Delay On/Off: 150 ns Max
P16T-100M40G-90-T-512-SFF-DEC
Preliminary		Preliminary0.1 to 40.0 GHz0.1 GHz40 GHzAbsorptive70 dB (0.1 to 1.0 GHz) MIN, 80 dB (1.0 to 18.0 GHz) MIN, 80 dB (18.0 to 40.0 GHz) MIN10 dB (0.1 to 18.0 GHz) MAX, 15 dB (18.0 to 40.0 GHz) MAXRise/Fall Time: 50 ns max./10 ns typ.
Delay On/Off: 100 ns max./50 ns typ.

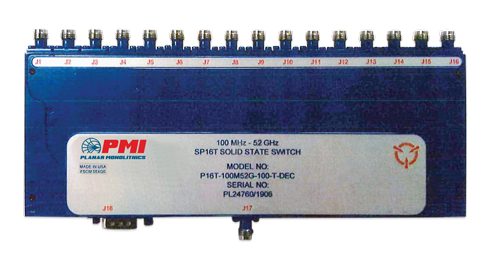

P16T-100M52G-100-T-DEC
Active		Active0.1 to 52.0 GHz0.1 GHz52 GHzAbsorptive70 dB Typ (0.1 to 1.0 GHz)
90 dB Typ (1.0 to 18.0 GHz)
80 dB Typ (18.0 to 40.0 GHz
70 dB Typ (40.0 to 52.0 GHz)		8.0 dB Typ (0.1 to 18.0 GHz)
12.5 dB Typ (18.0 to 40.0 GHz)
18.0 dB Typ (40.0 to 52.0 GHz)		100 ns Max
P16T-100M50G-100-T-DEC
Active		Active0.1 to 50.0 GHz0.1 GHz50 GHzAbsorptive70 dB Typ (0.1 to 1.0 GHz)
90 dB Typ (1.0 to 18.0 GHz)
80 dB Typ (18.0 to 40.0 GHz)
70 dB Typ (40.0 to 50.0 GHz)		8.0 dB Typ (0.1 to 18.0 GHz)
12.5 dB Typ (18.0 to 40.0 GHz)
18.0 dB Typ (40.0 to 50.0 GHz)		100 ns Max
