If you do not see exactly what you need, please email your requirement to sales@pmi-rf.com so we can propose an instant solution.

Part NumberStatusFrequency MinFrequency MaxVSWR In/OutOP1dBNoise Figure
PEC-4520-12-15-SFF-VVGPreliminary2 GHz18 GHz2.0:1 max.+16 dBm min.4.5 dB max.
PE2-34-2G18G-3R5-20-SFF-WG-DDActive5.5 GHz18 GHz2.0:1 max.+10 dB min3.0 dB goal, 3.7 dB max.
PEC-20-218-16-15-SFF-TTLVGActive2 GHz18 GHz2.0:1 max.+15 dBm min, +16 dBm typ7.0 dB max.
PEC-40-25-218-21-12-SFF-TTLVGActive2 GHz18 GHz2.0:1 Max
-
-
PE2-34-2G18G-3R5-15-SFF-VVG-DDActive5.5 GHz18 GHz2.0:1 max+10 dB min (at 0 dB Attenuation) - Measured ›10 dBm3.0 dB goal, 3.7 dB max (at 0 dB Attenuation) - Measured 4.00 dB @ 2.0 GHz, 2.69 dB @ 5.5 GHz

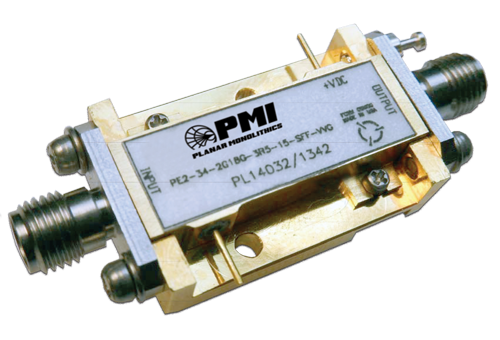

PE2-34-2G18G-3R5-15-SFF-VVGActive5.5 GHz18 GHz2.0:1 mas+10 dB min3.0 dB goal, 3.7dB max
PE2-4020-9R510R7-2R5-12-12-SFF-VVGActive9.5 GHz10.7 GHz2.0:1 max.+12 dBm min.4 dB Typ.
