If you do not see exactly what you need, please e-mail your requirement to sales@pmi-rf.com so we can propose an instant solution.

Part NumberStatusFrequency MinFrequency MaxPhase BalanceInsertion LossIsolation

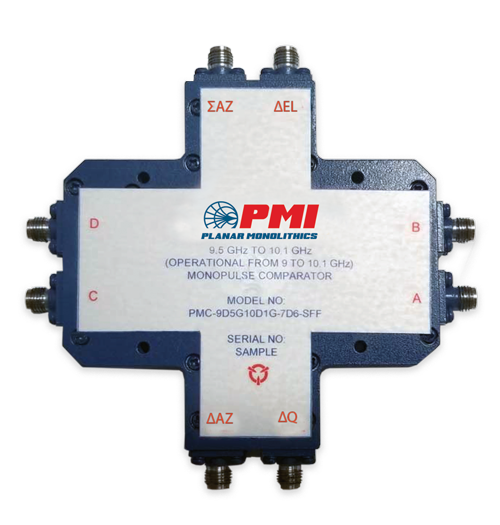

PMC-9D5G10D1G-7D6-SFFPreliminary9.5 GHz10.1 GHz±5° Max7.6 dB max20 dB Min
PMC-9G10G-7D9-SFFActive9 GHz10 GHz±6° Max - Measure ±5.5 dB1.9 - 7.67 dB Max18 dB Min
PMC-3G3D5G-6D8-SFFActive3 GHz3.5 GHz±5° Max - Measure ±3.2 dB0.8 - 6.6132 dB Max23 dB Min
PD-CD-001-1Active9.3 GHz9.9 GHz±7.0° Max. - Measured 4°8.0 dB Max
-
PMC-12G13G-1D6-SFFPreliminary12.0 GHz13.0 GHz±5° dB max.1.6 dB max.18 dB min.
PMC-9D5G10D6G-7D6-SFFPreliminary9.5 GHz10.5 GHz±5° Max7.6 dB max20 dB Min

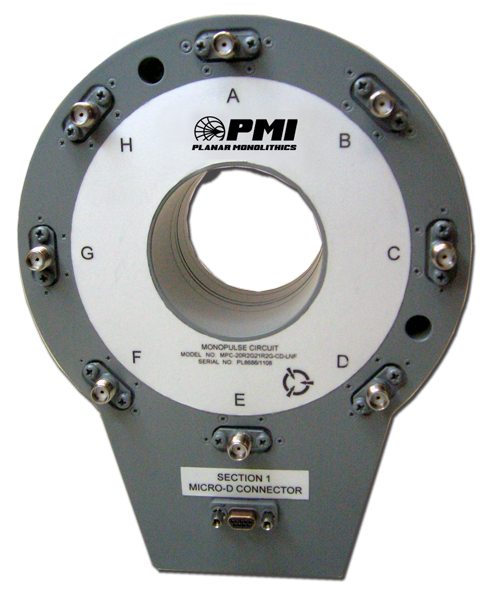

MPC-20R2G21R2G-CD-LNFActive20.2 GHz21.2 GHz±3° Max
-
-
