4BP160-4-2A-PP Preliminary

Bandpass Filters

Product Feature

Quantic PMI Model 4BP160-4-2A-PP is a band pass filter centered at 0.16 GHz with a nominal bandwidth of 0.004 GHz, ± 5%. Package size is 1.20" x 0.31" x 0.31" with PC pins connectors in and out.

Product Specifications

General Parameters:
Status: Preliminary
Center Frequency: 0.16 GHz
Insertion Loss: 10 dB Typ
Bandwidth: 0.004 GHz ± 5%
Rejection: 4 Section Response
Connectors: PC Pins

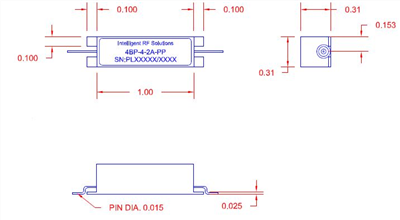

Size: 1.20" x 0.31" x 0.31"
VSWR in the Pass Band: 1.5:1 Max
Insertion Loss (Pass Band): 10 dB Typ
Environmental Ratings:
Temperature: -40 °C to +85 °C
Non-Operating Temperature: -40 °C to +100 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
