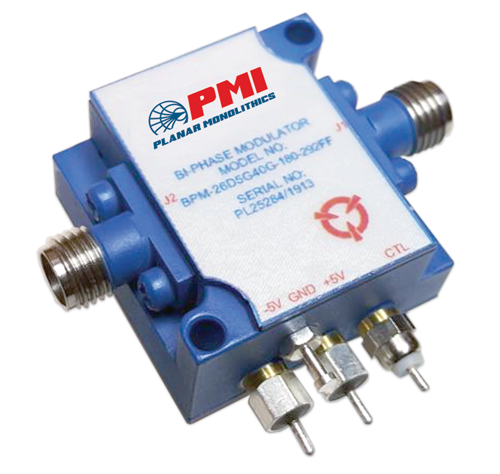

General Parameters: |
Status: | Active |
Frequency Range: | 26.0 to 40.0 GHz |
Frequency Min: | 26.0 GHz |
Frequency Max: | 40.0 GHz |
Phase States: | 0° / 180º |
Insertion Loss: | 8 dB Typ |
VSWR: | 2.0:1 goal, 3.0:1 Max |
Control Type: | TTL |
Impedance: | 50 Ohms |
Amplitude Balance: | ±4.0 dB Typ |
RF Connectors: | 2.92mm (F) |
Phase Shift Control Input: | TTL "0" = 0° TTL "1" = 180° |
Power Supply: | +5 VDC @ 75 mA Max -5 VDC @ 20 mA Max |
Size: | 1.0" x 1.0" x 0.5" |
Finish: | Painted Blue |
Switching Speed: | 100 ns Max |
Phase Variation: | ±40° Typ |
Power Handling: | 20 dBm Operational |
Environmental Ratings: |
Temperature (Operating): | -55 °C to +85 °C |
Temperature (Storage): | -65 °C to +125 °C |
Humidity: | Up to 90%, Non-Condensing |
Shock: | MIL-STD-202, Method 213B Cond. B |
Vibration: | MIL-STD-202, Method 204D Con.d B |
Altitude: | MIL-STD-202, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
