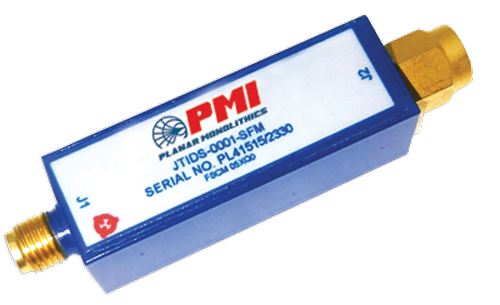

JTIDS-0001-SFM

Ultra-Small Band Reject Filter

Product Feature

Quantic PMI Model JTIDS-0001-SFM is an ultra-small band reject filter centered at 1.085 GHz. This filter rejects frequencies from 0.96 to 1.21 GHz and was specifically designed for Military JDITS applications. Package size is 1.4" x 0.5" x 0.5" with SMA female/male connectors.

Product Specifications

General Parameters:
Status: Active
Center Frequency, Fo: 1.085 GHz
Notch Bandwidth: 0.25 GHz
Passband Insertion Loss: 6 dB
Passband VSWR: 2.0:1
Rejection: -40 dBc @ 0.96 to 1.21 GHz
Size: 1.4" x 0.5" x 0.5"
Connectors In/Out: SMA (F/M)
Environmental Ratings:
Temperature: -40 ºC to +85 ºC
Non-Operating: -40 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
