| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Center Frequency, Fo: | 1.085 GHz |
|---|
| Notch Bandwidth: | 0.25 GHz |
|---|
| Passband Insertion Loss: | 6 dB |
|---|
| Passband VSWR: | 2.0:1 |
|---|
| Rejection: | -40 dBc @ 0.96 to 1.21 GHz |
|---|

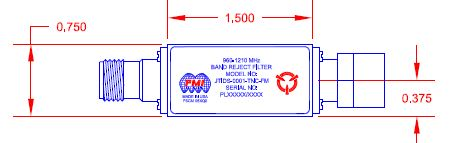

| Size: | 1.5" x 0.5" x 0.5" |
|---|
| Connectors In/Out: | TNC Female / Male |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 ºC to +85 ºC Operating |
|---|
| Non-Operating: | -40 ºC to +100 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
