MPC-20R2G21R2G-CD-LNF Active

Monopulse Circuit designed for beamforming applications.

  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/MPC_20R2G21R2G_CD_LNF_39580516_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/MPC_20R2G21R2G_CD_LNFMONOPULSECIRCUITINSIDE_636505683767565332_15122887_400.gif
Mechanical Outline Drawing

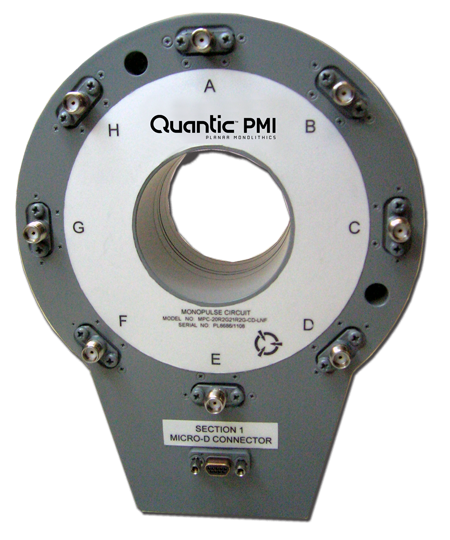

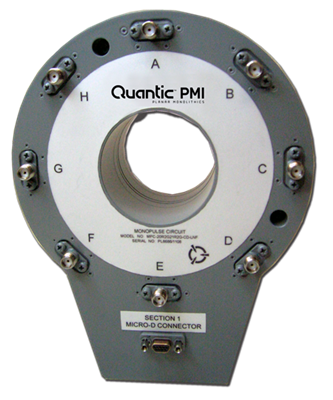

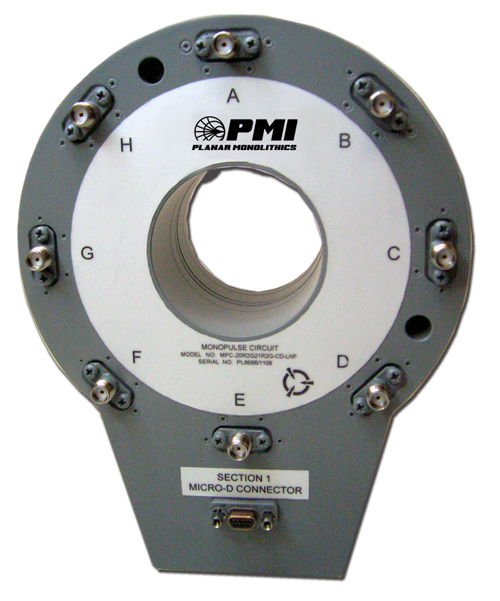

Quantic PMI Model No. MPC-20R2G21R2G-CD-LNFis a Monopulse Circuit designed for beamforming applications. This unit works over the 20.2 to 21.2GHz frequency range.  Low noise amplifiers are integrated directly onto all eight inputs and an output switch allows the selection of a 0 or 90° output.

Product Specifications

General Parameters:
Status: Active
Product Description: Quantic PMI Model No. MPC-20R2G21R2G-CD-LNFis a Monopulse Circuit designed for beamforming applications. This unit works over the 20.2 to 21.2GHz frequency range. Low noise amplifiers are integrated directly onto all eight inputs and an output switch allows the selection of a 0 or 90° output.
Item No.: 22
