SP24T - Absorptive Switch

Product Feature

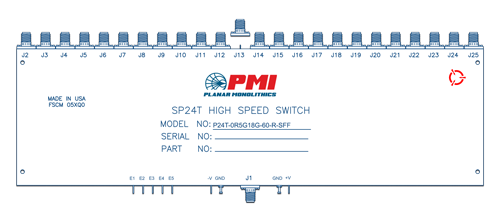

Quantic PMI Model No. P24T-10G31G-60-T-512-SFF-DEC is a single pole, twenty-four throw absorptive switch designed to operate over the 10.0 to 31.0 GHz frequency range.  This model is designed to maintain low insertion loss, high isolation, and fast switching speed.


Product Specifications

General Parameters:
Status: Preliminary
Frequency Min: 10 GHz
Frequency Max: 31 GHz
Reflective / Absorptive: Absorptive
Isolation: 60 dB Min
Insertion Loss: 12 dB Goal / 14 dB Max
Input Power: +23 dBm CW Max
Switching Speed: 100 ns Max
Control Signal: 5 BITS - TTL Logic
Power Supply: +5 V / -5 V
Connectors: 2.92mm Female
VSWR: 2.0:1 Max
Environmental Ratings:
Operating Temperature: -55 °C to +95 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202F, METHOD 103B COND. B
Shock: MIL-STD-202F, METHOD 213B COND. B
Vibration: MIL-STD-202F, METHOD 204D COND. B
Altitude: MIL-STD-202F, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202F, METHOD 107
