General Parameters: |
Status: | Active |
Frequency Min: | 1 GHz |
Frequency Max: | 18 GHz |
Insertion Loss (Typ): | 3.5 dB |
Isolation (Typ): | 65 dB |
Reflective / Absorptive: | Absorptive |
Switching Speed (Typ): | 100 ns |
Frequency: | 1.0 to 18.0 GHz |

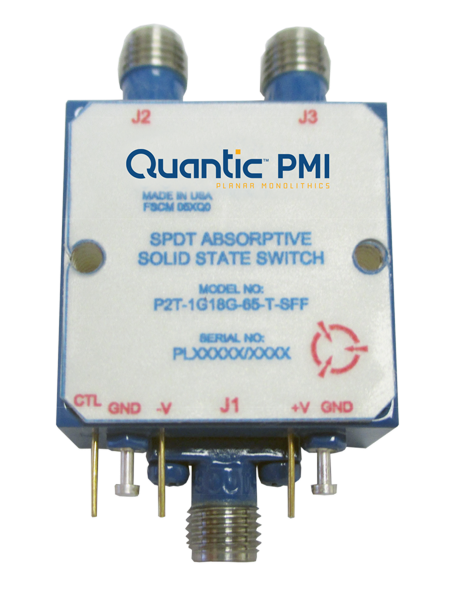

Configuration: | SP2T |
Isolation: | 65 dB Typ - Measured 80.8 dB |
Insertion Loss: | 3.5 dB Max - Measured 3.14 dB |
VSWR In/Out: | 2.0:1 Max - Measured 1.89:1 |
Input Power: | +30 dBm Max (Survival), +20 dBm Max (Operating) |
Switching Speed: | 100 ns Max - Measured 49.6 ns |
Impedance: | 50 O |
Control Signal: | Solder Pin, TTL Compatible |
Power Supply: | +5 VDC @ 100 mA Typ -15 VDC @ 100 mA Typ |
Connectors: | SMA (F) |
Size: | 1.0" x 1.0" x 0.4" |
Finish: | Painted Blue |
Environmental Ratings: |
Temperature (Operating): | -55 to +85 ºC |
Temperature (Storage): | -65 ºC to +125 ºC |
Humidity: | MIL-STD-202, Method 103B Cond B |
Shock: | MIL-STD-202, Method 213B Cond B |
Vibration: | MIL-STD-202, Method 204D Cond B |
Altitude: | MIL-STD-202, Method 105C Cond B |
Temperature Cycle: | MIL-STD-202, Method 107D Cond A |
