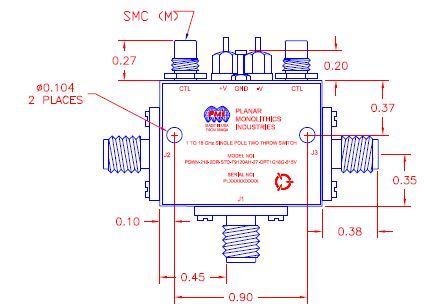

General Parameters: |
Status: | Preliminary |
Frequency Min: | 1 GHz |
Frequency Max: | 18 GHz |
Insertion Loss (Typ): | 3.5 dB |
Isolation (Typ): | 60 dB |
Reflective / Absorptive: | Reflective |
Switching Speed (Typ): | 50 nsec |
Frequency: | 1 TO 18 GHz |
Configuration: | SP2T |
Isolation: | 60 dB min |
Insertion Loss: | 3 dB max |
VSWR In/Out: | 1.8:1 typ, 2.0:1 max |
Input Power: | 1 Watt CW or Peak |
Survival Power: | 1 Watt Average, 75 Watts Peak, (1us maximum pulse width) |
Switching Speed: | 50ns max |
Control Signal: | Logic:, "0" = On (Low Loss), "1" = Off (Isolation) |
Power Supply: | +5V - 100 mA max -15V - 40 mA max |
Weight: | 0.75 oz |
Environmental Ratings: |
Temperature (Operating): | -55 ºC to +85 ºC |
Temperature (Storage): | -65 ºC to +125 ºC |
Humidity: | MIL-STD-202F, Method 103B Cond B |
Shock: | MIL-STD-202F, Method 213B Cond B |
Vibration: | MIL-STD-202F, Method 204D Cond B |
Altitude: | MIL-STD-202F, Method 105C Cond B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
