General Parameters: |
Status: | Preliminary |
Frequency: | 9.0 GHz to 10 GHz |
Frequency Min: | 9 GHz |
Frequency Max: | 10 GHz |
Insertion Loss (Typ): | 2.75dB max. |
Isolation (Typ): | 55dB min. |
Insertion Loss: | 2.75dB max. |
Isolation: | 55dB min. |
Reflective / Absorptive: | Reflective |
Switching Speed (Typ): | 30 nsec |
Configuration: | XFER / DPDT |
Input Power: | 1W CW max. |
VSWR In/Out: | 2.0:1 max. |
Switching Speed: | 30nsec max. |
Control Signal: | Single Line TTL |
Power Supply: | +5VDC @ 60mA typical, -12VDC @ 75mA typical |
Connectors: | SMA (F) |

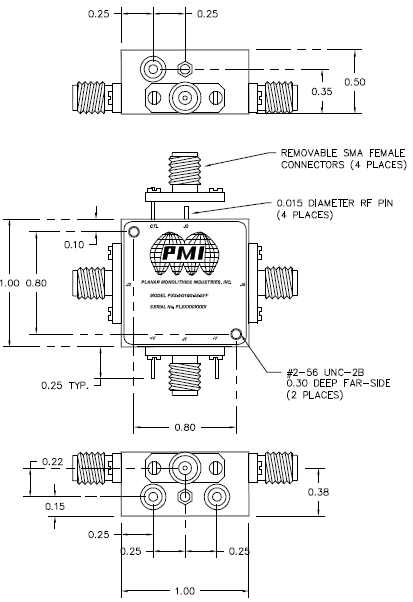

Size: | 1.0" x 1.0" x 0.5" |
Weight: | 1.4 oz. typical |
Environmental Ratings: |
Operating Temperature: | -55 to +85 ºC |
Non-Operating Temperature: | -65ºC to +125 ºC |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
