| General Parameters: |
|---|
| Type: | SDLVA |
|---|
| Status: | Active |
|---|
| Frequency Range: | 0.7 to 1.3 GHz |
|---|
| Frequency Min: | 0.7 GHz |
|---|
| Frequency Max: | 1.3 GHz |
|---|
| TSS: | -70 dBm typical |
|---|

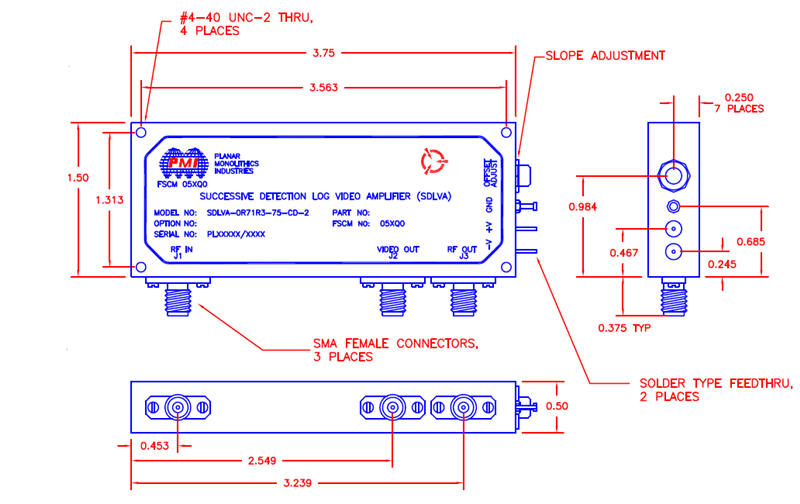

| Size: | 3.75" x 1.50" x 0.50" |
|---|
| Log Slope: | 40 mV/dB nominal |
|---|
| Log Range: | -70 to +5 dBm |
|---|
| Log Linearity: | ±0.8 dB typ., ±1.2 dB max. @ (-60 to 0 dBm)
±1.2 dB typ., ±1.5 dB max. @ (-65 to +5 dBm) |
|---|
| Rise Time: | 15 ns typ., 25 ns max. |
|---|
| Fall Time: | 15 ns typ., 30 ns max. |
|---|
| Settling Time: | 40 ns max. |
|---|
| Finish: | Gold Plated |
|---|
| VSWR: | 1.5:1 typ., 1.8:1 max. |
|---|
| Propagation Delay: | 10 ns max., 7 ns typ. |
|---|
| DC Offset: | 0.1 V nominal (Adjustable) |
|---|
| Dynamic Range: | 75 dB min. |
|---|
| Video Load: | 50 Ohms ± 10% |
|---|
| DC Power Supply: | +12 V to +15 V @ 200 mA
-12 V to -15 V @ 190 mA
*Note: Do not supply +V without -V supplied as well as this may destroy the unit |
|---|
| Input VSWR: | 1.5:1 typ., 1.8:1 max. |
|---|
| Log Video Output Coupling: | DC |
|---|
| Log Slope Variation with Temperature: | ±1 mV/dB typ. |
|---|
| Log Slope Variation with Frequency: | ±0.5 mV/dB typ. (Over 80 MHz RF Bandwidth) |
|---|
| Limited RF Output: | +5 dBm typ. |
|---|
| Maximum Log Voltage: | +5 dBm |
|---|
| Maximum RF Input Power: | +10 dBm CW |
|---|
| Minimum Log Voltage: | -70 dBm |
|---|
| Tangential Sensitivity: | -70 dBm typ. |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55°C to +85°C |
|---|
| Non-Operating Temperature: | -65°C to +100°C |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
