SSBP9D5G-7G-CD-SS Active

Suspended Substrate Bandpass Filter

Product Feature

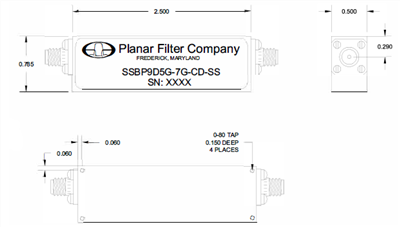

Quantic PMI Model SSBP9D5G-7G-CD-SS is a Suspended Substrate Bandpass Filter with a center frequency of 5.086 GHz; 3 dB bandwidth of 0.1 GHz; a maximum insertion loss of 1.8 dB maximum and a VSWR of 1.8:1. Precision machined housing and silver plated to provide the highest possible Q. Package size is 1.90" x 0.50" x 0.50" with SMA female connectors in and out.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 5.086 GHz
Insertion Loss: 1.8 dB Max (passband)
Bandwidth: 0.1 GHz @ 3 dB
3 dB Bandwidth: 0.1 GHz
Weight: 1 oz Typ
Rejection: -65 dB
Connectors: SMA (F)
Size: 1.90" x 0.50" x 0.50"
VSWR in the Pass Band: 1.5:1 Max
Insertion Loss (Pass Band): 1.8 dB Max
Environmental Ratings:
Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
Salt Fog: MIL-STD-202F, Method 107D Cond. A
Fungus: MIL-STD-810C, Method 508.2
