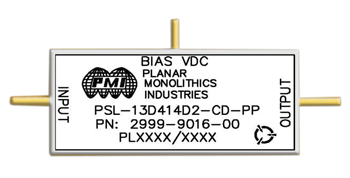

PMI Model Number PSL-13D414D2-CD-PP is a switch limiter operating in the 13.4 to 14.2 GHz frequency range. A +10mA bias will turn the switch off while a -10 mA bias will turn the switch into the insertion loss state. The integrated limiter will handle 20W having a 2usec pulse width.
Quick Links: (click the links below for additional information)
Product Feature
Test Data
Specifications:
Frequency Range | 13.4 to 14.2 GHz |
Maximum Peak Power | 75 W for 300 ns Pulse Width (At Switch) 20 W for 2 µs Pulse Width (At Limiter) |
Maximum Average Power | 10 W (At Switch) 1 W (At Limiter) |
Leakage Power | +20 dBm Max |
Switching Bias Conditions | +10 mA (High Loss) -10 mA (Low Loss) |
Insertion Loss | 1.3 dB Max |
Return Loss (-10mA Condition) | -15 dB Max |
Rise Time (Input CW Power < 1dB Compression Point) | 20 ns Max |
Fall Time (Input CW Power < 1dB Compression Point) | 20 ns Max |
Blanking Isolation | 40 dB Min |
Recovery Time (RF Power High to Low Within 1dB) | 100 ns Max |
Sealing | Hermetic |
Environmental Ratings:
Temperature: | -55 ºC to +100 ºC Operating |
-65 ºC to +125 ºC Non-Operating |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
