PMI offers a new line of low-cost, highly reliable, RF/Microwave amplifiers featuring a built in 115VAC, 60Hz power supply.  Other supplies are available which allow use outside of the USA including Europe and Japan.  Any of our standard amplifiers covering DC to 40GHz or your custom specified amplifier can be supplied.

Features:

  • 115VAC, 60Hz Internal Power Supply
  • 90 to 100VAC power supplies for use in Japan is available
  • 220VAC with European Plug/Cord is available (Must specify plug type)
  • Integrated On/Off Switch
  • Fuse Protected
  • Available in test bench configuration or portable housing configuration.
  • High Reliability
  • 6' Power Cord Supplied
  • Fast Delivery
  • Low-Cost

Click here to view our product flyer.

Part NumberStatusFrequency RangeFrequency MinFrequency MaxGainGain Flatness
PTB-60-2040-5R0-10-115VAC-292-FF *Active20.0 to 40.0 GHz20 GHz40 GHz GHz+60 dB typ±3.0 dB max
PTB-30-2040-5R0-10-220VAC-292FF *Active20.0 to 40.0 GHz20 GHz40 GHz GHz+30 dB typ±2.0 dB max
PTB-30-2040-5R0-10-115VAC-292FF *Active20.0 to 40.0 GHz20 GHz40 GHz GHz+30 dB typ±2.0 dB max
PTB-60-120-5R0-10-100VAC-SFFActive1.0 to 20.0 GHz1 GHz20 GHz GHz+60 dB Typ±3.0 dB Max
PTB-30-2040-5R0-10-100VAC-292FF *Active20.0 to 40.0 GHz20 GHz40 GHz GHz+30 dB typ±2.0 dB max
PTB-60-2040-5R0-10-220VAC-292FF *Active20.0 to 40.0 GHz20 GHz40 GHz GHz+60 dB typ±3.0 dB max
PTB-42-1G40G-12-292FF-DC12-100VACActive1.0 to 40.0 GHz1 GHz40 GHz GHz+40 dB typ±2.5 dB max

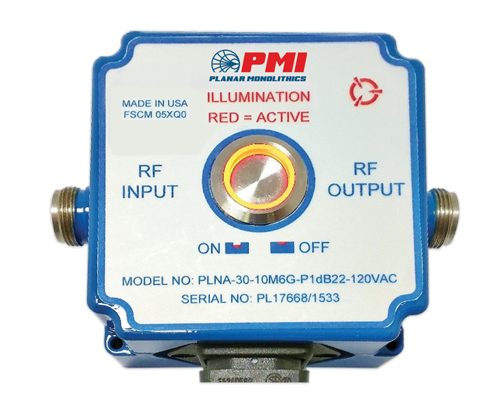

PLNA-30-10M6G-P1dB22-120VACActive0.010 to 6.0 GHz0.010 GHz6 GHz30 dB typ.±2.0 dB max.
PTB-30-1R06R0-1R5-22-100VAC-SFFPreliminary1.0 to 6.0 GHz1 GHz6 GHz GHz+30 dB typ±1.5 dB max
PTB-20-1040-5R0-20-220VAC-292FFPreliminary10.0 to 40.0 GHz10 GHz40 GHz GHz+20 dB min.±2.0 dB max
PTB-42-1G40G-12-292FF-DC12-220VACActive1.0 to 40.0 GHz1 GHz40 GHz GHz+40 dB Typ±2.5 dB Max
PTB-35-120-5R0-10-115-VAC-SFFActive1.0 to 20.0 GHz1 GHz20 GHz GHz35 dB typ.±3.0 dB typ.
PLNA-30-0R5G8G-P1dB13-115VACPreliminary0.5 to 8.0 GHz0.5 GHz8 GHz GHz30 dB typ.±1.0 dB max.
PTB-30-0R58R0-4R5-13-115VAC-NFFPreliminary0.5 to 8.0 GHz0.5 GHz8 GHz GHz+30 dB typ±1.0 dB max
PLNA-35-100M18G-P1dB24-120VACActive0.01 to 18.0 GHz0.01 GHz18 GHz GHz40 dB Typ±2.0 dB Typ
PTB-60-120-5R0-10-115-VAC-SFF Rev. B *Active1.0 to 20.0 GHz1 GHz20 GHz GHz60 dB typ.±3.0 dB typ.

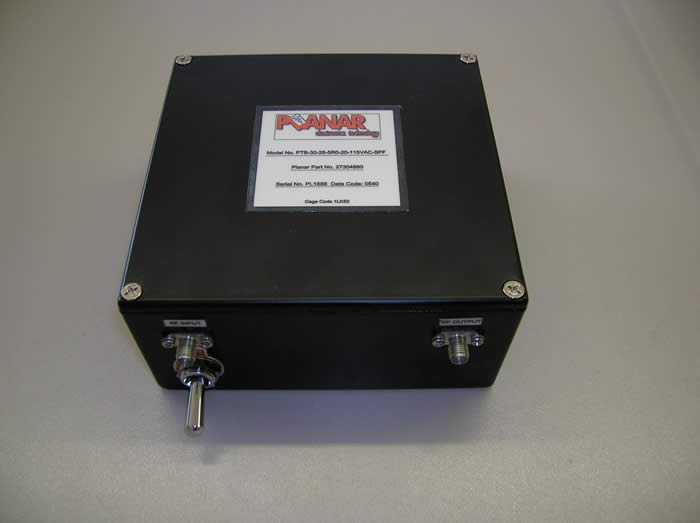

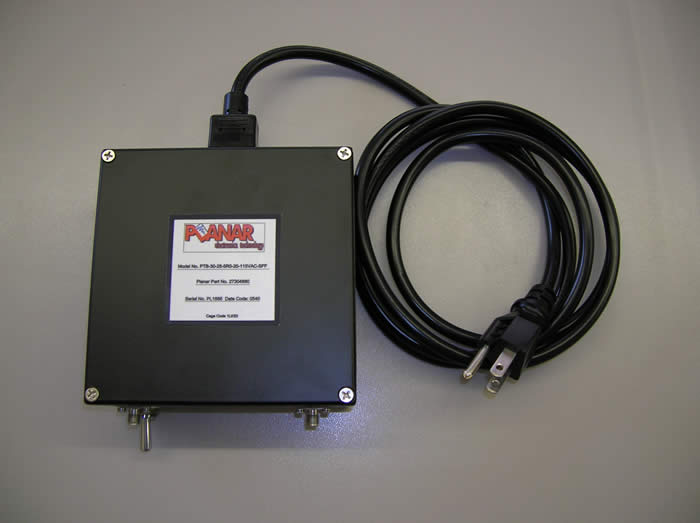

PTB-30-28-5R0-20-115VAC-SFFActive2.0 to 8.0 GHz2 GHz8 GHz GHz+30 dB min±1.5 dB max
PTB-20-1050-5R0-20-220VAC-240FFPreliminary10.0 to 50.0 GHz10 GHz50 GHz GHz+20 dB min.±2.0 dB max
PLNA-30-10M6G-5VDCPreliminary0.010 to 6.0 GHz0.01 GHz6 GHz30 dB typ±2.0 dB max
PTB-60-120-5R0-10-220VAC-SFFPreliminary1.0 to 20.0 GHz1 GHz20 GHz GHz+60 dB typ±3.0 dB max
PTB-42-1G40G-12-292FF-DC12 *Active1.0 to 40.0 GHz1 GHz40 GHz GHz40 dB typ.±2.5 dB typ.
PTB-27-0R1G6G-26-SFF-DC12-220VACPreliminary0.1 to 6.0 GHz0.1 GHz6 GHz27 dB typ.±1.5 dB typ.
PTB-30-6G18G-2R5-15-220VAC-SFFPreliminary6.0 to 18.06 GHz18 GHz GHz+30 dBm min.±3.0 dB max
PTB-20-6G18G-2R5-15-220VAC-SFFPreliminary6.0 to 18.06 GHz18 GHz GHz+20 dBm min.±3.0 dB max
PTB-30-618-5R0-20-115VAC-SFFActive6.0 to 18.0 GHz6 GHz18 GHz GHz+30 dB min±1.5 dB max
PTB-10-6G18G-2R5-15-220VAC-SFFPreliminary6.0 to 18.06 GHz18 GHz GHz+10 dBm min.±3.0 dB max

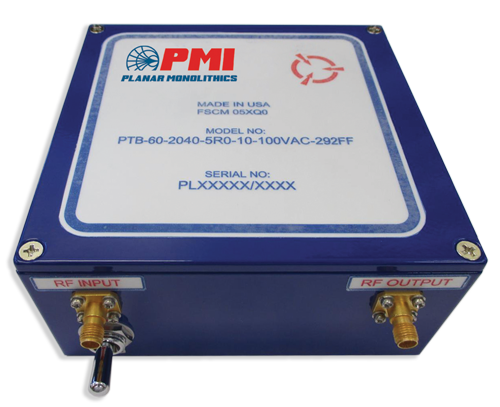

PTB-60-2040-5R0-10-100VAC-292FF *Active20.0 to 40.0 GHz20 GHz40 GHz+60 dB Typ±3.0 dB Max
PTB-30-0R54-5R0-20-115VAC-SFF
-
0.5 – 4.0GHz0.5 GHz4 GHz+30dB±1.5 dB Max

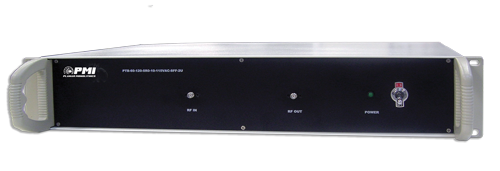

PTB-60-120-5R0-10-115VAC-SFF
-
1.0 – 20.0 GHz1 GHz20 GHz+60dB Typ.±3.0dB Typ.
PTB-30-0R12-5R0-20-115VAC-SFF
-
0.1 – 2.0GHz0.1 GHz2 GHz+30dB±1.5 dB Max
