PMI offers a variety of limiters covering the DC to 40 GHz frequency range.  PMI's limiters offer low loss, high speed along with low leakage levels and high peak power handling. If you do not see exactly what you need, please e-mail your requirement to sales@pmi-rf.com so we can propose an instant solution.

Features:

  • DC to 40 GHz Models Available
  • Surface Mount and Connectorized
  • Hermetic Sealing is Available
  • Military Screened and Qualified Available
  • Space Screened and Qualified Available

Note: Other PMI Limiters can be seen by visiting the links below:

http://www.planarmonolithics.com/toc/limiters.htm

Part NumberStatusFrequency MinFrequency MaxInsertion LossInput/Output VSWRInput Power

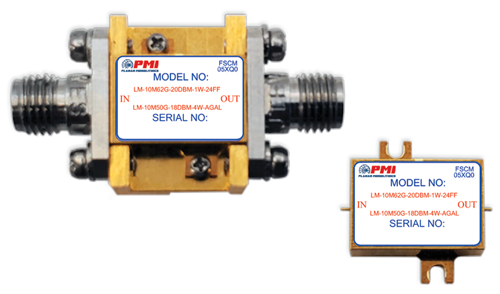

LM-10M62G-20DBM-1W-24FFActive10 MHz62 GHz10 MHz to 18 GHz = 1.50 dB Max
18 to 40 GHz = 2.30 dB Max
40 to 50 GHz = 2.50 dB Typ
50 to 62 GHz = 4.00 dB Typ
10 MHz to 18 GHz = 1.80:1 Max
18 to 40 GHz = 2.0: 1 Max
40 to 50 GHz = 2.2:1 Max
50 to 62 GHz = 3.0:1 Typ
10 Watts Peak Max (20 MHz to 1 GHz)
6 Watts Peak Max (4 to 8 GHz)
4 Watts Peak Max (12 to 18 GHz)
(PW 1 µs, 1 % Duty Cycle)
LM-10M37G-15DBM-10W-AGALActive0.01 GHz37.0 GHz0.01 to 8 GHz = 1.00 dB Max
8 to 18 GHz = 2.00 dB Max
18 to 30 GHz = 2.70 dB Max
30 to 37 GHz = 4.30 dB Max
1.8:1 Max50 Watts Peak Max (0.02 to 12GHz)
40 Watts Peak Max. (18GHz)
(1µs Pw, 1% Duty Cycle)
LM-10M2D5G-100CW-1KWP-SFF-HERMPreliminary0.01 GHz2.5 GHz0.5 dB TYP.1.3:1 Max100 watts CW Max (Notes 1,2), 1 kW peak (1% duty cycle, 1 µs Max pulse width) (Notes 1, 2, 3)
LM-150M5G-200CW-2KWPK-AGALActive0.15 GHz5 GHz2.00 dB Max. (0.15 to 0.3 GHz)
1.50 dB Max. (0.3 to 5 GHz)
1.70:1 Max.200 Watts CW (+53 dBm) Typ
2kW Peak Power (+63 dBm) Typ
(25 µs PW, 5% Duty Cycle)
LM-10M35G-15DBM-4W-292FFActive0.01 GHz35.0 GHz1.3 - 4.0 dB2.0:125 to 4 Watts CW
LM-10M40G-15DBM-4W-AGALActive0.01 GHz40 GHz1 to 3.20 dB2.0:14 - 25 Watts
LM-10M50G-20DBM-1W-24FFActive0.01 GHz50.0 GHz0.01 to 18 GHz = 1.50 dB Max.
18 to 40 GHz = 2.30 dB Max.
40 to 50 GHz = 2.50 dB Max
2.01 Max10 Watts Peak Max (0.02 to 1 GHz)
6 Watts Peak Max. (4 GHz to 8GHz)
4 Watts Peak Max. (12GHz to 18 GHz)
(Pw 1 µs, 1 % Duty Cycle)
LM-10M50G-18DBM-4W-24FFActive0.01 GHz50 GHz0.01 to 18 GHz = 1.50 dB Max
18 to 40 GHz = 2.20 dB Max
40 to 50 GHz = 3.40 dB Max
2.0:1 Max20 Watts Max
(Pw 1µs, 1% Duty Cycle) Tested up to 18 GHz
(Pw 10µs, 1% Duty Cycle) Tested up to 8 GHz
16 Watts Max at 18 GHz ( Pw 10µs, 1% Duty Cycle)

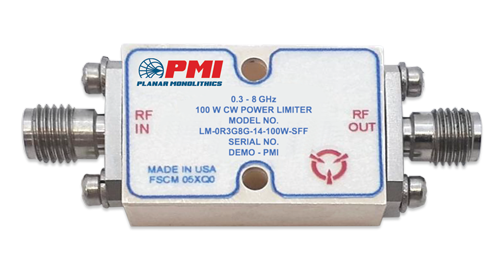

LM-0R3G8G-14-100W-SFFActive0.3 GHz8 GHz2.20 dB Max2:1 Max+50 dBm CW
LM-26G40G-14-20W-292FF Rev. BActive26.5 GHz40 GHz4.0 dB Max2.0:120 Watts Peak (40% DC / 900 kHz PRF)
LM-2G4G-15-100W-SFFActive2.0 GHz4.0 GHz1.5 dB Max2:1 Max4 W CW Min @ 85°C. 1000 W Peak Min. @85°C (1 us Pulse Width, 0.1% Duty Cycle)
LM-10M6G-15-2D5W-SFFActive0.01 GHz6.0 GHz (Usable to 10.0 GHz)2 dB max.1.8:1 max.2.5 W (+34 dBm) CW max.
Peak Power 3 W (+35 dBm), Pulse 1 usec 1% Duty Cycle

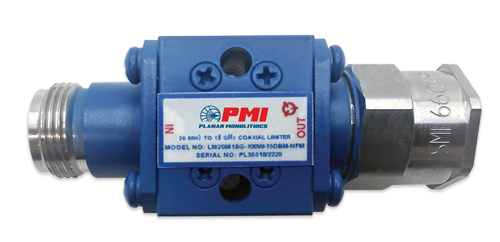

LM-20M18G-100W-15DBM-NFMPreliminary0.02 GHz18.0 GHz2 dB goal, 2.5 dB max.2.0:1 max. (@ -10 dBm Input)100 W CW max.
All Temperatures (-55°C to +85°C)
1 kW Peak (1% Duty Cycle, 1 usec Pulse Width)
100 W Peak (10% Duty Cycle, 10 usec Pulse Width)
LM-50M4G-16-1W-SFFActive0.05 GHz4.0 GHz (Usable to 11.0 GHz)1.7 dB max.1.80:1 max.1 W (+30 dBm) CW max. (Usable to 4 W max.)
Peak Power 32 W Peak (+45 dBm), Pulse 1 usec, Duty Cycle 0.1%
LM-910D5-100W-1KWP-SFMPreliminary9.0 GHz10.5 GHz2 dB max.2.0:1 max. (At -10 dBm Input)100 W CW max.
All Temperatures (-55°C to +85°C)
1 kW Peak (1% Duty Cycle, 1 usec Pulse Width)
100 W Peak (10% Duty Cycle, 10 usec Pulse Width)
LM-10M12G-20-10W-SFFActive0.01 GHz12.0 GHz2 dB max.2:1 max.+40 dBm CW max.
Peak Power 100 W, Pulse 1 us 1% Duty Cycle
LM-10M12G-20-10W-SFF-OPTION-17GActive0.01 GHz17.0 GHz2.3 dB max.2:1 max.+40 dBm CW max.
Peak Power 100 W, Pulse 1 us 1% Duty Cycle
LM-1G2G-19-200W-SFFActive1.0 GHz2.0 GHz1.3 dB max.2:1 max.+53 dBm CW max. (200 W)
+55 dBm Peak 3 ms Pulse, 10% Duty Cycle (320 W)
LM-1G18G-15-10W-500WP-SFFPreliminary1.0 GHz18.0 GHz2.5 dB max.2.0:1 max.10 W CW max.
LM-300M1G-21-360W-SFFActive0.3 GHz1.0 GHz
-
2:1 max.+54 dBm CW max. (250 W)
Peak Power 360 W, Pulse 2 ms, 10% Duty Cycle
LM-20M20G-18-20WP-5W-MAHActive0.02 GHz20.0 GHz2.5 dB Max2.0:1 Max20 W Pulsed, 100 µs Pulse Width, 10% Duty Cycle, 5 W CW
LM-218-14-200W-SMF *Active2.0 GHz18.0 GHz2.0 dB max. @ Pin = -10 dBm2.0:1 max.1 W CW
LM-818-C3-1Preliminary8.0 GHz18.0 GHz1.7 dB typ., 1.9 dB max.2.0 max.3 W max.
LM-0D52-C3-1Preliminary0.5 GHz2.0 GHz0.5 dB max.1.5 max.3 W max.
LM-28-C3-1Preliminary2.0 GHz8.0 GHz1.0 dB typ., 1.2 dB max.2.0 max.3 W max.
LM-2G18G-18-20W-1KWP-SFFActive2.0 GHz18.0 GHz2.6 dB Max (@ -10 dBm Input Power)2.01 Max (@ -10 dBm Input Power)+43 dBm CW Max
LM-100M18-2D5W-12DBM-SFFPreliminary0.1 GHz18.0 GHz2.5 dB max.2.0:1 max.2.5 W CW max.
LM-3G4G-10-33DBM-12VPreliminary3.0 GHz4.0 GHz0 dB typ.2.0:1 max.+33 dBm CW
LM-20M18G-15DBM-QFNPreliminary0.02 GHz18.0 GHz2.6 dB max.2.0:1 typ.+15 dBm CW max.
LM-9G9R5G-PIN-20WPreliminary9.3 GHz9.5 GHz2.0 dB2.0:1 max.300 W (+54.78 dBm) max.
Pulse Width 1 TO 13 us
Duty Cycle 6% max.
LM-10M18G-16-20W-AL-OPT8G12GPreliminary8.0 GHz12.0 GHz1.8 dB max.1.8:1 typ.20 W min.
LM-10M18G-16-20W-ALActive0.01 GHz18.0 GHz2.0 dB Max @ -10 dBm Input Power2.0:1 Max @ -10 dBm Input Power-10 dBm
LM-20M18G-100W-15DBMActive0.02 GHz18.0 GHz2.60 dB Max @ -10 dBm Input Power2.0:1 Max @ -10 dBm Input Power100 W CW Max @ -55°C to +85°CW, 1 KW Peak Min
@ +85 °C (1 µs Pulse Width, 0.1% Duty Cycle)
100 W (1 µs, 1% Duty Cycle, 10 KHz)
100 W (10 µs, 0.1% Duty Cycle, 100 Hz)
100 W (1 µs, 0.1% Duty Cycle, 1 KHz)
100 W (40 µs, 10% Duty Cycle, 2.5 KHz)
LM-20M15G-100W-15DBMActive0.01 GHz15.0 GHz1.60 dB max. @ -10 dBm Input Power2.0:1 Max @ -10 dBm Input Power100W CW Max @ -55°C to +85°C
1KW Peak Min +85°C (1 us Pulse Width, 0.1% duty cycle
100W (1 us, 1% duty cycle, 10 KHz
100W (10 us,0.1% duty cycle, 100 hz
100W (1 us, 0.1% duty cycle, 1 KHz)
100W(40 us, 10% duty cycle, 2.5KHz)
LM-20M18G-80W-15DBMActive0.02 GHz18.0 GHz2.60 dB Max @ -10 dBm Input Power2.0:1 Max @ -10 dBm Input Power80 W CW Max @ -55 °C to +85 °C
1 KW Peak min. +85 °C (1 µs Pulse Width, 0.1% Duty Cycle)
100 W (1 µs, 1% Duty Cycle, 10 KHz)
100 W (10 µs, 0.1% Duty Cycle, 100 Hz)
80 W (1 µs, 0.1% Duty Cycle, 1 KHz)
80 W (40 µs, 10% Duty Cycle, 2.5 KHz)
LM-30M2G-5CW-1KWP-SFFActive0.03 GHz2.0 GHz0.7 dB goal, 1 dB Max @ 0 dBm Input2.0:1 Max @ 0 dBm Input5 W CW Min
1 kW Peak (0.1% Duty Cycle, 1 µs Max Pulse Width)
LM-4G5G-1W-SFFPreliminary4.0 GHz5.0 GHz1 dB max.1.5:1 max.1 W max.
LM-4G5G-1W-PINPreliminary4.0 GHz5.0 GHz1 dB max.1.5:1 max.1 W max.
LM-4G5G-1W-SFMActive4.0 GHz5.0 GHz1 dB max.1.5:1 max.1 W max.
LM-8G12G-1R5-SFMPreliminary8.0 GHz12.0 GHz1.5 dB max.1.8:1 max.Average: 1 W max.
Peak Power: 100 W max.
PSMT-LM-20M6GPreliminary0.02 GHz6.0 GHz1.0 dB max.1.4:1 max.10 W
LM-2G6G-3W-SMFPreliminary2.0 GHz6.0 GHz1.2 dB max., 1.0 dB goal2:1 max.3 W
LM-2G6R5G-3W-SMFActive2.0 GHz6.5 GHz1.2 dB max., 1.0 dB goal2:1 max.3 W
LM-10M14G-100W-1KWP-SFF-OPT17Active1.0 GHz7.0 GHz2.0 dB Typ2.0:1 Max (@ -10 dBm Input)100 W CW Max, 1.0 to 7.0 GHz
All Temperatures (-55 ºC to +85 ºC)
1 KW Peak (1% Duty Cycle, 1 µs Pulse Width
100 W Peak (10% Duty Cycle, 10 µs Pulse Width)
LM-10M14G-100W-1KWP-SFFActive0.01 GHz14.0 GHz2.0 dB typ.2.0:1 Max (@ -10 dBm Input)100 W CW Max, 0.01 to 14.0 GHz
All Temperatures (-55 ºC to +85 ºC)
1 KW Peak (1% Duty Cycle, 1 µs Pulse Width
100 W Peak (10% Duty Cycle, 10 µs Pulse Width)
LM-10M9G-100CW-1KWP-SFFActive0.01 GHz9.0 GHz2 dB Typ2.0:1 Max (At -10 dBm input)100 W CW Max, 0.01 to 8.0 GHz
80 W CW Max at 9.0 GHz
50 W CW Max 0.01 to 9.0 GHz
All Temperatures (-55 °C to +85 °C)
LM-2G18G-10-100W-SFFPreliminary2.0 GHz18.0 GHz4.02.0:11 Watt CW Max.
LM-30M3G-1-PE2-HERM-292MFPreliminary0.03 GHz3.0 GHz1.2 dB max.1.5:1 max.5 W CW @ +25°C
LM-400M4G-20CW-220WP-SFF-PE2Preliminary0.4 GHz4.0 GHz1.2 dB typ.1.5:1 typ.20 W CW
LM-0580-10-1W-SHS-1-MPreliminary0.5 GHz8 GHz2.0 dB max., 1.5 dB typ.2.0:1 max1 Watt CW, 100 Watts Peak, 1 us Pulse Width, 0.1% Duty Cycle, Derated to 20% @ 125 ºC
LM-0R4G5G5G-20W-SFF-OPT400M500MPreliminary0.4 GHz0.5 GHz1.0dB typ2.0:1 max20 Watts CW max, 200W Peak, 10% Duty Cycle, 1uS PW
LM-10G-3-26DBM-12VActive10 GHz10 GHz4.0 dB typ2.0:1-45 to +26dBm CW
LM-1G18G-15-25W-SMF-OPT1G4GPreliminary1.0 GHz4.0 GHz1.0 dB2.0:1 max10 Watts CW
LM-1G18G-15-25W-SMF-OPT4G8GPreliminary4.0 GHz8.0 GHz1.5 dB2.0:110 Watts CW
LM-1G2G-4CW-1KWP-SMF-OPT10M6GActive0.01 GHz6.0 GHz2.0 dB Max - Measured 1.68 dB2.0:1 max4 W CW
LM-1G2G-4CW-1KWP-SMF-OPT2G4GActive2 GHz4 GHz1.2 dB Max.2.0:1 max40 W CW (46 dBm)
LM-1K2G-5CW-SFF-HERMPreliminary0.001 GHz2 GHz0.8 dB max.1.3:1 max5 W CW min.
LM-1K2G-5CW-SFF-HERM-SMPreliminary0.001 GHz2 GHz0.8 dB max.1.3:1 max5 W CW min.
LM-5D25G5D75G-18DBM-50W-PPPreliminary5.25 GHz5.75 GHz1.0dB max1.5:1 max50W Peak max @ 40% Pulse
LM-6D7G7D9G-30W-SMFPreliminary6.7 GHz7.9 GHz1.1 dB Max1.5:1 max30 Watts CW Max
LM-6G18G-15-10W-SFF-OPT1114Preliminary11 GHz14 GHz
-
-
20 Watts (43 dBm)
LM-6G18G-15-10W-SFF-OPT812Preliminary8 GHz12 GHz1.5 dB Typ @ 0dBm1.8:110 Watts CW
LM-10M2D5G-100CW-1KWP-SFF-OPT3G3D7GPreliminary3.0 GHz3.7 GHz2.0 dB1.9:1100 watts CW
LM-10M2D5G-100CW-1KWP-SFF-THPreliminary0.01 GHz2.5 GHz0.5 dB1.3:1 max100 watts CW
LM-17G18G-10-350W-SFF-VFActive17 GHz18 GHz3.0 dB Typ1.8:1 typ350 Watts, 20usec, 6% Duty Cycle (Peak)
LM-1G2G-N15-33DBM-12VActive1 GHz2 GHz2.0dB max2.0:1 max+33 dBm CW max.
LM-1R2G1R4G-20-100W-SMPreliminary1.2 GHz1.4 GHz0.6 dB1.4:1 max100 W Peak (1.2 ms Pulse Width, 20% Duty Cycle)
LM-218-10-1W-SHS-1-MPreliminary2 GHz18 GHz2.0 dB max., 1.5 dB typ.2.0:1 max1 W CW, 100 W Peak, 1 us Pulse, 0.1% Duty Cycle Derated to 20% at 125°C
LM-218-14-200W-SFF-OPT10M18GPreliminary0.01 GHz18 GHz2.0 dB max.2.0:1 max1 W CW
LM--218-14-200W-SMFPreliminary2 GHz18 GHz2.0 dB Max2.0:1 max1 W CW
LM-218-14-200W-SMF-OPT1114Preliminary11 GHz14 GHz
-
-
20 Watts (43 dBm)
LM-218-14-200W-TUB-SFFPreliminary2 GHz18 GHz2.0 dB Max2.0:1 max1 W CW
LM-2D5G3D5G-12V-SFFPreliminary2.5 GHz3.5 GHz3 dB max.1.5:1 max+30 dBm (1W) CW max.
LM-32G36G-14-20W-292FFPreliminary32 GHz36 GHz2.0 dB max2.0:120 W (Peak)
LM-35D5G-14-20W-292FFActive35.5 GHz35.5 GHz3.0 dB Max2.0:120 W (Peak)
LM-500M8G-2-33DBM-12VActive0.5 GHz8 GHz2.0 dB max2.0:1 max+33dBm CW max.
LM-500M8G-2-33DBM-12V-OPT2G4GActive2 GHz4 GHz2.0 dB max2.0:1 max+33dBm CW max.
LM-618-10-1W-SHS-1-FPreliminary6 GHz18 GHz2.0 dB max., 1.5 dB typ.2.0:1 max1 W CW, 100 W Peak, 1 us Pulse, 0.1% Duty Cycle Derated to 20% at 125°C
LM-80M600M-C3-1Active0.08 GHz0.6 GHz1.2 dB max1.5:1 max5 Watts CW @ +25ºC (Peak)
LM-8G18G-7-33DBM-12VActive8 GHz18 GHz2.0 dB max2.0:1 max+33dBm CW max.
LM-0118-10-1W-SHS-2-MActive0.1 GHz18 GHz2.0dB max, 1.5dB typ2.0:1 max100 W Peak
LM-0518-10-1W-SHS-2-FMPreliminary0.5 GHz18 GHz2.0dB max., 1.5dB typ.2.0:1 max12 W max.
LM-0518-10-1W-SHS-2-FM-OPT12Preliminary0.5 GHz18 GHz2.0dB max., 1.5dB typ.2.0:1 max12 W max.
LM-0518-10-1W-SHS-2-MActive0.5 GHz18 GHz2.0dB max., 1.5dB typ.2.0:1 max100 W (Peak)
LM-12-20-5W-2-MPreliminary1 GHz2 GHz1.0 dB Max2.0:14 Watts
LM-218-10-300PW-SHS-2Active2 GHz18 GHz2.5 dB Maximum2.0:1+10 dBm
LM-218-14-200W-SFF-OPT10M20G-SMTPreliminary0.01 GHz20 GHz2.0 dB max.2.0:1 max1 W CW
LM-26G40G-14-20W-292FMActive26.5 GHz40 GHz4.0 dB Max2.0:120 W
LM-2G18G-2D8-33DBM-12VActive2 GHz18 GHz2.0 dB max2.0:1 max+33dBm CW max.
LM-30M8G-0DB-33DBM-12VPreliminary0.03 GHz8.0 GHz2.0 dB2.0:1 max+33 dBm CW max.
LM-30M8G-2DB-33DBM-12VPreliminary0.03 GHz8 GHz2.0 dB max2.0:1 max+33 dBm CW max.
LM-32G36G-14-20W-SMTActive32 GHz36 GHz2.0 dB Max2.0:120 W (Peak)
LM-3R15G3R25G-1-PE2-HERMPreliminary3.15 GHz3.25 GHz1.0 dB max. @ ≤-20 dBm
-
-
LM-400M4G-20CW-220WP-SMFPreliminary0.4 GHz4.0 GHz1.2 dB typ1.5:1 typ20 W CW
LM-500M8G-12-33DBM-12VActive0.5 GHz8 GHz2.0 dB max.2.0:1 max+33 dBm CW max.
LM-618-10-1W-SHS-1-MActive6 GHz18 GHz2.0 dB Max, 1.5 dB Typ2.0:1 max1 W CW, 100 W Peak, 1 us Pulse, 0.1% Duty Cycle Derated to 20% at 125°C
LM-6D7G7D9G-30W-SFF-OPT812Preliminary8 GHz12 GHz1.8 dB max.1.8:1 max50 W min.
LM-80M600M-C3-1-OPTSFMPreliminary0.08 GHz0.6 GHz1.2 dB max.1.5:1 max.5 Watts CW @ +25ºC (Peak)
LM-161605-10W1-HPRActive16 GHz16.5 GHz1.5 dB Max17dB typ160W peak, 40W Average
LM-26G40G-14-20W-292FFActive26.5 GHz40 GHz4.0 dB Max2.0:120 W (Peak)
LM-30M3G-C3-1Active0.03 GHz3 GHz1.2 dB Max1.5:1 Max5 W CW @ +25°C (Peak)
LM-30M3G-C3-1-PE2-HERMActive0.03 GHz3.0 GHz1.2 dB1.5:1 max5 W CW @ +25°C (Peak)
LM-32D5G33D5G-14-20W-292FFPreliminary32.5 GHz33.5GHz4.0 dB Max2.0:120 W (Peak)
LM-0518-10-1W-SHS-1-SMFActive0.5 GHz18.0 GHz2.0 dB2.0:1 max1 Watt CW, 100 Watts
LM-0518-10-1W-SHS-2-FActive0.5 GHz18 GHz2.0 dB Max, 1.5 dB Typ2.0:1 max100 W (Peak)
LM-1G2G-4CW-1KWP-SFFPreliminary1 GHz2 GHz0.7 dB Max2.0:1 Max @ -10 dBm Input4 W CW Min, 1 kW Peak (1% Duty Cycle, 1 µs Max Pulse Width)
LM-20M80M-10-20WActive0.025 GHz0.08 GHz1.5dB max, 0.5dB typ2.0:1 maxCW In-Band 5 to 10 Watts, CW Out of Band 20 Watts max
LM-218-14-200W-SMF-HERM *Active2 GHz18 GHz2.0 dB Maximum2.0:1 max1 W CW
LM-2G8G-13-5W-SFF *Active2 GHz8 GHz1 dB Typ2.0:1 max5 Watts CW Max
LM-0518-10-1W-SHS-1-MActive0.5 GHz18 GHz2.0 dB Max, 1.5 dB Typ2.0:1 max1 Watt CW, 100 Watts
LM-18G40G-SMT-1Active18 GHz40 GHz4.0 dB Max2.0:12 W

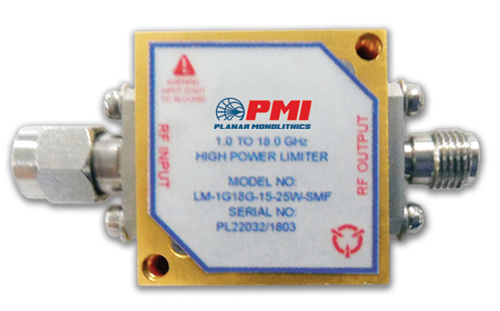

LM-1G18G-15-25W-SMFActive1 GHz18 GHz2.5 dB Max2.0:1 max25 Watts CW Max
LM-26G40G-14-20W-292MMActive26.5 GHz40 GHz4.0 dB Max2.0:120 W (Peak)
LM-2G18G-10-1W-SHS-1-MActive2.0 GHz18.0 GHz2.0 dB2.0:1 max1 W CW, 100 W Peak, 1 us Pulse, 0.1% Duty Cycle Derated to 20% at 125°C
LM-500M8G-5-33DBM-12VActive0.5 GHz8.0 GHz2.0 dB2.0:1 max+33 dBm CW max.
LM-6D7G7D9G-30W-SFFActive6.7 GHz7.9 GHz1.1 dB Max1.5:1 max30 Watts CW Max - See Graph
LM-1G2G-4CW-1KWP-SMFActive1 GHz2 GHz0.7 dB Max2.0:1 Max4 W CW Max, 1 kW Peak (1% Duty Cycle,1 µs Max Pulse Width)
LM-218-14-200W-SMF-OPT10M18GActive0.01 GHz18 GHz2.0 dB max.2.0:1 max1 Watt CW
LM-0518-10-1W-SHS-1-SFMActive0.5 GHz18.0 GHz2.0 dB2.0:1 max1 Watt CW, 100 Watts
LM-0518-10-1W-SHS-2-M-1218 *Active12 GHz18 GHz2.0dB max., 1.5dB typ.2.0:1 max100 W (Peak)
LM-100M20G-18-10W-SFFActive0.1 GHz20 GHz2 dB Max2.0:1 Max10 W Pulsed, 100 us Pulse Width, 10% Duty Cycle, 1 W CW
LM-1M500M-C3-1Active0.001 GHz0.5 GHz0.9 dB Max1.5:1 max100 W, 1 us Pulse Width, 1% Duty Cycle or 2 W CW @ +25°C
LM-400M2G-20-1W-SFFActive0.4 GHz2.0 GHz0.7 dB max. - Measured 0.69 dB2.0:1 max1 W CW Max.
3 W Peak Max (1 µs pulse width, 0.1% duty cycle)
LM-10M2D5G-100CW-1KWP-SFFActive0.01 GHz2.5 GHz0.5 dB Typ1.3:1 max100 watts CW Max (Notes 1,2), 1 kW peak (1% duty cycle, 1 µs Max pulse width) (Notes 1, 2, 3)
LM-10M2D5G-100CW-1KWP-TNCFMPreliminary0.01 GHz2.5 GHz0.5 dB Typ1.3:1 max (@ -10 dBm input)100 watts CW Max (Notes 1,2), 1 kW peak (1% duty cycle, 1 µs Max pulse width) (Notes 1, 2, 3)
LM-10M2D5G-100CW-1KWP-TNCFM-HERMPreliminary0.01 GHz2.5 GHz0.5 dB Typ1.3:1 max (@ -10 dBm input)100 watts CW Max (Notes 1,2), 1 kW peak (1% duty cycle, 1 µs Max pulse width) (Notes 1, 2, 3)
LM-18G40G-18-1W-292FF *Active18 GHz40 GHz4.0 dB Max2.1:11 Watt CW Max
LM-1G18G-15-25W-SFFActive1 GHz18 GHz2.5 dB Max2.0:1 max25 W CW Max - Measured 45 dBm (31.6 W)
LM-6G18G-15-10W-SFF *Active6 GHz18 GHz2.5 dB Typ @ 0 dBm1.8:110 W CW (Peak)
PLA-14D65G15G35G-20DB-SFF-250WActive14.65 GHz15.35 GHz3.59 dB Max2.0:1 Max125 Watts Peak having a pulse width of 40 µs and an average power of 12.5 Watts
LM-100M20G-18-10W-SFF-MAHActive0.1 GHz20.0 GHz3 dB Max2.0:1 Max10 W Pulsed, 100 µs Pulse Width, 10% Duty Cycle, 1 W CW
LM-0518-10-1W-SHS-1-F *Active0.5 GHz18 GHz2.0 dB Max, 1.5 dB Typ2.0:1 Max1 Watt CW, 100 Watts Peak, 1 µs Pulse,
0.1% Duty Cycle, Derated to 20% at 125 ºC
LM-1G18G-15-3W-500WP-SFFActive1.0 GHz18.0 GHz2.5 dB2.0:1 Max3 W CW
LM-1G18G-16-4W-SMFActive1.0 GHz18.0 GHz2.3 dB2.0:1 Max4W CW, 100W Peak (1 us Pulse Width, 0.1% Duty Cycle)
