Broadband, High IP, Low Noise Amplifiers for Signal Intercept (SIGINT) and Direction Finding (DF) systems.
If you do not see exactly what you need, please email your requirement to sales@quanticpmi.com so we can propose an instant solution.

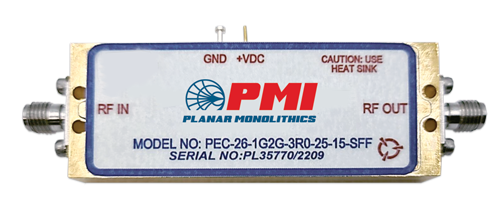

Quantic PMI has designed and manufactured a family of low noise, military grade, amplifiers that are used in Signal Intercept (SIGINT) and Direction Finding (DF) system applications. These amplifiers cover communication bands ranging from 0.03 to 2 GHz.
These amplifiers offer the following features:
- Broad bandwidths covering 0.03 to 2 GHz
- Low Noise Figure (<3.0 dB)
- High OP1dB (>25 dBm)
- Very High OIP2 (>55 dBm)
- Very High OIP3 (>45 dBm)
- Operational DC Voltages (+12 to +28 VDC)
- Can be supplied with optional AC to DC Voltage Supply for Airborne Application (85 to 264 VAC, 47 to 500 Hz)
- Small and custom package configurations
- Built for Military Applications
Environmental Specification:
- Built to meet temperature testing IAW MIL-STD-810F, Methods 501.4
- Built to meet altitude testing IAW MIL-STD-810F, Method 500.4
- Operating Altitude: Sea-Level to >35,000 Feet
- Operating Temperature: -55 to +85°C
- Built to meet humidity testing IAW MIL-STD-810F, Method 507.4
- Built to meet vibration testing IAW MIL-STD-810F, Method 514.5
- All units are hermetically sealed
- Full MIL-STD-883 Screening is available.
Other Specifications are available. Please contact us with your specific requirement.
