PMI's line of Bi-Phase Modulators includes a comprehensive selection of different models which cover broad octave frequency bands ranging from 0.5 to 40 GHz.

Bi-phase modulators take a TTL level digital bits stream that’s encoded onto the RF carrier using 2 Phase Shift Keying (2PSK) modulation, where the 2 phases are separated by 180º. This performance is desirable in communications systems, microwave radio, radar, high data rate test & measurement, serial data transmission, base station infrastructure, and other industrial and military applications.

PMI's line of 0° to 180° Bi-Phase Modulators offer impressive features that include TTL command control, low insertion loss of 2.5 dB typ, fast switching speed of 40 nsec typ, low VSWR of 1.8:1 typ, and maximum peak RF input power of 0.5 watts. All designs require dual bias voltages and the input and output RF ports are bi-directional. These bi-phase modulators operate across a wide temperature range from -40°C to +85°C.

The compact and rugged packages use solder pins for TTL, DC bias and ground, and field replaceable SMA or 2.92mm female connectors. All designs are highly reliable and meet MIL-STD-202 environmental test conditions for humidity, shock, vibration, altitude and temperature cycle.

If you do not see exactly what you need, please e-mail your requirement to sales@pmi-rf.com so we can propose an instant solution.

Part NumberStatusFrequency MinFrequency MaxPhase StatesInsertion LossVSWRControl Type
PS-90-6012EActive4.5 GHz16.5 GHz0° / 180°4.0 dB TYPICAL2.5:1 MAXIMUMTTL
PS-901Active6.0 GHz12.0 GHz+90°/-90° or +0°/-180°2.5 dB Typ.2.0:1 Typical (2.5:1 Maximum)TTL
PS-90-6012-PH5-HS50NS-15VActive6.0 GHz12.0 GHz0° / 180º2.5 dB typ., 3.0 dB max.2.5:1 MaxTTL
BPM-1826-180-292FFActive18.0 GHz26.0 GHz0° / 180º6 dB Typ2.0:1 goal, 3.0:1 MaxTTL
BPM-1840-180-292FFActive18.0 GHz40.0 GHz0° / 180º8 dB Typ2.0:1 goal, 3.0:1 MaxTTL
BPM-2640-180-292FFActive26.0 GHz40.0 GHz0° / 180º8 dB Typ2.0:1 goal, 3.0:1 MaxTTL

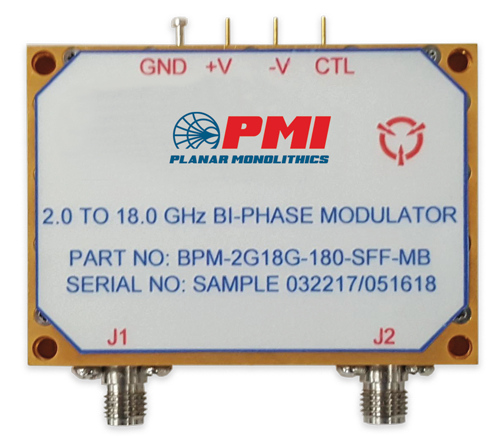

BPM-2G18G-180-SFF-MB *Active2.0 GHz18.0 GHz0° / 180º5.5 dB Max1.50:1 MaxTTL
BPM-5G6G-180-SFFPreliminary5 GHz6 GHz0° / 180°2.5 dB max1.7:1 maxTTL
BPM-6G18G-180-F193BPreliminary6 GHz18 GHz0° / 180°3.5 dB typ2.0:1 TypTTL
PS-180-4R15R3-SFFActive4.1 GHz5.3 GHz0° / 180°3.0 dB Max.1.7:1TTL
PS-90Active10.2 GHz10.8 GHz0° / 180°2.0 dB Max. with Logic "0"2.0:1 MaxTTL
PS-90-1020-101F-512Active1 GHz1.12 GHz0° / 180°2.0 dB Max1.7:1 MaxTTL
PS-90-810-OPT910Preliminary9 GHz10 GHz0° / 180°2.5 dB Typ (3.0 dB Max)2.0:1 Typ (2.5:1 Max)TTL
BPM-4G8G-10WPreliminary4 GHz8 GHz0° / 180º3.0 dB max2.0:1TTL
BPM-4G8G-HSPreliminary4 GHz8 GHz0° / 180º3.0 dB max2.0:1 maxTTL

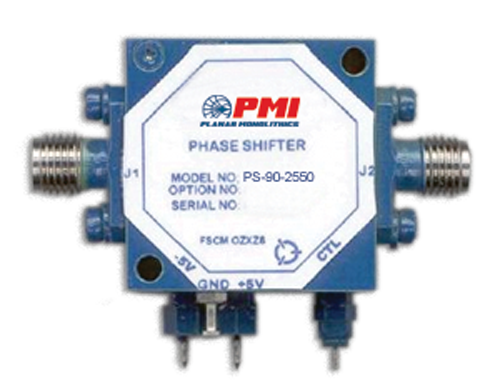

PS-90-2550Preliminary2.5 GHz5.0 GHz0° / 180°2.5 dB Typ, 3.0 dB Max2.0:1TTL
PS-90-6012-HS15NS-OPT10GActive10 GHz10 GHz0° / 180°2.5 dB typ., 3.0 dB max. - Measured 2.7 dB2.0:1 typ., 2.5:1 max. - Measured 1.9:1TTL
PS-90-6012-HS15NS-OPT6D1GPreliminary6.1 GHz6.1 GHz0° / 180º2.5 dB typ., 3.0 dB max.2.0:1 typ., 2.5:1 maxTTL
PS-90-6012-HS15NS-OPT7GPreliminary7.0 GHz7.0 GHz0° / 180º2.5 dB typ., 3.0 dB max.2.0:1 typ., 2.5:1 maxTTL
PS-90-1020 Options 101F, VSWRActive1 GHz1.12 GHz0° / 180°2.0 dB Max1.5:1TTL
PS-90-2040 Opt HS15NSActive2 GHz4 GHz0° / 180°2.5 dB typ., 3.0dB max. - Measured 0.91 dB2.0:1 - Measured 1.6:1TTL
PS-90-2040EActive1.5 GHz4.5 GHz0° / 180°2.5 dB Typ, 3.0 dB Max2.0:1TTL
PS-90-2550EActive1.9 GHz5.6 GHz0° / 180°2.5 dB typ., 3.0 dB max.2.0:1TTL
PS-90-6012-9F-SSPreliminary9 GHz9.5 GHz0° / 180°2.0 dB Max1.8:1 TypTTL
PS-90-810Active8 GHz10 GHz0° / 180°2.5 dB Typ (3.0 dB Max)2.0:1 Typ (2.5:1 Max)TTL
BPM-1G2G-1-SFFActive1 GHz2 GHz0° / 180°8.8 dB Max.2.0:1TTL
PS-90-5010Active5 GHz10 GHz0° / 180°2.5 dB Typ, 3.0 dB Max2.0:1TTL
PS-90-6012Active6 GHz12 GHz0° / 180°2.5 dB Typ, 3.0 dB Max2.0:1TTL
PS-90-2040-SYActive2.841 GHz2.871 GHz0° / 180°1.0 dB Max. - Measured 0.82 dB1.2:1 Max. - Measured 1.14:1TTL
PS-90-8018 *Active8 GHz18 GHz0° / 180°3.0 dB typ., 3.5 dB max.2.0:1TTL
PS-90-0510 *Active0.5 GHz1 GHz0° / 180°2.5 dB Typ, 3.0 dB Max2.0:1TTL

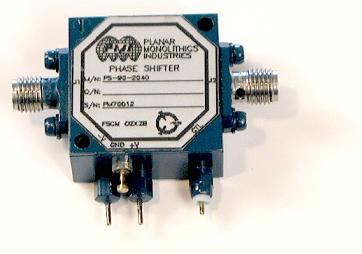

PS-90-2040 *Active2 GHz4 GHz0° / 180°2.5 dB typ, 3.0 dB max2.0:1TTL

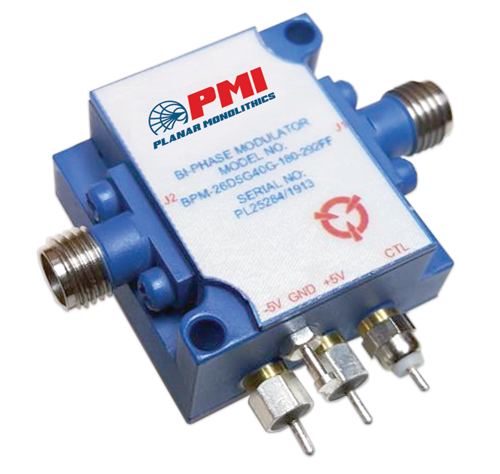

BPM-26D5G40G-180-292FF *Active26.5 GHz40.0 GHz0° / 180º5.5 dB typ.2.0:1 max., 1.5:1 goalTTL
PS-90-1020 *Active1 GHz2 GHz0° / 180°3.0 dB Typ, 6.0 dB Max2.0:1TTL

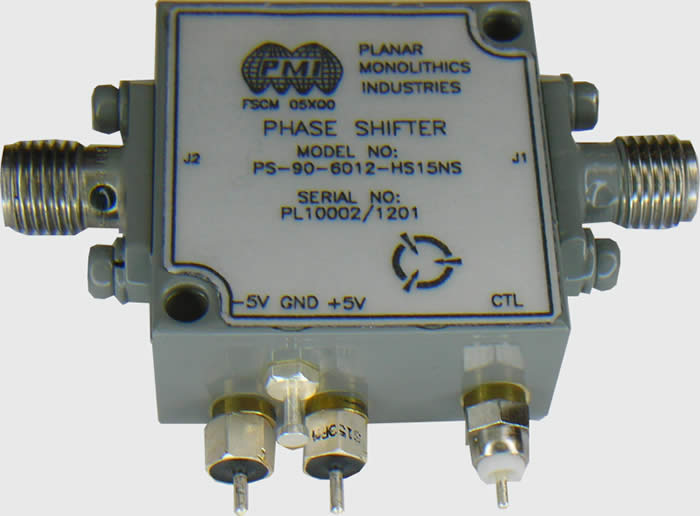

PS-90-6012-HS15NS *Active6 GHz12 GHz0° / 180°2.5 dB Typ, 3.0 dB Max2.0:1 Typ, 2.5:1 MaxTTL

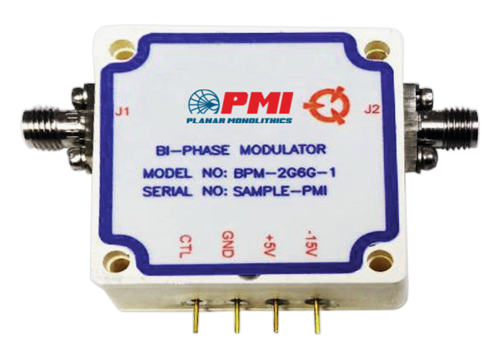

BPM-2G6G-1 *Active2 GHz6 GHz0° / 180º2.5 dB max.1.8:1 max.TTL
PS-90-4080 *Active4.0 GHz8.0 GHz0° / 180°2.5 dB typ, 3.0 dB max2.0:1 TypTTL
