Part NumberStatusFrequency RangeFrequency MinFrequency MaxConnectorsSize (Excluding Connectors)
IQM-2G18G-SFFPreliminary2.0-18.0 GHz2.0 GHz18.0 GHzSMA-F0.800" x 0.800" x 0.369"
IQM-2G4G-SFFPreliminary2.0-4.0 GHz2.0 GHz4.0 GHzSMA-F0.800" x 0.800" x 0.369"
IQM-4G8G-SFFPreliminary4.0-8.0 GHz4.0 GHz8.0 GHzSMA-F0.800" x 0.800" x 0.369"

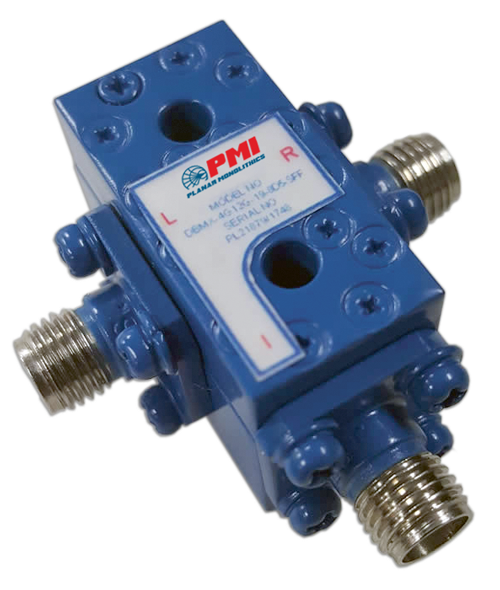

DBMX-4G12G-19-8D5-SFFActive4.0 to 12.0 GHz4.0 GHz12.0 GHzMIL-C-39012 SMA (F) 3 Places1.000" x 0.725" x 0.510"
DBMX-618RF-418LO-DC4IF-20-SFFActive6.0 to 20.0 GHz6.0 GHz20.0 GHzSMA (F)0.80" x 0.59" x 0.41"
DBMX-4G18G-20-9R5-SFFPreliminary4.0 to 18.0 GHz4 GHz18 GHzSMA Female0.56" x 0.52" x 0.39", 14.22 mm x 13.21 mm x 9.91 mm
IRMX-8D5G9D7G-20-20-SFFPreliminary8.5 to 9.7 GHz8.5 GHz9.7 GHzSMA Female68.20 mm x 28.12 mm x 16.26 mm, 2.69" x 1.11" x 0.64", All Dimensions ± 5%
IRMX-8G12G-50-33-SFFActive8.0 to 12.0 GHz8 GHz12 GHzSMA Female2.00" x 1.35" x 0.58"
50.80 mm x 34.29 mm x 14.78
PDBMX-18G40G-25-11-24FFPreliminary18.0 to 40.0 GHz18 GHz40 GHz2.4 mm (F)0.56" x 0.52" x 0.39"
DMBX-4G12G-19-8D5-SFFActive4.0 to 12.0 GHz4 GHz12 GHzMIL-C-39012 SMA (F) 3 Places1.000" x 0.725" x 0.510
25.40 mm x 18.41 mm x 12.95 mm
