Analog Controlled Attenuators | Quantic PMI (Planar Monolithics)

Quantic PMI offers the highest quality RF and Microwave, Solid State digital and analog controlled attenuators for commercial, industrial, and military applications. Choice of attenuation ranges with resolution as low as 0.015 dB and operating frequency ranges up to 50 GHz in Octave, Sub-Octave and Broadband models. Either voltage variable or Digitally Variable programmable versions are available. Quantic PMI’s Attenuators offer the industry’s best attenuation flatness vs. frequency.

Features:

Ultra-Broadband Performance
High Attenuation Accuracy
Low Loss
Excellent Frequency Flatness
Very Small Packaging
Each unit has a unique serial number and date code.
Swept Data with each unit
Summary data sheet with each unit.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.


PVVAN-812-60-MP-110C Preliminary	Preliminary	8	12	2.9 dB Max	60 Min	0 to 6 V Linear Control: 10 dB/V
PVAN-8993-60-SFF Active	Active	8.9	9.3	2.7 dB Max	60 dB Min	Voltage
PVAN-218-10-SFF-HC Active	Active	2	18	5 dB Max	10 dB Min	Voltage

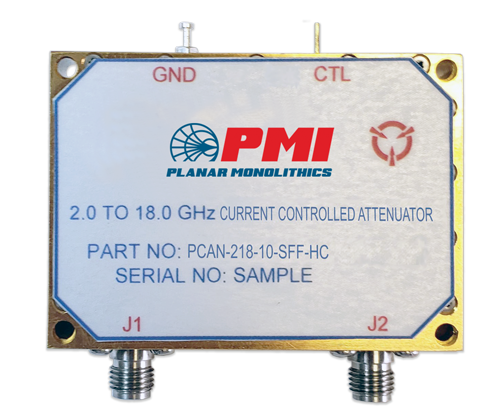

PCAN-218-10-SFF-HC Active	Active	2	18	5 dB Max	10 dB Min	Current
PCAN-218-10-SFF-LC Active	Active	2	18	5 dB Max	10 dB Min	Current
PVAN-218-10-SFF-LC Active	Active	2	18	5 dB Max	10 dB Min	Voltage
VVAM-DC2000-100 Active	Active	DC	2.4	7 dB Max	78 to 104 dB	Voltage
VCAM-002000-90 Active	Active	1.37	1.43	7 dB Max	80 dB Min, 90 dB Typ	Voltage

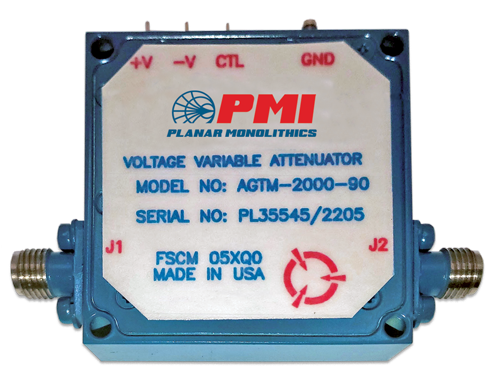

AGTM-2000-90 Active	Active	DC	2.4	5.25 dB Max (-40 to +85 °C)	75 dB Typ	Voltage

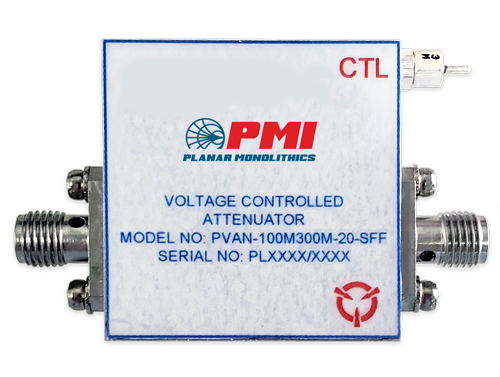

PVAN-100M300M-20-SFF Active	Active	0.1	0.3	1.5 dB Max	20 dB Typ, 16 dB Min	Voltage
PVVAN-3G3D4G-45-CD-SFF Preliminary	Preliminary	3	3.4	1.8 dB Max	0 to 45 dB ± 5 dB Max	Voltage
PDVAT-27G31R5G-50dB Preliminary	Preliminary	27	31.5	4 dB	50 dB	Voltage
PVVAN-0510-60-MP Preliminary	Preliminary	0.5	1	2 dB	60 dB	Voltage
PVVAN-2040-60-MP-OPT1950-4250 Preliminary	Preliminary	2	4	2 dB	60 dB	Voltage
PVVAN-2550-60-MP Preliminary	Preliminary	2.5	5	2.1 dB	60 dB	Voltage
PVVAN-26R5G40G-50-CD-1 Preliminary	Preliminary	26.5	40	10 dB	50 dB	Voltage
PVVAN-31R8G32R3G-60-CD-1 Preliminary	Preliminary	31.8	32.2	10 dB	60 dB	Voltage
PVVAN-5010-60-MP Preliminary	Preliminary	5	10	2.7 dB	60 dB	Voltage
PVA-500M18G-60-SFF-OPT2G Preliminary	Preliminary	0.5	2	2.5 dB	60 dB	Voltage
PVVAN-1020-60-MP Preliminary	Preliminary	1	2	2 dB	60 dB	Voltage
PVAN-500M30G-15-292FF Preliminary	Preliminary	0.5	30	5 dB	15.7 dB	Voltage
VVA-1G4G-CD-SFF-1 Active	Active	1	4	2 dB	15 dB	Voltage
DTA-6380M7440M-60-9BDIFF-SFF Active	Active	6.38	7.44	6.5 dB	50 dB	Voltage
PVA-400M18G-60-SFF Preliminary	Preliminary	0.4	18	4.5 dB	60 dB	Voltage
PVVAN-0R4G6G-40-MP-1 * Active	Active	0.4	6	2.8 dB	40 dB	Voltage
PVVAN-8018-60-MP * Active	Active	8	18	3.7 dB	60 dB	Voltage
PVVAN-2040-60-MP * Active	Active	2	4	2 dB	60 dB	Voltage
PVVAN-4080-60-MP * Active	Active	4	8	2.5 dB	60 dB	Voltage
PVVAN-6012-60-MP * Active	Active	6	12	2.8 dB	60 dB	Voltage
PVA-500M18G-60-SFF * Active	Active	0.5	18	4.5 dB	60 dB	Voltage

Part Number

Status

Frequency Min (GHz)

Frequency Max (GHz)

Insertion Loss (dB)

Attenuation (dB)

Control Type

PVVAN-812-60-MP-110C
Preliminary

Preliminary

2.9 dB Max

60 Min

0 to 6 V
Linear Control: 10 dB/V
