Solid State Power Amplifiers (SSPA)

Solid State Power Amplifiers (SSPA) Solid State Power Amplifiers (SSPA) Solid State Power Amplifiers (SSPA)  Solid State Power Amplifiers (SSPA)


Planar Monolithics (PMI) Solid State Power Amplifiers (SSPA) are ruggedized for use in pulsed airborne, naval, and ground radar applications, as well as found in weather forecasting Doppler radar systems and utilized in air traffic control and precision approach radar systems. These power amplifiers offer remarkably high gain up to 53 dB and saturated output power above 40 dBm (10 W) in bandwidths up to 40 GHz.   Many options are available.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Features that are supplied with all our amplifiers:

  • Internal Voltage Regulation for +12 to +15 VDC Operation
  • Internal Reverse Voltage Protection
  • Unconditional Stability
  • Each unit has a unique serial number and date code.
  • Swept Data with each unit. (S21, S11, S22 and Noise Figure)
  • Summary data sheet with each unit.
  • Operating Temperature -20 to +70 °C

Amplifier Options:

  • Modified internal voltage regulators for +28 VDC operation
  • Any package or form factor can be supplied (Usually without a NRE charge)
  • Connector types can be specified.
  • Gain and OP1dB values can be optimized to meet your requirement.
  • Operating temperature ranges can be increased to -54 to +85 °C.
  • All amplifiers can be optimized to your specific frequency of interest.
  • Temperature Compensation is available on all amplifiers.
  • Hermetic Sealing is available.  Standard catalog amplifiers are sealed with a conductive epoxy.
  • Military or Space Screening is available.
  • Gain and Phase matching is available on most amplifiers.
Part NumberStatusFrequency Min (GHz)Frequency Max (GHz)Gain (dB)PsatInput Power
PA-50M22G-13-4-29-SFF
Active		Active0.052213 Typ
10 Min		30 dBm Typ
25 dBm Min
-
PA-50M22G-14-5-31-SFF
Active		Active0.052214 Typ
10 Min		33 dBm Typ
26 dBm Min
-
PA-2G6G-50-45-SFF
Active		Active2630 to 60 dB (Adjustable)
-
-
PA-3436-30-10W-24V-292FF
Active		Active343630 dB Min40 dBm Typ23 dBm Max
PA-218-45-5-10W-24V-SFF-MICROD
Preliminary		Active21848 dB Max,
38 dB Min		10 W Min23 dBm CW Max
PA-618-25G-6NF-30DBM-15V-SFF-2Active61821.5 dB Min,
24 dB Max
-
27 dBm Max
PA-0D5G2G-100W-SFF
Preliminary		Preliminary0.5250 dB Min100 W Min10 dBm Max
VGA-20M1G-100W-DSUB
Preliminary		Preliminary0.02148 ± 1 dB Max,
25 dB Min (VVA Range)		100 W Min10 dBm Max
PA-17D3G-21D2G-20W-SFF
Preliminary		Preliminary17.321.225 dB Typ20 W (43 dBm) Typ30 dBm CW Max
PA-21D2G-23D6G-10W-SFF
Preliminary		Preliminary21.223.622 dB Typ10 W (40 dBm)26 dBm CW Max
PA-LPN-40-50M500M-5-35DBM-SFF
Active		Active0.050.540 dB Min34 dBm Min0 dBm Max
PA-35M45M-55-50W
Active		Active0.0350.04555 dB Min47 dBm Min (50 W)-5 dBm Max
PEC-36-2G18G-4R5-27-15-SFF
Active		Active21836 dB Typ1W Typ (30 dBm)20 dBm CW Max
PEC-36-0R518G-4R5-27-15-SFF
Active		Active0.51840 dB Typ,
38 dB Min		1 W Typ (30 dBm)20 dBm CW Max
PA-37-5G19G-33DBM-SFF
Preliminary		Preliminary51935 dB Min,
42 dB Max		33 dBm Min15 dBm Max
PA-218-45-5-2W-24V-SFF
Active		Active21842 dB Min,
56 dB Max		2 W Min @ 0 dBm Input Power20 dBm CW Max
PA-218-45-5-4W-24V-SFF
Active		Active21845 dB Min,
56 dB Max		4 W Min @ 0 dBm Input Power20 dBm CW Max
PA-6G18G-35-SFF
Preliminary		Preliminary61835 dB Min40 dBm Min15 dBm Max
PA-118-45-5-4W-24V-SFF
Preliminary		Preliminary11845 dB Min,
56 dB Max		4 W Min @ 0 dBm Input Power20 dBm CW Max
PA-6G18G-30-SFF
Preliminary		Preliminary61830 dB Min27 dBm Max
-
PA-218-45-5-10W-22V-SFF
Active		Active21848 dB Max,
38 dB Min		10 W Min23 dBm CW Max
PA-218-45-5-10W-24V-SFF
Active		Active21848 dB Max,
38 dB Min		10 W Min23 dBm CW Max
PA-8G12G-43-5-40-SFF-2
Preliminary		Preliminary81243 dB Typ,
40 dB Min		40 dBm (10 W) Typ20 dBm Max
PA-2G18G-43-5-40-SFF-2
Active		Active21843 dB Typ,
39 dB Min		40 dBm (10 W) Typ20 dBm Max
PA-2040-22G-8W-18V-292FF
Active		Active204022 dB Typ8 W Typ33 dBm Max
PA-1840-22G-8W-18V-292FF
Preliminary		Preliminary184022 dB Typ8 W Typ33 dBm Max
PA-40-20M1G-36DBM-SFF
Active		Active0.02140 dB Typ,
38 dB Min
-
10 dBm Max

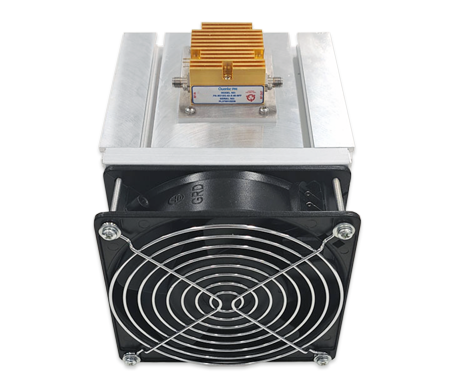

PA-8G12G-43-5-40-SFF-HS
Active		Active81243 dB Typ,
40 dB Min		40 dBm (10 W) Typ20 dBm Max
PA-2G18G-43-5-40-SFF-HS
Active		Active21843 dB Typ,
39 dBm Min		40 dBm (10 W) Typ,
35 dBm Min		20 dBm Max
PA-2G18G-43-5-40-SFF-HS-24V
Active		Active21843 dB Typ,
39 dB Min		40 dBm (10 W) Typ,
36 dBm Min		20 dBm Max

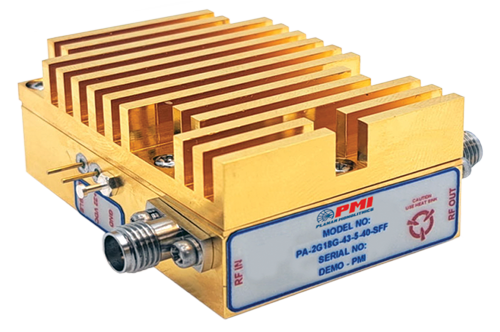

PA-2G18G-43-5-40-SFF
Active		Active21843 dB Typ,
39 dB Min		40 dBm (10 W) Typ,
36 dBm Min		20 dBm Max
PA-8G12G-43-5-40-SFF
Active		Active81243 dB Typ,
40 dB Min		40 dBm (10 W) Typ20 dBm Max
PEC-15-400M470M-37-12V-SFF
Active		Active0.40.4710 dB Min, 15 dB Typ37 dBm Min,
38 dBm Typ		25 dBm Max
PA-4G8G-53-5-40-SFF
Preliminary		Preliminary4853 dB Min40 dBm Min20 dBm Max
PA-8G12G-53-5-40-SFF
Preliminary		Preliminary81253 dB Min40 dBm Min20 dBm Max
PA-12G18G-53-5-40-SFF
Preliminary		Preliminary121853 dB Min40 dBm Min20 dBm Max
PA-2G4G-53-5-43-SFF
Preliminary		Preliminary2453 dB Min43 dBm Min20 dBm Max
PA-35-6G12G-SFF
Preliminary		Preliminary61230 dB Min,
35 dB Typ,
40 dB Max		33 dBm Min,
34 dBm Typ		20 dBm
PA-618-25G-6NF-34PS-24V-SFF
Active		Active61821 dB34 dBm Typ27 dBm Max

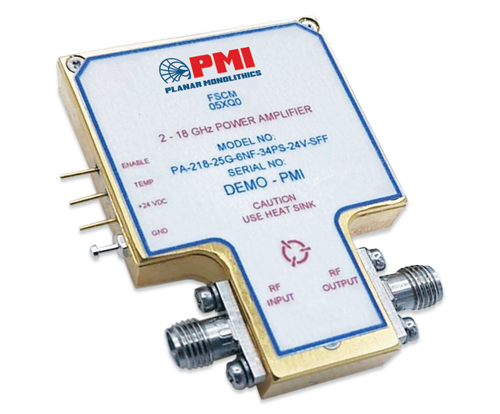

PA-218-25G-6NF-34PS-24V-SFF
Active		Active21825 dB Typ,
20 dB Min,
28 dB Max		34 dBm Typ27 dBm Max
PA-618-25G-6NF-30DBM-15V-SFF
Active		Active61820 dB Min,
25 dB Typ,
28 dB Max
-
27 dBm Max
PA-500M6G-25G-30DBM-15V-SFF
Preliminary		Preliminary0.5620 dB Min,
25 dB Typ,
28 dB Max
-
27 dBm Max
PSPA-VHF200C
Active		Active0.020.2430 dB Typ3 W Min10 dBm Typ
PA-09402-14-32DBM
Active		Active0.94.214 dB Min31.5 dBm23 dBm
PA-05302-15-32DBM-LM
Active		Active0.53.214 dB Min31.5 dBm Min23 dBm
PA-50-0D81-SFNF
Active		Active0.8145 dB Min,
50 dB Typ,
57 dB Max		47.5 dBm Min,
49 dBm Typ		7 dBm
PA-30-1D32D7-SFF
Active		Active1.32.7
-
36 dBm Min,
37 dBm Typ
-

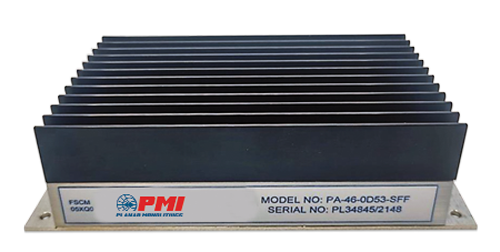

PA-46-0D5-SFF
Active		Active0.5344 dB Min,
46 dB Typ		38 dBm Min,
40 dBm Typ		5 dBm Max
PA-38-812-SFF
Preliminary		Preliminary81236 dB Min,
38 dB Typ		33 dBm Min,
34 dBm Typ
-
PA-23-56-2W-GPOMM
Preliminary		Preliminary5623 dB Typ33 dBm Min13 dBm Typ
