Planar Monlithics (PMI) offers custom surface mount (SMT) and QFN packaging for many types of devices. SDLVA's, Log Amplifiers, Phase Shifters, Attenuators, Switches, as well as Low Noise Amplifiers.
PMI also offers multifunction options in a single QFN package such as Limiter / LNA or LNA / Detector.
PMI has the experience of offering custom devices that meet your specific control function at high frequency. Mounting and integrating high frequency RF devices take skill and experience such that the package itself does not degrade the RF signal. PMI has experience in selecting the proper package, integrating the RF devices, and providing the required testing.
If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.
SMT Switches
| Model Number | Frequency Range (GHz) | Insertion Loss (dB) | Isolation (dB) | Reflective / Absorptive | Switching Speed (ns) | Operating Input Power | DC Voltage & Current | Package |
| P2T-14D415D4-15-SMT-20W | 14.4 to 15.4 | 0.5 | 15 | Reflective | Driverless | 20 W | Fwd Bias 50 mA
Rev Bias -15 VDC | 0.35" x 0.5" x 0.21" SMT |
SMT Limiters
| Model Number | Frequency Range (GHz) | Insertion Loss (dB) | VSWR | Maximum Input
Power (dBm) | Leakage Power (dBm) | Recovery
Time | Size |
| LM-18G40G-SMT-1 | 18 to 40 | 4 | 1.5:1 | 20 W Peak,
670 ns PW 40% DC | 14 | 250 ns | 0.198" x 0.270" x 0.016" |
Integrated High Power, Switch Limiter
| Model Number | Frequency Range (GHz) | Insertion Loss (dB) | Return Loss
(dB) | Maximum Input
Power (dBm) | Islolation
(dB) | Size |
| PSL-13D414D2-CD-PP | 13.4 to 14.2 | 1.3 | -15 dB Max | 75 W @ Switch 20 W @ Limiter | 40 dB Min | 0.533" x 0.247" x 0.131" |
IQ Vector Modulators
| Model Number | LO & RF Frequency Range (GHz) | I & Q Frequency Range (GHz) | Maximum Input
LO Power (dBm) | Insertion Loss (dB) | VSWR | DC Power (V) | Size |
PIQ-1-SMT | 0.1 to 20 | DC to 10 | 10 dBm CW | 10 | 2.5:1 | +4 ± 5% | 0.157" x 0.157" x 0.047" |
| PIQ-1-SMT-EVAL | 0.1 to 20 | DC to 10 | 10 dBm CW | 10 | 2.5:1 | +4 ± 5% | 2.0" x 1.6" x 0.35" |

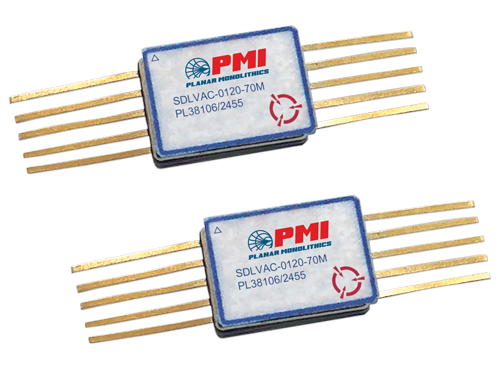

Surface Mount (SDLVA's)
