Phase Locked Oscillators (PLOs)

Planar Monolithics (PMI) offers precision frequency sources that lock to a reference (internal or external) to produce a stable, low-phase-noise RF or microwave signal. Because of that stability, PMI PLOs can be found in almost every high-performance RF system. ROHS Compliant! Applications...

Defense & Electronic Warfare...

  • Radar transmitters & receivers  Stable LO sources for up/downconversion, chirp generation, and coherent processing.
  • Electronic warfare (EW)  Jammers, threat simulators, and receivers rely on ultra-low phase noise and fast lock.
  • Missile seekers & guidance systems  Compact, rugged, temperature-stable oscillators.
  • IFF and secure comms  Precise frequency references for modulation and coding.

Satellite & Space Systems...

  • SATCOM transceivers  LO sources for up/downconversion in Ku/Ka-band.
  • Telemetry, tracking & control (TT&C)  Stable references for command links.
  • Spaceborne radar (SAR)  Coherent imaging requires extremely low phase noise.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

LD2 – PLDRO Lock Alarm = High (1) = Locked / Low (0) = Not locked

LD1 – OCXO Lock Alarm = High (1) = Locked / Low (0) = Not locked

When using an external or internal reference both LD1 and LD2 should be high (1) = Good to go and all systems engaged.

If one of them is low, then something is out of lock and not a valid test.

LV = This is the tuning voltage for the varactor diode which feeds into a comparator to determine the in-lock condition of the PLDRO. Quantic PMI uses this to set the alarm threshold and can be left open by the user.

Part NumberStatusOutput Frequency - fo (GHz)Output Power (dBm)SpuriousHarmonics
PLO-185M-10M-EXT-SFF
Preliminary		Preliminary0.185
-
-80 dBc Max (Fo ± 100 MHz)
-70 dBc Max (Out of band)		-30 dBc Max
PLDRO-23G-10M-EXT
Preliminary		Preliminary23
-
-65 dBc Max-20 dBc Max
PDRO-5D7G-13DBM-EXT-SFF
Preliminary		Preliminary5.713 dBm Min-75 dBc Max-20 dBc Max
PDRO-10D7G-13DBM-EXT-SFF
Preliminary		Preliminary10.713 dBm Min-70 dBc Max-20 dBc Max
PLDRO-22G-100M-292FF-EXT
Preliminary		Preliminary2213 dBm Min-75 dBc Max-20 dBc Max
PLDRO-382M-10M-EXT-SFF
Preliminary		Preliminary0.38211 dBm Min-65 dBc Max-35 dBc Max
PLDRO-4D3G-25M-EXT-SFF
Preliminary		Preliminary4.313 to 15 dBm
(Over operating temperature range)		-76 dBc Max @ ±10 MHz to 2 GHz away from carrier-20 dBc Max
PLDRO-11D7G-100M-EXT-SFF
Preliminary		Preliminary11.713 dBm Min-80 dBc Max-30 dBc Max
PLDRO-9D8G-100M-EXT-SFF
Preliminary		Preliminary9.813 dBm Min-80 dBc Max-30 dBc Max
PLO-1D2G-10M-EXT-SMA
Preliminary		Preliminary1.210 dBm Min-60 dBc Max (@ Fo ± 30 MHz)-20 dBc Max
PLO-6D3G-10M-EXT-SMA
Preliminary		Preliminary6.310 dBm Min-60 dBc Max (@ Fo ± 30 MHz)-20 dBc Max
PLO-7D625G-10M-EXT-SMA
Preliminary		Preliminary7.62510 dBm Min-60 dBc Max (@ Fo ± 30 MHz)-20 dBc Max
PLO-28G-100M-EXT
Preliminary		Preliminary2817 dBm Min-70 dBc Max-20 dBc Max
PLO-13D795G-10M-INT-SMA
Preliminary		Preliminary13.79510 dBm Min-60 dBc Max @ 30 MHz-20 dBc Max
PLO-13D795G-10M-EXT-SMA
Active		Active13.79510 dBm Min-60 dBc Max @ Fo ± 30 MHz-20 dBc Max
PLO-48D4G-EXT
Active		Active48.410 dBm Min-60 dBc Max-20 dBc Max
PLO-48D8G-EXT
Active		Active48.810 dBm Min-60 dBc Max-20 dBc Max
PLDRO-2D5G-10M-EXT-SMA
Preliminary		Preliminary2.513 dBm Min-70 dBc Max-20 dBc Max
PLDRO-11D84G-10M-EXT-SMA
Preliminary		Preliminary11.8413 dBm Min-70 dBc Max-20 dBc Max
PLDRO-10D88G-10M-EXT-SMA
Preliminary		Preliminary10.8813 dBm Min-70 dBc Max-20 dBc Max
PLDRO-1D5G-100M-EXT-SMA
Preliminary		Active1.513 dBm Min-70 dBc Max-20 dBc Max
PLDRO-2D5G-100M-EXT-SMA
Active		Active2.513 dBm Min-70 dBc Max-20 dBc Max
PDRO-8D12G-13DBM-INT-SFF
Preliminary		Preliminary8.1213 dBm Min-80 dBc Max-20 dBc Max
PLO-17D5G-INT-SFF-HERM
Active		Active17.56 dBm Min-60 dBc Max-25 dBc Max
PLO-17G-INT-SFF-HERM
Preliminary		Preliminary176 Min-60 dBc Max-25 dBc Max
PLO-18D5G-INT-SFF-HERM
Active		Active18.56 dBm Min-60 dBc Max-25 dBc Max
PLO-18G-INT-SFF-HERM
Active		Active186 dBm Min-60 dBc Max-25 dBc Max
PLDRO-11D95G-15DBM-50M-EXT
Active		Active11.95>15 dBm<-80 dBc<-20 dBc
PLDRO-14D15G-25M-EXT-ROHS
Active		Active14.1513 to 15 dBm into 50 Ohm over the operational temperature
-
<-20 dBc
PLDRO-17D35G-25M-EXT-ROHS
Active		Active17.3513 to 15 dBm into 50 Ohm over the operational temperature
-
<-20 dBc
PDRO-17520M-13DBM-SFF
Active		Active17.5213 dBm Min-70 dBc Max-20 dBc Max
PDRO-17G-13DBM-EXT-SFF
Preliminary		Preliminary1713 Min-70 dBc Max-20 dBc Max
PLDRO-31D50G-10M-EXT
Preliminary		Preliminary31.513 dBm Min-75 dBc Max-20 dBc Max
PDRO-20G-13DBM-EXT
Active		Active2013 dBm Min-70 dBc Max20 dBc Max
PDRO-29D8G-13DBM-EXT
Active		Active29.813 dBm Min-60 dBc Max-20 dBc Max
PDRO-37D8G-13DBM-EXT
Active		Active37.813 dBm Min-50 dBc Max-20 dBc Max
PLO-34D5G-10M-EXT
Preliminary		Preliminary34.510 ± 1 dBm-75 dBc Max-20 dBc Max
PLO-23D6G-10M-EXT
Preliminary		Preliminary23.610 ± 1 dBm-75 dBc Max-20 dBc Max
PLO-22G-10M-EXT
Preliminary		Preliminary2210 ± 1 dBm-75 dBc Max-20 dBc Max
PLDRO-18D75G-25M-EXT-ROHS
Active		Active18.7513 to 15 dBm-75 dBc Max-25 dBc Max
PLDRO-17D45G-25M-EXT-ROHS
Active		Active17.4513 to 15 dBm-75 dBc Max-25 dBc Max

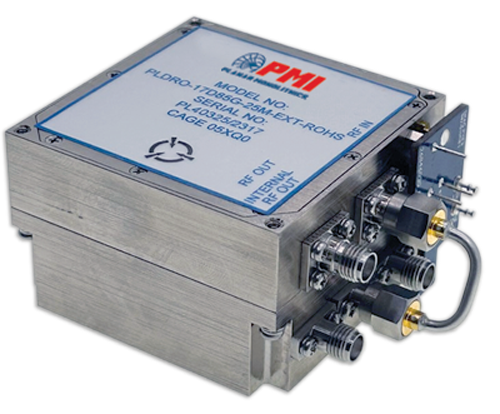

PLDRO-17D85G-25M-EXT-ROHS
Active		Active17.8513 to 15 dBm-80 dBc Max-15 dBc Max
PLDRO-13D775-25M-EXT-ROHS
Preliminary		Preliminary13.77513 to 15 dBm-80 dBc Max-20 dBc Max
PLDRO-13D275-25M-EXT-ROHS
Preliminary		Preliminary13.27513 to 15 dBm-80 dBc Max-20 dBc Max
PLDRO-17D950G-25M-EXT-ROHS
Preliminary		Preliminary17.9513 to 15 dBm-76 dBc Max-20 dBc Max
PLDRO-14D425G-25M-EXT-ROHS
Preliminary		Preliminary14.42513 to 15 dBm-76 dBc Max-20 dBc Max
PLDRO-16D750G-25M-EXT-ROHS
Preliminary		Preliminary16.7513 to 15 dBm-76 dBc Max-20 dBc Max
PLDRO-13D275G-25M-EXT-ROHS
Preliminary		Preliminary13.27513 to 15 dBm-76 dBc Max-20 dBc Max
PLDRO-13D825G-25M-EXT-ROHS
Preliminary		Preliminary13.82513 to 15 dBm-76 dBc Max-20 dBc Max
PLDRO-19D050G-25M-EXT-ROHS
Active		Active19.0513 to 15 dBm-76 dBc Max-20 dBc Max
PLDRO-18D2G-25M-EXT-ROHS
Active		Active18.213 to 15 dBm-76 dBc Max-20 dBc Max
PLDRO-13D95G-25M-EXT-ROHS
Active		Active13.9513 to 15 dBm-76 dBc Max-20 dBc Max
PLDRO-16D750-25M-EXT-ROHS
Preliminary		Preliminary16.7513 to 15 dBm-80 dBc Max-20 dBc Max (Output)
PLDRO-17D750-25M-EXT-ROHS
Preliminary		Preliminary17.7513 to 15 dBm-80 dBc Max-20 dBc Max (Output)
PLDRO-13D025-25M-EXT- ROHS
Preliminary		Preliminary13.02513 to 15 dBm-80 dBc Max-20 dBc Max (Output)
PLDRO-13D675-25M-EXT-ROHS
Preliminary		Preliminary13.67513 to 15 dBm-80 dBc Max-20 dBc Max (Output)
PLDRO-18D6G-25M-EXT-ROHS
Active		Active18.613 to 15 dBm-76 dBc Max-20 dBc Max
PLDRO-14D275-25M-EXT-ROHS
Preliminary		Preliminary14.27513 to 15 dBm-80 dBc Max-20 dBc Max (Output)
PLDRO-18D750-25M-EXT-ROHS
Preliminary		Preliminary18.7513 to 15 dBm-80 dBc Max-20 dBc Max (Output)
PDRO-6900M-13DBM-SFF
Preliminary		Preliminary6.913 dBm Min-75 dBc Max-20 dBc Max
PLO-12D8G-13DBM-SFF-50M-EXT
Preliminary		Preliminary12.813 dBm Min-75 dBc Max-20 dBc Max
PDRO-6800M-13DBM-SFF
Active		Active6.813 dBm Min-75 dBc Max-20 dBc Max
PDRO-13D775-12V
Preliminary		Preliminary13.775
-
-80 dBc Max (Inside ±0.25 GHz from Fe)-20 dBc Max
PDRO-13D275-12V
Preliminary		Preliminary13.27512 ± 2 dBm-80 dBc Max (Inside ±0.25 GHz from Fe)-20 dBc Max
PIA-25-CD-2-EXT
Preliminary		Preliminary2513 dBm Min<-60 dBc<-25 dBc
PDRO-3300M-13DBM-SFF
Preliminary		Preliminary3.313 dBm Min-75 dBc Max-20 dBc Max
PDRO-6700M-13DBM-SFF
Preliminary		Preliminary6.713 dBm Min-75 dBc Max-20 dBc Max
PIA-6D6G-SFF-EXREF
Preliminary		Preliminary6.613 dBm Min<-80 dBc<-25 dBc
PLO-17R52-CD-1
Preliminary		Preliminary17.5215 dBm-80 dBc-20 dBc
PIA-12D8G-CD-1-EXT
Preliminary		Preliminary12.813 dBm Min<-80 dBc<-25 dBc
PLO-14R4-CD-1
Preliminary		Preliminary14.415 dBm-80 dBc-20 dBc
PIA-12D5G-CD-1
Preliminary		Preliminary12.513 dBm Min<-80 dBc<-25 dBc
PLO-18R3-CD-1
Preliminary		Preliminary18.315 dBm-80 dBc-20 dBc
PLO-19G-CD-1
Preliminary		Preliminary1913 dBm Min-80 dBc Max-25 dBc Max, -65 dBc Max (1/2 f0 Harmonics)
PLO-6D8G-CD-1
Preliminary		Preliminary6.8346914 dBm-80 dBc-25 dBc
PLO-980M-150-20DBM-12V-SF
Preliminary		Preliminary0.9822 dBm ± 2 dB-80 dBc-25 dBc
PLO-2064.384-CD-1
Preliminary		Preliminary2.06438410 dBm Min-65 dBc Max-30 dBc Max
PLO-516.096-CD-1
Preliminary		Preliminary0.51609612 dBm Min-65 dBc Max-30 dBc Max
PLO-1354.752-CD-1
Preliminary		Preliminary0.06451212 dBm Min-65 dBc Max-30 dBc Max
PLO-1D6G-CD-2
Active		Active1.614 dBm Min-60 dBc Min-20 dBc Min
PIA-12D8G-CD-1
Active		Active12.813 dBm Min<-80 dBc<-25 dBc
PLO-9G-CD-1
Active		Active925 dBm Max, 21 dBm Min-60 dBc Min-25 dBc Min
PDRO-3R803G-13DBM-SFF-ROHS
Preliminary		Preliminary3.80313 dBm Min-80 dBc Max-20 dBc Max

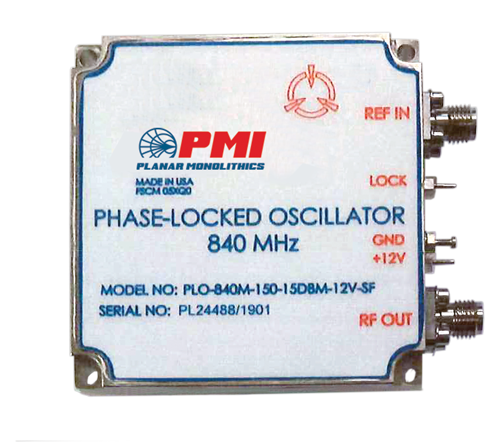

PLO-840M-150-15DBM-12V-SF
Active		Active0.8420 dBm Min<-80 dBc<-25 dBc
PDRO-7519R95M-13DBM-SFF-ROHS
Active		Active7.5199513 dBm Min-80 dBc Max-20 dBc Max
PLDRO-15000-13DBM-SFF
Preliminary		Preliminary1513 dBm Min-60 dBc Max (FO ±100 KHz),
-75 dBc Max (FO >100 KHz)		-20 dBc Max
PLDRO-12000-13DBM-SFF
Active		Active1213 dBm Min-60 dBc Max (FO ±100 KHz)
-75 dBc Max (F0 >100 KHz)		-20 dBc Max
PLDRO-6500-13DBM-SFF
Active		Active6.513 dBm Min-75 dBc Max-20 dBc Max
PIA-25-CD-1-INT
Preliminary		Preliminary2513 dBm Min<-60 dBc<-25 dBc
PDRO-30D-12V
Preliminary		Preliminary3013 dBm Min-75 dBc Max-10 dBc Goal
PDRO-24G-10DBM-SFF
Preliminary		Preliminary2410 dBm Min-70 dBc Max-25 dBc Max
PDRO-8D6915G-10DBM-SFF
Preliminary		Preliminary8.691510 dBm Min-70 dBc Max-25 dBc Max
PDRO-11D6-12V
Preliminary		Preliminary11.613 dBm Min-70 dBc Max-20 dBc Max
PDRO-18D2-12V
Preliminary		Preliminary18.213 dBm Min-70 dBc Max-20 dBc
PDRO-9600M-17DBM-SFF
Preliminary		Preliminary9.617 dBm Min-70 dBc Max-20 dBc Max
PIA-25-CD-1-EXT
Active		Active2513 dBm Min<-60 dBc<-25 dBc
PIA-5087D16-CD-1-EXT
Preliminary		Preliminary5.0871613 dBm Min<-70 dBc<-20 dBc
PIA-12D5G-CD-1-EXT
Active		Active12.513 dBm Min-80 dBc Max-25 dBc Max
PLDRO-44G-14DBM-24F
Preliminary		Preliminary4414 dBm-70 dBc Min in band-20 dBc
PDRO-10500M-13DBM-SFF
Preliminary		Preliminary10.513 dBm Min-70 dBc Max-20 dBc Max
PDRO-11100M-13DBM-SFF
Preliminary		Preliminary11.113 dBm Min-70 dBc Max-20 dBc Max
PLDRO-24G-14DBM-292FF
Preliminary		Preliminary2414 dBm-70 dBc Min in Band-20 dBc
PDRO-7519R95M-13DBM-SFF
Active		Active7.5199513 dBm Min-80 dBc Max-20 dBc Max
PLDRO-1D645G-13DBM-INT-SFF
Preliminary		Preliminary1.64513 dBm Min-80 dBc Max-20 dBc Max
PLDRO-2G-13DBM-INT-SFF
Preliminary		Preliminary213 dBm Min-80 dBc Max-20 dBc Max

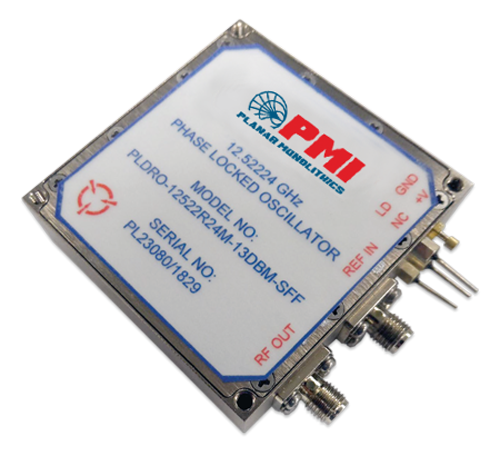

PLDRO-12522R24M-13DBM-SFF-ROHS
Active		Active12.5222413 dBm Min-70 dBc Max in band-20 dBc Max
PLDRO-22G-14DBM-292F
Preliminary		Preliminary2214 dBm-70 dBc Min in band-20 dBc
PLDRO-41R1G-14DBM-24F
Preliminary		Preliminary41.114 dBm-70 dBc Min in Band-20 dBc
PLDRO-30R5G-14DBM-292F
Preliminary		Preliminary30.514 dBm-70 dBc Min in band-20 dBc
PLDRO-39R2G-14DBM-292F
Preliminary		Preliminary39.214 dBm-70 dBc Min in band-20 dBc
