High Pass Filters

Planar Monolithics (PMI) large portfolio of high pass filters offer the broadest frequency coverage available on the market in Passband bandwidths covering the 0.5 to 60 GHz frequency range. PMI designs, manufactures and produces many standard models (shown below) for a variety of customers, PMI can design and build a product to meet your specifications.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.


HPF-7D9G18D5G-SFM Preliminary	Preliminary	7.9 to 18.5	7.9	1 dB Max
HPF-18G40G-292FF-HERM Preliminary	Preliminary	18 to 40	-	2 dB Max
HP-2G18G-SFM Active	Active	2 to 18	2	1 dB Max
HP-120-CD-50W-SFF Active	Active	1 to 20	-	-
HPF-8G18G-SFF Preliminary	Preliminary	8 to 18	-	2 dB Max
HP-55G57G-185FF Active	Active	55 to 57	50	2 dB Max
HP-1D2G18G-CD-SFF Active	Active	1.2 to 18	1.2	4.1 dB Max (1.2 to 1.5 GHz), 2.5 dB Max (1.5 to 18 GHz)
HP0R5G-18G-CD-SFF-ROHS Active	Active	0.5 to 18	0.5	5 dB Max (0.5 GHz), 2 dB Max (1 to 16 GHz), 3 dB Max (18 to 16 GHz)
HP-2G18G-PE2-SFM Preliminary	Preliminary	2 to 18	2	4 dB Max (2 GHz), 2 dB Max (1 to 16 GHz), 3 dB Max (16 to 18 GHz)
HP-118-CD-SFF-ROHS Active	Active	1 to 18	1	4 dB Max (@ 1 GHz), 2 dB Max (2 to 18 GHz)
HP0R5G-18G-CD-SMM Active	Active	0.5 to 18	0.5	5 dB Max (0.5 GHz), 2 dB Max (1 to 16 GHz), 3 dB Max (18 to 16 GHz)
HP3G18G-SMA Preliminary	Preliminary	3 to 18	3	1 dB
HP-4G24G-CD-292FF Preliminary	Preliminary	4 to 24	4	1.5 dB Max
DP20M1G-CD-SFF Active	Active	0.02 to 1	0.02	Equalized to match supplied graph
HP2G-1780-CD-SFM Preliminary	Preliminary	2 to 18	2	0.5 dB Typ
HP2G-1780-CD-SMF Preliminary	Preliminary	2 to 18	2	0.5 dB Typ
HP3G55M18G-SMA Active	Active	3.55 to 18	3.55	1.5 dB Max
HP2D2G-1575-SFF Active	Active	2.2 to 5.3	2.2	0.5 dB Typ, 1 dB Max
HP-120-CD-SFF Active	Active	1 to 20	1	4 dB Max (@ 1 GHz), 2 dB Max (2 to 18 GHz), 3 dB Max (18 to 20 GHz)
HP-118-CD-SFF Active	Active	1 to 18	1	4 dB Max (@ 1 GHz), 2 dB Max (2 to 18 GHz)
HP-120-CD-SFM Active	Active	1 to 20	1	4 dB Max (@ 1 GHz), 2 dB Max (2 to 18 GHz), 3 dB Max (18 to 20 GHz)
HP500-450-3A-SFF Active	Active	0.5 to 5	0.5	1 dB Max
6HP2G-1D95G-CD-SFF Active	Active	2 to 18	2	0.5 dB Max
HP-800-600-S-S-3A Active	Active	0.8 to 5	0.8	0.5 dB Max
HP-10M18G-PE2-SFF Active	Active	0.01 to 18	0.01	1.5 dB Typ
HP8G-7D8G-CD-SMF Active	Active	8 to 22	7.8 @ 3 dB	1.5 dB Max
HP3360-185FF Preliminary	Preliminary	33 to 60	33	2.5 dB Max

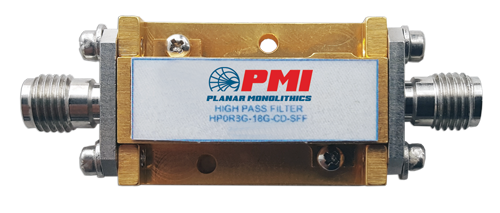

HP0R3G-18G-CD-SFF Active	Active	0.3 to 18	0.3	2 dB Typ
HP10G40G-292FF Preliminary	Preliminary	10 to 40	10	2 dB Max
HP-26D5G-40G-CD-292FM Preliminary	Preliminary	26.5 to 40	26.5	2 dB Max
7HP-500-2000-3A-SMF Preliminary	Preliminary	0.5 to 2	0.5	-1 dB Max
HP20G-19D5-CD-SS Active	Active	18 to 35	17.2	1.5dB
HP800-600-3A-SS Active	Active	0.8 to 5	0.6	0.5 dB Max
HP-2G-1780-SMA-FM Active	Active	2 to 18	2	0.5 dB Typ, 1 dB Max
HP10G-9D7-CD-SS Active	Active	10 to 27	9.7	1.5 dB Max

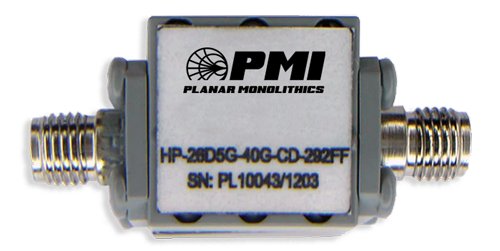

HP-26D5G-40G-CD-292FF Active	Active	26.5 to 40	26.5	2 dB Max

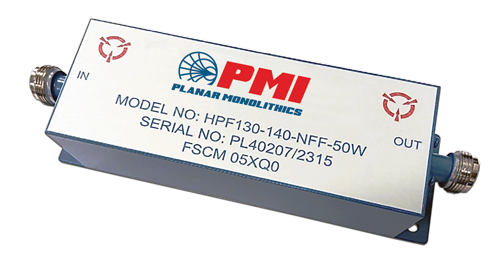

HPF130-140-NFF-50W Active	Active	0.13 to 0.55	0.13	1 dB
7HP-800-600-3A-SMF Active	Active	0.8 to 10	0.78	1 dB
HP10G-9D7-CD-292FF Active	Active	10 to 27	9.7	1.5 dB Max
HP19G40G-292FF Preliminary	Preliminary	19 to 40	19	2 dB Typ, 2.5 dB
HPF18G-DC15G Active	Active	18 to 26.5	18	1.5 dB Max
HP20G-19D5G-CD-292FF Active	Active	20 to 40	20 @ 1 dB	1.5 dB
HP8G-7D8G-CD-SFF Active	Active	8 to 22	7.8	1.5 dB Max
HP2G-1780-CD-SS-ROHS Active	Active	2 to 18	2	0.5 dB Typ
HP2G-1780-CD-SS-OPT2200 Active	Active	2.5 to 18	2.5	0.5 dB Typ, 1 dB Max

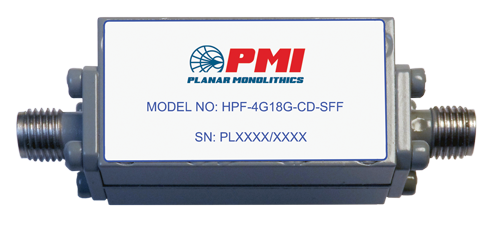

HPF-4G18G-CD-SFF Active	Active	6 to 18	5.5	1.5 dB Max
HP0R5G-18G-CD-SFM Preliminary	Preliminary	0.5 to 18	0.5	5 dB Max (0.5 GHz), 2 dB Max (1 to 16 GHz), 3 dB Max (18 to 16 GHz)
HP2G-1780-CD-SS Active	Active	2 to 18	2	0.5 Typ 1.0 Max
HP0R5G-18G-CD-SFF Active	Active	0.5 to 18	0.5	5 dB Max (0.5 GHz), 2 dB Max (1 to 16 GHz), 3 dB Max (18 to 16 GHz)

Part Number

Status

Passband Frequency (GHz)

Cut-Off Frequency (GHz)

Passband Insertion Loss (dB)

HPF-7D9G18D5G-SFM
Preliminary

Preliminary

7.9 to 18.5

7.9

1 dB Max

HPF-18G40G-292FF-HERM
Preliminary

Preliminary
