Digitally Tuned Oscillators

Planar Monolithics (PM)) offers a full line of Digitally Controlled Oscillators (DTOs), Dielectric Resonator Oscillators (DROs), Voltage Controlled Oscillators (VCOs) and Frequency Synthesizers covering various frequencies up to 40 GHz. Designed to withstand stringent military ground or airborne environments. All units offer fast switching speeds and stable frequency outputs with low phase noise.

If you do not see exactly what you need, please e-mail your requirement to sales@quanticpmi.com so we can propose an instant solution.


DTO-100M1D2G-3R5MBW Preliminary	Preliminary	0.1	1.2	±2 MHz Max @ +25 °C	-
DTO-2G6G-CD-1 Active	Active	2	6	±2 MHz Max @ +25 °C	±0.1 MHz / °C Max
DTO-0R5G2D5G-CD-1 Active	Active	0.5	2.5	±2.5 MHz Max @ +25 ºC	±0.1 MHz / °C Max
DTO-218-CD-NOMOD Preliminary	Preliminary	2	18	±0.1% Typ @ +25 °C	±0.1 MHz / °C Typ
AUM-50M100M-DTOK-3R5MBW Active	Active	0.05	0.1	±2 MHz Max @ +25 °C	-
DTO-6G19G-CD-1 Active	Active	6	19	±0.1% Max @ +25 ºC	±0.1 MHz / °C Max
AUM1001G-DTOK-3R5MBW Active	Active	0.1	1	±2 MHz Max @ +25 °C	-

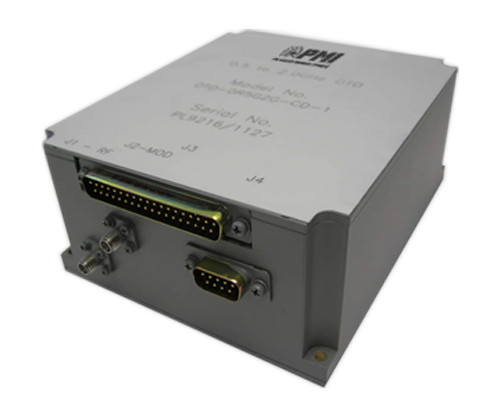

DTO-0R5G2G-CD-1 Active	Active	0.5	2	±2.5 MHz Max @ +25 ºC	±0.1 MHz / °C Max
DTO-6G18G-CD-1 Active	Active	6	18	±5 MHz Max @ +25 ºC	±0.1 MHz / °C Max
DTO-218-CD-1 Active	Active	2	18	±2 MHz Max @ +25 °C	±0.1 MHz / °C Max

Part Number

Status

Frequency Min (GHz)

Frequency Max (GHz)

Frequency Accuracy

Frequency Drift

DTO-100M1D2G-3R5MBW
Preliminary

Preliminary

0.1

1.2

±2 MHz Max @ +25 °C

DTO-2G6G-CD-1
Active
