Quantic PMI Lowpass filters are designed to offer very high Q with broadband performance with low loss and are ideal for eliminating broadband harmonics.  Quantic PMI offers many standard models in frequency bands up to 26.5 GHz or we can design and build to meet your specifications.  Military or Aerospace Screening available.

The following listing contains various lowpass filters that Quantic PMI has manufactured and produced for many different customers. This is just a small list which demonstrates our filter design capabilities.

If you do not see exactly what you need, please e-mail your requirement to sales@pmi-rf.com so we can propose an instant solution.

Part NumberStatusPassbandCut-Off FrequencySize
LPF26R5-28R5G40G-ROHSPreliminaryDC to 26500 MHz26500 MHz0.45" x 0.38" x 0.50"
LPF-DC25-SMAPrliminaryDC to 2500 MHz2500 MHz1.97" (L) x 0.79" (W) x 0.71" (H)
LP10G-11D5G-CD-SFFActiveDC to 10000 MHz10000 MHz0.75" x 0.50" x 0.60"
SSLP18G-18D5G-CD-SFFActiveDC to 18000 MHz18100 MHz2.100" x 0.785" x 0.500"
7LP120-125-CD-SFPActiveDC to 1 MHz1 MHz1.20" x 0.312"x 0.11"

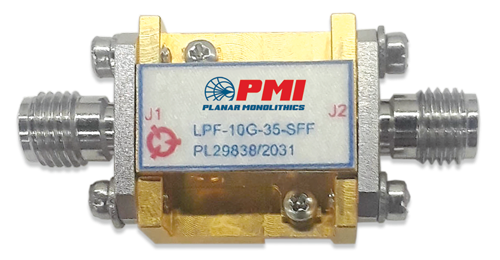

LPF-10G-35-SFFActiveDC to 8400 MHz Min(-3 dB) 10500 MHz Max0.685" x 0.70" x 0.255"
LPF-12G-35-SFFActiveDC to 10400 MHz Min(-3 dB) 12.5 MHz Max0.685" x 0.70" x 0.255"
LPF-8G-35-SFFActiveDC to 6400 MHz Min(-3 dBc) 8500 MHz Max0.685" x 0.70" x 0.255"
LPF-6G-35-SFFActiveDC to 4400 MHz Min(-3 dB) 6950 MHz Max0.685" x 0.70" x 0.255"
LP6200M-CD-MLLActiveDC to 6200 MHz6200 MHz1.220" x 0.590" x 0.031"
LP6200M-SM-CD-MLLActiveDC to 6200 MHz6200 MHz1.200" x 0.300" x 0.032"
LP5500M-SM-CD-MLLActiveDC to 5500 MHz5500 MHz1.200" x 0.300" x 0.032"
LP2600M-CD-MLLActiveDC to 2600 MHz2600 MHz1.220" x 0.590" x 0.031"
LP3900M-SM-CD-MLLActiveDC to 3900 MHz3900 MHz1.200" x 0.300" x 0.032"
LP4500M-SM-CD-MLLActiveDC to 4500 MHz4500 MHz1.200" x 0.300" x 0.032"
LP5200M-CD-MLLActiveDC to 5200 MHz5200 MHz1.220" x 0.590" x 0.031"
LP1000M-CD-MLLActiveDC to 1000 MHz1000 MHz1.220" x 0.590" x 0.031"
LP1300M-CD-MLLActiveDC to 1300 MHz1300 MHz1.220" x 0.590" x 0.031"
LP2100M-CD-MLLActiveDC to 2100 MHz2100 MHz1.220" x 0.590" x 0.031"
LP310M-CD-MLLActiveDC to 310 MHz310 MHz1.220" x 0.590" x 0.031"
LP3200M-CD-MLLActiveDC to 3200 MHz3200 MHz1.220" x 0.590" x 0.031"
LP3200M-SM-CD-MLLActiveDC to 3200 MHz3200 MHz1.200" x 0.300" x 0.032"
LP540M-CD-MLLActiveDC to 540 MHz540 MHz1.220" x 0.590" x 0.031"
LP800M-CD-MLLActiveDC to 800 MHz800 MHz1.220" x 0.590" x 0.031"
LP100M-CD-MLLActiveDC to 100 MHz100 MHz1.220" x 0.590" x 0.031"
LP190M-CD-MLLActiveDC to 190 MHz190 MHz1.220" x 0.590" x 0.031"
LP10G-11D5-CD-SFFActiveDC to 10000 MHz10000 MHz0.75" x 0.50" x 0.60"
LPF1R25-22R5-SFFActiveDC to 1250 MHz1250 MHz3.50" x 0.75" x 0.30"
LPF6-712-SFFActiveDC to 6000 MHz6000 MHz3.00" x 0.75" x 0.30"
LPF2-2R54-SFFActiveDC to 2000 MHz2000 MHz3.00" x 0.75" x 0.30"
LPF10-1220-SFFActiveDC to 10000 MHz10000 MHz2.50" x 0.75" x 0.30"
LPF3R5-47-SFFActiveDC to 3500 MHz3500 MHz3.00" x 0.75" x 0.30"
LPF-18-19-21R5-SMFPreliminaryDC to 18000 MHz18000 MHz0.60" x 0.62" x 0.50"
LPF-DC1R5-SFFPreliminaryDC to 1500 MHz1500 MHz1.50" x 1.38" x 0.39"
LPF-DC1R7G-SFFPreliminaryDC to 1700 MHz1700 MHz1.38" x 0.47" x 0.39"
5LP16G-18D1G-CD-SFFPreliminaryDC to 16000 MHz18100 MHz2.1" (L) x 0.785" (W) x 0.50" (H)
5LP18G-18D1G-CD-SFFActiveDC to 18000 MHz18100 MHz2.1" (L) x 0.785" (W) x 0.50" (H)
7LP30M-CD-SFFActiveDC to 30 MHz35 MHz3.0"L x 1.0"W x 0.75"H
8LP3G-3D1G-CD-SFFActiveDC to 3000 MHz3100 MHz1.4 x 1.25 x 0.50
8LP4D19G-CD-SFFPreliminaryDC to 4190 MHz4190 MHz1.40" x 1.25" x 0.50"
LP1610-1627-CD-SFMPreliminaryDC to 120 MHz1700 MHz1.614" x 1.339" x 0.394"
LP-DC120M-NFF-1WPreliminaryDC to 120 MHz120 MHz1.38" x 0.94" x 0.83"
7LP400-410-3B-SFFPreliminaryDC to 400 MHz410 MHz1.5 x 0.5 x 0.5
9LP290-3B-SFFActiveDC to 290 MHz300 MHz1.5 x 0.5 x 0.5
LP11G-12D7G-CD-SFFActiveDC to 10000 MHz10000 MHz1.094" x 0.5" x 0.5"
LP90-100-3B-SSPreliminaryDC to 90 MHz100 MHz1.5"L x 0.5"W x 0.5"H
11LP425-475-CD-SFFPreliminaryDC to 425/475 MHz500 MHz Min2.00" x 0.50" x 0.50"
LP13G-13D65-CD-SFFPreliminaryDC to 13000 MHz13650 MHz1.1" x 0.3" 0.66"
LP2D5G-2D7G-CD-SMFPreliminaryDC to 2500 MHz2700 MHz0.75 x 0.31 x 0.31
LPF100-140-NFF-50WActiveDC to 100 MHz100 MHz2.0" x 6.0" x 1.25"
7LP120-125-CD-SFFActiveDC to 1 MHz1 MHz0.605" x 0.312"
LP2400-3G-SFFActiveDC to 2400 MHz2400 MHz2.0" x 1.0" x 0.5"

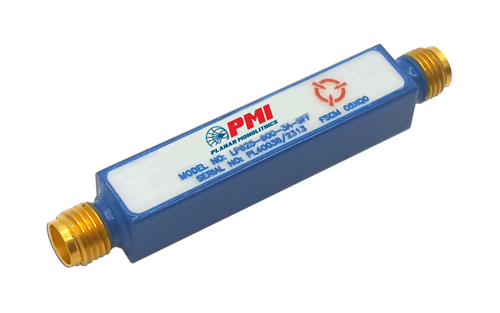

LP625-600-3A-SFFPreliminaryDC to 600 MHz600 MHz1.5 x 0.31 x 0.31
7LP6G-6175-CD-SSActiveDC to 6000 MHz6000 MHz1.08" x 0.50" x 0.75"
7LP6G-6175-CD-TNCActiveDC to 6000 MHz6000 MHz1.08" x 0.50" x 0.75"
8LP7G-7050-CD-SFFActiveDC to 7000 MHz7000 MHz1.10" x 0.30" x 0.66"
LPF26R5-28R5G40GActiveDC to 26500 MHz26500 MHz0.45" x 0.38" x 0.50"
8LP11G-11D5G-CD-SFFActiveDC to 11000 MHz11000 MHz1.2" x 0.5" x 0.5"
LP2400-3G-MAH-SFFActiveDC to 2400 MHz2400 MHz1.25" x 0.31" x 0.31"
9LP7500-7750-CD-SSActiveDC to 7500 MHz7750 MHz1.26" x 0.66" x 0.28"
