| Part Number | Status | Frequency Min (GHz) | Frequency Max (GHz) | Input Power (W) | Isolation (dB) | Amplitude Balance (dB) | Phase Balance (°) | Insertion Loss (dB) |
|---|---|---|---|---|---|---|---|---|
| PCH-180-0R9G5G-50W-SFF | Preliminary | 0.9 | 6 | 16 Min | ±1.0 Max | ±12 Max | 1.9 Max | |
| QC-12-180-NFF Preliminary | Preliminary | 1 | 2 | 18 Min | ± 0.6 Max | ±6 Max | 0.4 Max | |
| QC-24-180-SFF Preliminary | Preliminary | 2 | 4 | 22 Min | ±0.4 Max | ±5 Max | 0.4 Max | |
| QC-48-180-SFF Preliminary | Preliminary | 4.0 | 8.0 | Average: 20 Max Peak: 1000 Max | 20 Min | ±0.5 Max | ±5 Max | 0.7 Max |
| PCH-180-5R6G5R8G-SFF Active | Active | 5.6 | 5.8 | 50 | 20 Min | ±0.3 Max | ±3 Max | 0.5 Max |
| PCH-180-1R5G2R15G-SFF Preliminary | Preliminary | 1.5 | 2.15 | 20 | 20 min. | ±0.3 max. | ±3 max. | 0.35 max. |
| PCH-180-1G1R5G-SFF Active | Active | 1 | 1.5 | 20 | 20 Min | ±0.3 Max | ±3 Max | 0.35 Max |
| PCH-180-2R15G3G-SFF Active | Active | 2.15 | 3 | 20 | 20 Min | ±0.3 Max | ±3 Max | 0.6 Max |

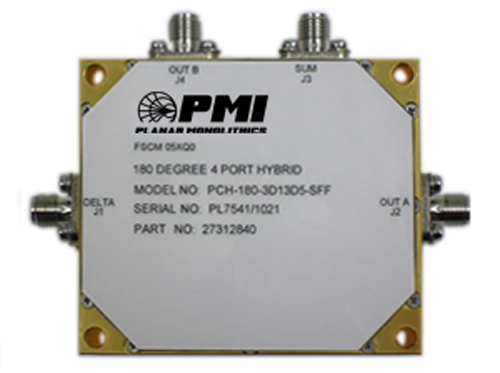

| PCH-180-3D13D5-SFF Active | Active | 3.1 | 3.5 | 50 W | 20 dB Typ | ±0.3 dB Typ | ±3 Typ | 0.4 dB Typ |
