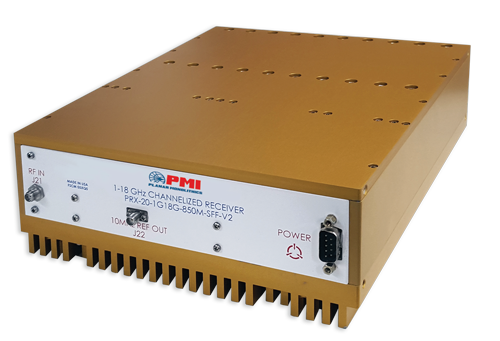

Receiver Front Ends & Transceivers

Integrated Assemblies (IMAs) Example Products | Transceivers & Receiver Front End Products

Planar Monolithics (PMI) designs and manufactures a wide variety of high frequency Receiver Front Ends and Transceivers for state-of-the-art applications. PMI is developing and offering these systems that interface with Open VPX architecture and use VITA 67 high frequency interconnects. Standard models are available. PMI can also design a device to meet your specific requirements.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.


PTRAN-100M18G-SDLVA-2SFB-3UVPX-P4-MAH Active	Active	PMI Model PTRAN-100M18G-SDLVA-2SFB-3UVPX-P4-MAH is a Transceiver covering 0.01 to 18 GHz and fits into a 3U Open VPX form factor utilizing a high-speed VITA 67 connector. This unit up-converts a 0.1 to 4 GHz transmit signal to the 2 to 18 GHz range. The unit also down-converts a 0.01 to 18 GHz received signal to the 0.1 to 4 GHz intermediate frequency range for analog to digital conversion. A receive filter bank incorporates a 2-way absorptive switch to select an input, along with two 6-way switches allowing one of six filter paths to be chosen. A second receive switching filter bank provides an additional five filter paths. Two filter banks are also used on the transmit path, with two six-way switches allowing one of six filter paths to be chosen in the first, and an additional five filter paths are included in the second. The unit is made to attach an FPGA card allowing for a total solution.
PTRAN-100M18G-SDLVA-SFB-3UVPX-10HP-MAH Active	Active	PMI Model PTRAN-100M18G-SDLVA-SFB-3UVPX-10HP-MAH is a transceiver covering the frequency range of 0.1 to 18 GHz. The transceiver fits into a 3U open VPX form factor utilizing the high-speed VITA 67 RF connector. This unit up-converts a 0.1 to 4 GHz transmit signal to the 2.0 to 18.0 GHz range. It also down-converts a 0.1 to 18 GHz received signal to the 0.1 to 4 GHz intermediate frequency range for analog to digital conversion. A receive filter bank incorporates a 2-way absorptive switch to select an input, along with two 6-way switches allowing one of six filter paths to be chosen. A filter bank is also used on the transmit path, with two 6-way switches allowing one of six filter paths to be chosen. The unit is made to attach to an FPGA controller card allowing for a solution in a 10 HP (2") form factor.
PTRAN-100M18G-SDLVA-SFB-3UVPX-10HP-MAH-MX Active	Active	PMI Model PTRAN-100M18G-SDLVA-SFB-3UVPX-10HP-MAH-MX is a transceiver that covers the frequency range of 0.1 to 18 GHz and fits into a 3U open VPX form factor utilizing the high-speed VITA 67 RF connector. This unit up-converts a 0.1 to 4 GHz transmit signal to the 2 to 18 GHz range and down-converts a 0.1 to 18 GHz received signal to the 0.1to 4 GHz intermediate frequency range for analog to digital conversion. A receive filter bank incorporates a 2-way absorptive switch to select an input, along with two 6-way switches allowing one of six filter paths to be chosen. A filter bank is also used on the transmit path, with two 6-way switches allowing one of six filter paths to be chosen. The unit is designed to attach to an FPGA controller card allowing for a total solution in a 10 HP (2”) form factor.

Part Number

Status

Product Details

PTRAN-100M18G-SDLVA-2SFB-3UVPX-P4-MAH
Active

Active

PMI Model PTRAN-100M18G-SDLVA-2SFB-3UVPX-P4-MAH is a Transceiver covering 0.01 to 18 GHz and fits into a 3U Open VPX form factor utilizing a high-speed VITA 67 connector. This unit up-converts a 0.1 to 4 GHz transmit signal to the 2 to 18 GHz range. The unit also down-converts a 0.01 to 18 GHz received signal to the 0.1 to 4 GHz intermediate frequency range for analog to digital conversion. A receive filter bank incorporates a 2-way absorptive switch to select an input, along with two 6-way switches allowing one of six filter paths to be chosen. A second receive switching filter bank provides an additional five filter paths. Two filter banks are also used on the transmit path, with two six-way switches allowing one of six filter paths to be chosen in the first, and an additional five filter paths are included in the second. The unit is made to attach an FPGA card allowing for a total solution.

PTRAN-100M18G-SDLVA-SFB-3UVPX-10HP-MAH
Active

Active

PMI Model PTRAN-100M18G-SDLVA-SFB-3UVPX-10HP-MAH is a transceiver covering the frequency range of 0.1 to 18 GHz. The transceiver fits into a 3U open VPX form factor utilizing the high-speed VITA 67 RF connector. This unit up-converts a 0.1 to 4 GHz transmit signal to the 2.0 to 18.0 GHz range. It also down-converts a 0.1 to 18 GHz received signal to the 0.1 to 4 GHz intermediate frequency range for analog to digital conversion. A receive filter bank incorporates a 2-way absorptive switch to select an input, along with two 6-way switches allowing one of six filter paths to be chosen. A filter bank is also used on the transmit path, with two 6-way switches allowing one of six filter paths to be chosen. The unit is made to attach to an FPGA controller card allowing for a solution in a 10 HP (2") form factor.

PTRAN-100M18G-SDLVA-SFB-3UVPX-10HP-MAH-MX
Active

Active

PMI Model PTRAN-100M18G-SDLVA-SFB-3UVPX-10HP-MAH-MX is a transceiver that covers the frequency range of 0.1 to 18 GHz and fits into a 3U open VPX form factor utilizing the high-speed VITA 67 RF connector. This unit up-converts a 0.1 to 4 GHz transmit signal to the 2 to 18 GHz range and down-converts a 0.1 to 18 GHz received signal to the 0.1to 4 GHz intermediate frequency range for analog to digital conversion. A receive filter bank incorporates a 2-way absorptive switch to select an input, along with two 6-way switches allowing one of six filter paths to be chosen. A filter bank is also used on the transmit path, with two 6-way switches allowing one of six filter paths to be chosen. The unit is designed to attach to an FPGA controller card allowing for a total solution in a 10 HP (2”) form factor.
