Digital Phase Shifters

Quantic PMI offers a comprehensive portfolio of in-stock high quality digital phase shifters designed for a variety of Aerospace & Defense applications, including satellite communications, beamforming modules, phase cancellation, communications antennas, phased-array radar, phase modulators, frequency up-converters, and test instrumentation.  These models offer up to 360° phase shift, frequency coverage up to 40 GHz, low insertion loss, high phase accuracy, custom packaging or form factor can be supplied (Usually without a NRE charge), Hermetic Sealing, Military or Space Screening.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Part NumberStatusFrequency Min (GHz)Frequency Max (GHz)Insertion Loss (dB)Phase Shift RangeNo. Control Bits
PS-360-0R5G2G-10B-SFM-7720A
Preliminary		Preliminary0.5211.5 dB Max360°10 Bit TTL
PS-360-2G4R3G1R-6B-SFF
Active		Active2.43.17.5 dB Max360°6 Bit
PS-360-16G22G-10B-SFF
Active		Active162211.5 dB Typ360°10 Bit TTL
PS-500M2G-360-10B
Preliminary		Preliminary0.5213 dB Max360°10 Bit
PS-618-45-12B-SFF OPT1518
Preliminary		Preliminary61815 dB Max45° Nom (45° - 1 LSB)12 Bit
PS-618-45-14B-SFF-OPT1518
Preliminary		Preliminary61815 dB Max45° Nom (45° - 1 LSB)14 Bit
PS-100M20G-8B-SFF-MIL-SM
Active		Active0.12013 dB Max360° Typ8 Bit TTL
PS-500M2G-10B-SFF-MIL-SM
Active		Active0.5213 dB Max360° Typ10 Bit TTL

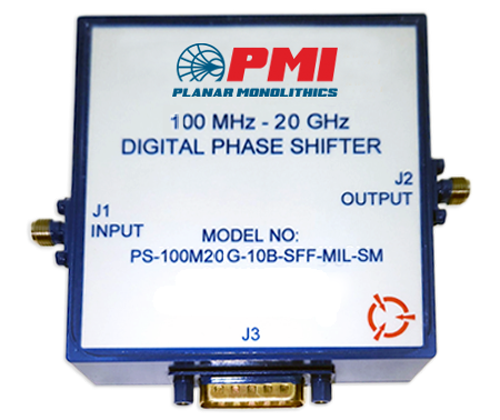

PS-100M20G-10B-SFF-MIL-SM
Active		Active0.12013 dB Max360° Typ10 Bit TTL
PS-618-360-14B-SFF OPT1518
Preliminary		Preliminary61812 dB Max360° Nom (0 to 360° - 1 LSB)14 Bits
PS-500M2G-10B-SFF-MIL
Preliminary		Preliminary0.5213 dB Max360° Typ10 Bit TTL
PS-30M2G-9B-SFF
Preliminary		Preliminary0.03213 dB Max360° Max9 Bit TTL
PS-30M2G-8B-SFF
Active		Active0.03214 dB Max360° Max8 Bit TTL
PS-360-DC-3 OPTION 618-15D-10BIT-TS
Preliminary		Preliminary61812 dB Max, 10 dB Typ360° (256 Steps)10 Bit
PS-360-DC-3 OPTION 89-15D-10BIT-TS
Preliminary		Preliminary8910 dB Max, 8 dB Typ360° (256 Steps)10 Bit TTL
PS-200M4G-12B-SFF
Active		Active0.2410.5 dB Typ360°12 BIT TTL
PS-2G20G-360-12D-TS
Preliminary		Preliminary22020 dB Typ360°12 Bit TTL
PS-85M4G-8B-SFF-ROHS
Preliminary		Preliminary0.085413 dB Max360° Typ8 Bit TTL
PS-2G18G-360-14D-TS OPT812
Preliminary		Preliminary81218 dB Max360°14 Bit (TTL)
PS-812-360-14B-SFF OPT10D27
Active		Active81212 dB Max360°14 Bits, +3.3 V RS-422 Differential (+5 V Tolerant)
PS-812-360-14B-HS-SFF
Active		Active81212 dB Max (10.27 ± 0.5 GHz),
12.5 dB Max (8 to 12 GHz)		360°14 Bits, +3.3 V RS-422 Differential (+5 V Tolerant)
PS-360-DC-7928A Options 618, 7928A
Preliminary		Preliminary6183 dB Typ360°8 Bit TTL
PS-200M2G-8B-SFF-OPT480M
Preliminary		Preliminary0.460.510.5 dB Typ360°8 Bit TTL
PS-360-3237-10-292FF
Preliminary		Preliminary323713 dB Typ358.59°10 Bit TTL
PS-2G18G-360-12D-TS-OPT26
Preliminary		Preliminary2618 dB Max360°12 Bit TTL
PS-2G18G-360-12D-TS-OPT618
Preliminary		Preliminary61818 dB Max360°12 Bit TTL
PS-2G18G-360-12D-TS
Active		Active21818 dB Max360°12 Bit TTL
PDPS-510-6-LC
Preliminary		Preliminary51014 dB Max180°6 Bit TTL
PDPS-515G535G-360-2B
Preliminary		Preliminary5.155.356.5 dB Typ270°2 Bit TTL
PS-204-1G2G-8B-SFF-LM
Preliminary		Preliminary126 dB Typ204°8 Bit TTL
PS-24R3G24R4-360-10B
Preliminary		Preliminary24.324.414 dB Max360°10 Bit TTL
PS-2G18G-360-8D-HT
Preliminary		Preliminary21818 dB Max360° Typ8 Bit TTL
PS-2G6G-8B-SFF-OPT1G1D1G
Preliminary		Preliminary11.110.5 dB Typ360°8 Bit TTL
PS-360-19D5G20D5G-10B-SFF
Preliminary		Preliminary19.520.511.5 dB Typ360°10 Bit TTL
PS-360-2R2G2R3G-6-SFF
Preliminary		Preliminary2.22.3
-
360°6 Bit TTL
PS-360-6G18G-5-SFF
Preliminary		Preliminary6188 dB Max348.75°5 Bit TTL
PS-360-700M1100M-6-SFF-OPT1020
Preliminary		Preliminary1.021.17.5 dB goal354.4°6 Bit TTL
PS-360-7R98R6G-6-SFF
Preliminary		Preliminary7.98.6
-
360°6 Bit TTL
PS-360-900M930M-6-SFF
Active		Active0.90.937 dB Typ354.4°6 Bit TTL
PS-360-DC-3 OPTION 618-15D-6D25G
Preliminary		Preliminary6.256.255 dB Typ360° Typ8 Bit TTL
PS-85M4G-6B-SFF-OPT100M300M
Preliminary		Preliminary0.10.313 dB Max360° Typ6 Bit TTL
PSA-12G14G-10D
Preliminary		Preliminary12147 dB Max360°10 Bit TTL
PSD-25R5G27G-360
Preliminary		Preliminary25.5279 dB Max360°8 Bit TTL
PSD-25R5G27G-360-OPT25R2527R25
Preliminary		Preliminary25.2527.259 dB Max360°8 Bit TTL
PSDM-25R5G27G-360
Preliminary		Preliminary25.52712 dB Max360°8 Bit TTL
PS-100M1200M-9B-SFF
Active		Active0.11.213 dB Max360° Typ9 Bit TTL
PS-2G18G-360-12D
Preliminary		Preliminary21818 dB Max360°12 Bit TTL
PS-2G18G-360-16D
Preliminary		Preliminary21818 dB Max360°16 Bit TTL
PS-2G18G-360-16D-OPT6G18G
Preliminary		Preliminary61818 dB Max360°16 Bit TTL
PS-2G6G-8B-SFF-OPT2R1G4R8G
Preliminary		Preliminary2.14.810.5 dB Typ360°8 Bit TTL
PS-360-1G2G-10B-SFF
Preliminary		Preliminary125.5 dB360°10 Bit TTL
PS-360-2832-5-292FF
Preliminary		Preliminary283212 dB Max348.75°5 Bit TTL
PS-360-DC-1R-810
Active		Active81011.5 dB Max359.65°10 Bit TTL
PS-360-DC-3-OPT6R7G12R8G-15D
Preliminary		Preliminary6.712.812 dB Max360° Typ8 Bit TTL
PS-360-DC-IR-9G10G
Active		Active91011.5 dB Max359.65°10 Bit TTL
PS-360-DC-IR-9G11G
Active		Active9118 dB Typ360°10 Bit TTL
PS-4G12G-360-12B-SFF
Preliminary		Preliminary41216 dB Max360° Typ12 Bit TTL
PS-4G6G-10B-SFF
Preliminary		Preliminary46
-
360°10 Bit TTL
PS-500M2G-10B-SFF-E
Preliminary		Preliminary0.4213 dB Max360° Typ10 Bit TTL
PS-85M4G-9B-SFF-OPT100M600M
Preliminary		Preliminary0.10.613 dB Max360° Typ9 Bit TTL
PSAT-9G11G-360D-60DB-10D
Preliminary		Preliminary91112 dB Typ360°2 x 10 Bit TTL
PDPS-105F-6
Active		Active1.51.59 dB Max354.2°6 Bit TTL
PDPS-5F-6
Preliminary		Preliminary5.45.96.5 dB Max354.2°6 Bit TTL
PS-12-360-QQ1470
Active		Active126 dB Max360° Typ8 Bit TTL
PS-2G18G-360-8D-OPT4G16G
Preliminary		Preliminary41618 dB Max360°8 Bit TTL
PS-360-8D5G11G-8-SFF-LVT
Active		Active8.5118 dB Typ360°8 Bit TTL
PS-360-DC-3 OPTION 618-15D-10R712R75
Preliminary		Preliminary10.712.712 dB Max,
10 dB Typ		360° (256 Steps)8 Bit TTL
PS-360-DC-3 OPTION 713-15D
Preliminary		Preliminary71312 dB Max,
10 dB Typ		360° (256 Steps)8 Bit TTL
PS-360-DC-IR-14G14D5G
Active		Active1414.511.5 dB Max359.65°10 Bit TTL
PS-4G10G-8B-SFF
Active		Active41010.5 dB Typ360°8 Bit TTL
PS-85M4G-9B-SFF-OPT30M400M
Preliminary		Preliminary0.030.413 dB Max360° Typ9 Bit TTL
PDPS-510-6
Preliminary		Preliminary5106.5 dB Max354.2°6 Bit TTL
PS-204-1G2G-8B-SFF
Active		Active126 dB Typ204°8 Bit TTL
PS-255-2G18G-8B-SFF-OPT25
Preliminary		Preliminary253 dB Typ255°8 Bit TTL
PS-2D2G-360-CD-1
Active		Active2.172.213 dB Typ360°9 Bit TTL
PS-360-DC-3 OPT 618-15D-12B
Preliminary		Preliminary61812 dB Max360°12 Bit TTL
PS-360-DC-IR-9D510D5
Active		Active9.510.511.5 dB Max359.65°10 Bit TTL
PS-400M2000M-360-8D
Active		Active0.4213 dB Max360° Typ8 Bit TTL
PS-2G18G-360-12D-OPT6G18G
Active		Active61818 dB Max360°12 Bit TTL
PS-2G18G-360-16D-TS
Preliminary		Preliminary21818 dB Max360°16 Bit TTL
PS-360-3237-5-292FF
Active		Active32378 dB Max348.75°5 Bit TTL
PS-360-8G10G-8-SFF-LVT-15D
Preliminary		Preliminary81010 dB Typ,
12 dB Max		360° MinPositive Binary 8 Bit LVTTL
PS-360-DC-1 Option 911
Active		Active91112 dB Max358.6°8 Bit TTL

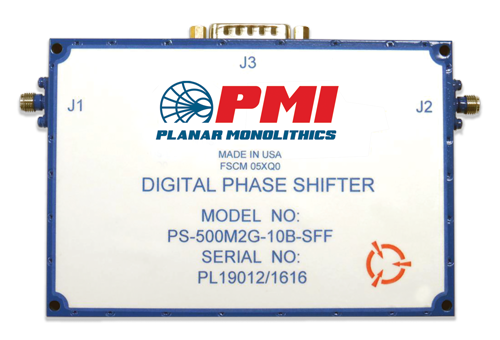

PS-500M2G-10B-SFF
Active		Active0.5213 dB Max360° Typ10 Bit TTL
PS-504509-360-QQ1470
Active		Active5.45.96 dB Max360º5 Bit TTL
PS-12-360-QQ1470 Option 107
Active		Active1.71.76 dB Max360° Typ8 Bit TTL
PS-255-2G18G-8B-SFF
Active		Active21818 dB Typ255°8 Bit TTL
PS-360-90-2-202F
Active		Active1.72.35.5 dB360°2 Bit TTL
PS-85M4G-8B-SFF
Active		Active0.085413 dB Max360° Typ8 Bit TTL
PS-200M2G-8B-SFF
Active		Active0.2210.5 dB Typ360° Typ8 Bit TTL
PS-2G18G-360-8D-OPT212
Active		Active21218 dB Max360°8 Bit TTL
PS-360-8D5G11G-8-SFF-LVT-15D *
Active		Active8.51110 dB Typ360°8 Bit TTL
PS-85M4G-9B-SFF
Active		Active0.085413 dB Max360° Typ9 Bit TTL
PS-360-2832-5-292FF-OPT10B
Active		Active283212.5 dB Max359°10 Bit TTL
PS-360-DC-3 OPTION 812-15D
Active		Active81214 dB Max360° (256 Steps)8 Bit TTL
PS-3R5G6R5G-10B-SFF
Active		Active3.56.510 dB Typ,
11 dB Max		360°10 Bit TTL

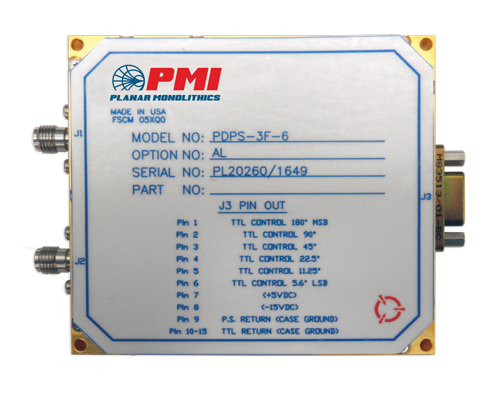

PDPS-3F-6-AL
Active		Active2.75 (Functional from 2.3)3.25 (Functional up to 3.8)9 dB Typ354.2°6 Bit TTL
PS-200M4G-8B-SFF
Active		Active0.2410.5 dB Typ360°8 Bit TTL
PS-2G6G-8B-SFF
Active		Active2610.5 dB Typ360°8 Bit TTL
PS-360-2433D5-6-SFF-1
Active		Active2.4332.4336 dB Typ,
8 dB Max		360°6 Bit TTL
PS-360-3237-8-292FF
Active		Active323713 dB Typ358.59°8 Bit TTL
PS-3R4G4R2G-10B-SFF
Active		Active3.44.210 dB Typ,
11 dB Max		360°10 Bit TTL
PS-500M2G-8B-SFF *
Active		Active0.5213 dB Max360°8 Bit TTL
PS-360-DC-3 OPTION 618-15D-10BIT-ROHS
Preliminary		Preliminary61812 dB Max360° Typ10 Bit TTL
PS-200M10G-8B-SFF
Active		Active0.21010.5 dB Typ360° Typ8 Bit TTL
PS-360-DC-3 OPTION 618-15D *
Active		Active61812 dB Max360° Typ8 Bit TTL
PS-2G18G-360-8D
Active		Active21818 dB Max360°8 Bit TTL
PS-360-DC-3 OPTION 618-15D-10BIT
Active		Active61812 dB Max360° Typ10 Bit TTL
PS-200M10G-8B-STRB-SFF
Active		Active0.21010.5 dB Typ360°8 Bit TTL
PS-360-8D5G11G-6-SFF
Preliminary		Preliminary8.51110 dB Typ, 12 dB Max360° MinPositive Binary 6 Bit
