Part NumberStatusFrequency MinFrequency MaxReflective / AbsorptiveIsolationInsertion LossInput Power
P1T-500M40G-55-T-292FF-75DB-ROHSPreliminary500 MHz40 GHz
-
-
-
+20 dBm CW Max
P1T-DC40G-65-T-292MF-1NS-OPT27GActive50 MHz27 GHzAbsorptive65 dB Typ, 55 dB Min5.5 dB Typical, 6.8 dB Max.+17 dBm cw Max.
P1T-1G18G-85-R-5V-SFF-HIP10WActive1.0 GHz18.0 GHz
-
85 dB4.0 dB max., 3.0 dB goal10 W CW max. operating (Not to be Switched Any Higher than 50 kHz (PRI))
P1T-2G6G-25-6NS-ECL-AKGActive2.0 GHz6.0 GHz
-
25 dB min.5 dB max.
-
P1T-2G6G-25-6NS-ECLActive2.0 GHz6.0 GHz
-
25 dB min.5 dB max.
-
P1T-1G18G-75-T-SFFPreliminary1.0 GHz18.0 GHzAbsorptive75 dB min.3 dB max.+30 dBm max. (Survival)
+20 dBm max. (Operating)
P1T-1218-55-T-SFFPreliminary12.0 GHz18.0 GHzAbsorptive60 dB min.2.5 dB max.
-
P1T-2G8G-55-R-TNC-100WPreliminary2.0 GHz8.0 GHzReflective55 dB min.1.5 dB max.
-
P1T-2G18G-60-T-SFF-XSMLPreliminary2.0 GHz18.0 GHzAbsorptive60 dB Min.1.3 dB Max. @ 2.0 to 4.0 GHz, 1.5 dB Max. @ 4.0 to 8.0 GHz, 2.0 dB Max @ 8.0 to 12.0 GHz, 2.1 dB Max @ 12.0 to 18.0 GHz
-
P1T-0R5G18G-60-R-SFFPreliminary0.5 GHz18 GHzReflective60dB min.2.5dB max.+20dBm CW
P1T-0R5G18G-60-T-512-SFF-OPT100M2GPreliminary0.1 GHz2.0 GHzAbsorptive60 dB min.1.5 dB max.+20 dBm CW
P1T-0R5G18G-60-T-SFF-OPT100M2GPreliminary0.1 GHz2 GHzAbsorptive60dB min1.5dB max+20dBm CW
P1T-1G18G-65-R-SFF-OPT26Preliminary2.0 GHZ6.0 GHzReflective65 dB min1.0 dB max+20 dBm max
P1T-1G18G-65-R-SFF-OPT618Preliminary6.0 GHZ18.0 GHzReflective65 dB min2.5 dB max+20 dBm max
P1T-200M18G-80-T-SFF-F192A-PTBPreliminary0.2 GHz18 GHzAbsorptive80 dB min.3.5 dB max+27 dBm
P1T-218-60-R-512-SFFPreliminary2 GHz18 GHzReflective55dB min. @ 2.0 to 4.0GHz, 65dB min. @ 4.0 to 8.0GHz, 60dB min. @ 8.0 to 18.0GHz2.4dB max.500mW CW max
P1T-2G18G-60-T-SFFPreliminary2 GHz18 GHzAbsorptive60 dB min3.5 dB max+10 dbm CW max (Operating)
P1T-2G18G-60-T-SFF-3WPreliminary2 GHz18 GHzAbsorptive60dB min1.0dB typ, 2.5dB max3 Watts Peak, 2% Duty Cycle, 50nsec PW
P1T-2G18G-70-R-515-SFFPreliminary2 GHz18 GHzReflective70dB min2.2dB max+15dBm max
P1T-2G4G-55-R-SFFPreliminary2.0 GHZ4.0 GHzReflective55 dB max.1.1 dB max.+20 dBm CW max.
P1T-2G4G-75-T-SFF-OPT1950-4250Preliminary1.95 GHz4.25 GHzAbsorptive75 dB Min1.1 dB Max+30 dBm max (Survival), +23 dBm max (Operating)
P1T-500M18G-80-R-SMM-SW21841APreliminary0.5 GHz18 GHzReflective45 dB min (0.5 to 1.0GHz), 70 dB min (1.0 to 2.0GHz), 85 dB min (2.0 to 12.4GHz), 80 dB min (12.4 to 18.0GHz)1.0dB max (0.5 to 2.0GHz), 1.2dB max (2.0 to 4.0GHz), 1.5dB max (4.0 to 8.0GHz), 2.0dB max (8.0 to 12.4GHz), 2.5dB max (12.4 to 18.0GHz)2 W Average, 10 W Peak @ 1 usec PW
P1T-500M18G-80-T-SFFPreliminary0.5 GHz18 GHzAbsorptive80dB typ3.5dB max+20dBm CW
P1T-500M40G-55-T-292FF-75DBActive0.5 GHz40 GHzAbsorptive75 dB Min. - Measured 80 dB6.0 dB Max. - Measured 6.0 dB+20 dBm CW Max
P1T-6G18G-60-T-SFF-1W-OPT28Preliminary2.0 GHZ8.0 GHzAbsorptive65 dB min2.75 dB max+30 dBm max
P1T-6R5G18G-55-R-SFFPreliminary6.5 GHZ18.0 GHzReflective55 dB min.2.4 dB max.+20 dBm CW max
P1T-7G18G-60-T-2WActive7 GHz18 GHzTerminated60 dB min.* - Measured 86 dB3.0 dB max.** - Measured 2.9 dB2 Watts (30% Duty Cycle and 130 us Pulse Width) Hot Switching
P1T-DC18G-60-T-SFF-OPT2G8GPreliminary2 GHz8 GHzAbsorptive60 dB typ., 55 dB min4.5 dB typ., 5.0 dB max.+17 dBm CW max
P1T-DC18G-60-T-SFF-OPTION20M6GPreliminary0.02 GHz6 GHzAbsorptive60dB typ, 55dB min4.5dB typ, 5.0dB max+17dBM CW max
P1T-DC40G-65-T-292FF-1NS-OPT27GPreliminary0.05 GHz27 GHzAbsorptive65 dB typ, 55 dB min5.5 B typ, 6.8 dB max+17dBM CW max
P1T-DC40G-65-T-SFF-1NS-OPT1G-SMAPreliminaryDC1 GHzAbsorptive65 dB Typ, 55 dB Min5.5 dB typ, 6.8 dB Max+17 dBm CW Max
P1T-LIM-9G9D5G-70-T-PINPreliminary9 GHz9.2 GHzAbsorptive70 dB min.1.7 dB max. @ -10 dBm max.2 W max.
P2T-4G8G-70-T-SFF-OPT7R7G8R5GActive7.7 GHz8.5 GHzAbsorptive25 dB Min. - Measured 88.99 dB1.9 dB Max. - Measured 1.46 dB+30 dBm Max (Survival), +20 dBm Max (Operating)
PMSNN-1DR-2G18G-022T-STDPreliminary2 GHz18 GHzReflective70dB min2.2dB max+15dBm max

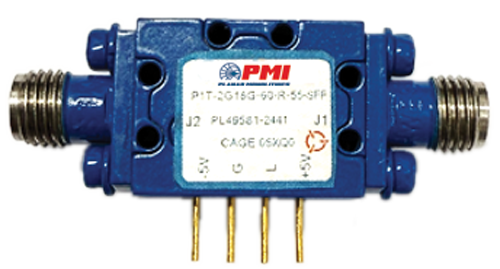

PST-2G18G-60-T-55-SFFPreliminary2 GHz18 GHzAbsorptive60 dB min.2 dB max.
-
PST-2G18G-60-T-55-SFF-OPTHSPreliminary2 GHz18 GHzAbsorptive60 dB min.2.8 dB max
-
MPM-1002Active8 GHz18 GHz
-
55 dB Min - Measured 61.03 dBc2.5 dB Max - Measured 2.48 dB0.5 Watts Min
P1T-0R5G18G-60-T-512-SFFActive0.5 GHz18 GHzAbsorptive60dB (0.5 to 2.0GHz) (102.06dB Measured), 70dB (2.0 to 18.0GHz) (89.45dB Measured)3.5dB max+20dBm CW
P1T-10M1G-80-R-SFF *Active0.01 GHz1 GHzReflective80 dB typ. - Measured 81.74 dB1.0 dB typ. - Measured 0.64 dB+30 dBm max (Survival), +20 dBm max (Operating)
P1T-200M18G-80-T-SFF-F192AActive0.2 GHz18 GHzAbsorptive70 dB min (0.2 to 0.5GHz), 80 dB min (05. to 18.0GHz) - Measured 83.8 dB3.5 dB max - Measured 2.4 dB+27 dBm "Hot Switching" max
P1T-200M18G-80-T-SFF-F192A-OPT1G6GPreliminary1.0 GHz6.0 GHzAbsorptive80 dB min.3.5 dB max.+27 dBm "Hot Switching" max
P1T-200M18G-80-T-SFF-RLActive0.2 GHz18 GHzAbsorptive70 dB min (0.2 to 0.5 GHz), 80 dB min (05. to 18.0 GHz) - Measured 86.33.5 dB max - Measured 2.4 dB+27 dBm "Hot Switching" max
P1T-200M18G-80-T-SFF-RL-PTBActive0.2 GHz18.0 GHzAbsorptive70 dB min (0.2 to 0.5 GHz), 80 dB min (0.5 to 18.0 GHz) Measured 86.3 dB3.5 dB max - Measured 2.4 dB
-
P1T-24G40G-55-T-292FF-23DBMActive24 GHz40 GHzAbsorptive55 dB min - Measured 69.65 dB5.5 dB max - Measured 4.16 dB+23 dBm CW min P1DB - Measured +23 dBm CW min P1DB
P1T-26D532D5-90-1212-292FFActive26.5 GHz32.5 GHzAbsorptive90dB min.5.0dB max.+23dBm CW max.
P1T-2G18G-80-T-SFF-F192APreliminary2 GHz18 GHzAbsorptive80 dB min. (2.0 to 18.0 GHz)3.5 dB max+27 dBm "Hot Switching" max
P1T-4G8G-75-R-SFF *Active4 GHz8 GHzAbsorptive75 dB min - Measured 94 dB1.5 dB typ - Measured 1.302 dB+30 dBm Max (Survival), +20 dBm Max (Operating)
P1T-4G8G-75-T-SFF *Active4 GHz8 GHzAbsorptive75 dB Min1.8 dB Max+30 dBm Max (Survival), +20 dBm Max (Operating)
P1T-500K500M-90-SFFPreliminary0.0005 GHz0.5 GHzReflective90 dB Min. (500 kHz to 50 MHz), 80 dB Min. (50 MHz to 100 MHz), 70 dB Min. (100 MHz to 200 MHz), 60 dB Min. (200 MHz to 250 MHz)5.0 dB Max. (2 MHz to 100 MHz), 6.0 dB Max. (1 MHz to 200 MHz), 7.0 dB Max. (0.5 MHz to 500 MHz)+4 dBm Max
P1T-9D25G-90-T-SFFActive9.25 GHz9.25 GHzAbsorptive90 dB min - Measured 98.5 dB2.7dB goal (Measured 1.79dB)+23dBm CW Max. (Operating)
P1T-9D25G-90-T-SFF-5WActive9.25 GHz9.25 GHzAbsorptive80dB min (Measured 97.89dB)1.5dB goal, 2.0dB max (Measured 1.21dB)+33dBm CW max
P1T-9D39D5-15-SFFActive9.3 GHz9.5 GHzReflective70dB min.3.0dB max.+15dBm CW max.
P1T-DC40G-65-T-292FF-1NS-OPT10M20GPreliminary0.01 GHz20 GHzAbsorptive60 dB typ., 50 dB min.4.5 dB typ., 5.0 dB max+17 dBm CW max
P1T-DC40G-65-T-292FF-1NS-OPT18G-55ActiveDC18 GHzAbsorptive60 dB Typ, 55 dB Min - Measured 62.10 dB4.5 dB Typ, 5.0 dB Max - Measured 3.79 dB+17 dBm CW Max
P1T-0R1G2R5G-80-T-SFF-F192APreliminary0.1 GHz2.5 GHzAbsorptive70 dB min.3.5 dB max.1 W (30 dBm)
P1T-0R5G18G-55-R-SFF-PN *Active0.5 GHz18 GHzReflective55 dB min - Measured 62.43 dB3.0 dB typ - Measured 2.56 dB+20 dBm CW max
P1T-12G18G-65-R-SFF *Active12 GHz18 GHzReflective65 dB Min - Measured 73.23 dB2.5 dB Typ - Measured 2.32 dB+30 dBm Max (Survival), +20 dBm Max (Operating)
P1T-1G18G-65-R-SFF *Active1 GHz18 GHzReflective65 dB min - Measured 70.95 dB2.5 dB typ - Measured 2.04 dB+30 dBm max (Survival), +20 dBm max (Operating)
P1T-1G2G-85-R-SFF *Active1 GHz2 GHzReflective80 dB min - measured 81 dB0.75 dB typ. - measured 0.26 dB+30 dBm max (Survival), +20 dBm max (Operating)
P1T-1G2G-85-T-SFF *Active1 GHz2 GHzAbsorptive80 dB min - Measured 88.79 dB0.9 dB typ. - Measured 0.58 dB+30 dBm max (Survival), +20 dBm max (Operating)
P1T-2G4G-55-T-SFFPreliminary2.0 GHz4.0 GHzAbsorptive55 dB min.1.8 dB max.+20 dBm CW max.
P1T-2G4G-75-T-SFF *Active2 GHz4 GHzAbsorptive75 dB Min - Measured 95 dB1.1 dB Max - Measured 0.9 dB+30 dBm max (Survival), +20 dBm max (Operating)
P1T-500M40G-55-R-292FF *Active0.5 GHz40 GHzReflective55 dB Min - Measured 55.54 dB5.0 dB Typ - Measured 4.01 dB+20 dBm CW Max
P1T-6G18G-80-T-SFF-F192APreliminary6.0 GHz18.0 GHzAbsorptive70 dB min.3.5 dB max.1 W (30 dBm)
P1T-8G12G-70-R-SFF *Active8 GHz12 GHzReflective70 dB min - Measured 82.44 dB1.8 dB typ - Measured 1.13 dB+30 dBm Max (Survival), +20 dBm Max (Operating)
P1T-DC40G-65-T-24FM-1NSActiveDC40 GHzAbsorptive65 dB typ., 55 dB min. - Measured 61.1 dB5.5 dB typ., 6.8 dB max. - Measured 6.4 dB+17 dBm CW max
P1T-DC40G-65-T-292FF-1NS-OPT812Active8 GHz12 GHzAbsorptive70dB typ, 60dB min3.5dB typ, 4.0dB max+17 dBm CW max
P1T-DC40G-65-T-SFF-1NS-OPT1GActiveDC1 GHzAbsorptive65 dB Typ, 55 dB Min - Measured 62.74 dB5.5 dB typ, 6.8 dB Max - Measured 3.25 dB+17 dBm CW Max
P1T-0R5G18G-55-T-SFF-PN *Active0.5 GHz18 GHzAbsorptive55 dB min - Measured 73.56 dB3.5 dB max - Measured 2.45 dB+20dBm CW max
P1T-0R5G18G-60-T-SFFActive0.5 GHz18 GHzAbsorptive60dB min. (0.5 - 2.0GHz) and 70dB min. (2-18GHz) - Measured 101dB (0.5 - 2.0GHz), Measured 86dB (2.0 - 18.0GHz)3.5dB max+20dBm CW
P1T-10M1G-80-T-SFF *Active0.01 GHz1 GHzAbsorptive80 dB typ. - Measured 86.02 dB1.3 dB max - Measured 0.65 dB+30 dBm max (Survival), +20 dBm max (Operating)
P1T-18G40G-30-1515-292FFActive18.0 GHZ40.0 GHzAbsorptive30 dB min.4.0 dB max.+23 dBm CW max.
P1T-200M18G-60-T-SFF-OPT518Preliminary0.5 GHz18 GHzAbsorptive65 dB min1.0 dB typ, 2.5 dB max+27 dBm "Hot Switching" Maximum
P1T-2G4G-75-R-SFF *Active2 GHz4 GHzReflective75 dB min - Measured 88.91 dB0.85 dB typ. - Measured 0.59 dB+30 dBm max (Survival), +20 dBm max (Operating)
P1T-0R5G18G-60-T-SFF-OPT1G6GPreliminary1.0 GHz6.0 GHzAbsorptive60dB min. (1.0 - 2.0GHz) and 70dB min. (2.0-6.0GHz)3.5dB max+20dBm CW

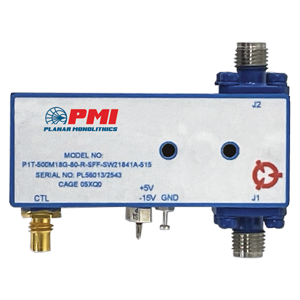

P1T-500M18G-80-R-SFF-SW21841AActive0.5 GHz18 GHzReflective45 dB min (0.5 to 1.0GHz) - Measured -106.13 dB @ 1.0 GHz, 70 dB min (1.0 to 2.0GHz) - Measured -107.97 dB @ 2.0 GHz, 85 dB min (2.0 to 12.4GHz) - Measured -94.19 dB @ 12.4 GHz, 80 dB min1.0dB max (0.5 to 2.0GHz) - Measured -0.53 dB @ 1.0 GHz, 1.2dB max (2.0 to 4.0GHz) - Measured -0.67 dB @ 4.0 GHz, 1.5dB max (4.0 to 8.0GHz) - Measured -1.11 dB @ 8.0 GHz, 2.5dB max2 W Average, 10 W Peak @ 1 usec PW
P1T-8G12G-70-T-SFF *Active8 GHz12 GHzAbsorptive70 dB Min - Measured 91 dB2.2 dB Max - Measured 1.9 dB+30 dBm Max (Survival), +20 dBm Max (Operating)
P1T-DC40G-65-T-292FF-1NS-OPT18GActiveDC18 GHzAbsorptive60 dB typ., 55 dB min. - Measured 61.79 dB4.5 dB typ., 5.0 dB max. - Measured 3.64 dB+17 dBm CW max
P1T-12G18G-65-T-SFF *Active12 GHz18 GHzAbsorptive65 dB Min - Measured 88 dB2.8 dB Max - Measured 2.6 dB+30 dBm Max (Survival), +20 dBm Max (Operating)
P1T-500M18G-80-R-SFF-SW21841A-LVActive0.5 GHz18.0 GHzReflective45 dB min, 80 dB min1.0 dB max, 2.5 dB max2 W Average, 10 W Peak @ 1 us PW
P1T-500M18G-85-T-SFFActive0.5 GHz18 GHzAbsorptive85dB5.0dB typ+20dBm CW max
P1T-18G40G-90-1515-292FFActive18 GHz40 GHzAbsorptive90 dB Min - Measured 99 dB5.0 dB Max - Measured 4.36 dB+23 dBm CW Max
P1T-200M18G-60-T-SFFActive0.2 GHz18 GHzAbsorptive65 dB min1.0 dB typ, 2.5 dB max+27 dBm "Hot Switching" Maximum
P1T-500M40G-55-T-292FF *Active0.5 GHz40 GHzAbsorptive74 dB typ, 55 dB min. - Measured 74.96 dB5.5 dB max. - Measured 5.13 dB+20dBm CW max
P1T-8G40G-65-T-292FF-1NS-LVPECLActive8 GHz40 GHzAbsorptive65 dB typ., 55 dB min.5.5 dB typ., 6.8 dB max.+17 dBm CW max.

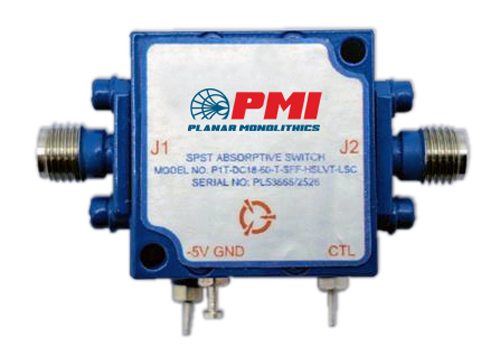

P1T-DC18-60-T-SFF-HSLVTActiveDC18 GHzAbsorptive60dB min (10MHz to 12.0GHz), 70dB min (12.0 to 18.0GHz)4.5 dB max - Measured 3.3 dB+20 dBm CW Max
P1T-DC40G-65-T-292FF-1NS-OPT2G6G-LVTTLActive2.0 GHz6.0 GHzAbsorptive65 dB Typ, 55 dB Min2.5 dB Typ, 3.0 dB Max+17 dBm CW Max
P1T-6G18G-60-T-SFF-1WActive6 GHz18 GHzAbsorptive65 dB Min - Measured 96.9 dB2.75 dB Max - Measured 2.45 dB+30 dBm Max
P1T-DC40-65-T-292FF-1NS-OPT26-LVTTL-OPT28Preliminary2.0 GHz8.0 GHzAbsorptive65 dB typ., 55 dB min.2.5 dB typ., 3.0 dB max.+17 dBm CW max.
P1T-DC40G-65-T-292FF-1NSActiveDC40 GHzAbsorptive65 dB Typ, 55 dB Min5.5 dB Typ, 6.8 dB Max+17 dBm CW Max
P1T-1G18G-65-T-SFF *Active1 GHz18 GHzAbsorptive65 dB min - Measured 81.0 dB3 dB max - Measured 2.88 dB+30 dBm max (Survival), +20 dBm max (Operating)
P1T-DC40G-65-T-292FF-1NS-OPT18G-50OHMActiveDC18 GHzAbsorptive60 dB Typ - Measured 62.21 dB 55 dB Min4.5 dB Typ - Measured 3.75 dB, 5.0 dB Max+17 dBm CW max
P1T-6G12G-80-T-SFF-1WActive6 GHz12 GHzAbsorptive80 dB min. - Measured 96 dB1.75 dB max. - Measured 1.66 dB+30 dBm Max.
