APD-2-500M2G-23-SFF-30W Active

2 Way Power Divider

APD-2-500M2G-23-SFF-30W
Product Feature

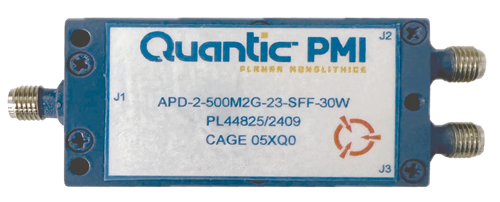

Quantic PMI Model APD-2-500M2G-23-SFF-30W is a 2 Way Power Divider featuring high isolation, low insertion loss, low VSWR and has excellent phase and amplitude balance. Housing measures 2.13" x 1.1" x 0.39" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Type: 2 Way
Frequency Range (GHz): 0.5 to 2
Frequency Min (GHz): 0.5
Frequency Max (GHz): 2
Isolation (dB): 23 dB Min
Insertion Loss (dB): 0.5 dB Max
Insertion Loss (dB) - Measured: 0.5 dB Max (Above 3.01 dB Split)
VSWR (In/Out): 1.2:1 Max / 1.15:1 Max
Amplitude Balance: 0.2 dB Max
Phase Balance: 2° Max
Power Handling: 30 W Max (Forward)
1 W Max (Reverse)
Impedance: 50 Ohm
Size: 2.13 x 1.10 x 0.39
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Non-Operating): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
