BPM-4G8G-HS Preliminary

Bi-Phase Modulator

BPM-4G8G-HS
Product Feature

Quantic PMI Model BPM-4G8G-HS is a high speed, Bi-Phase Modulator operating over the 4 to 8 GHz frequency range that offers 0° / 180º phase states with an insertion loss of 3 dB and a switch time of 25 ns. This model features a compatible control with low amplitude and phase error. Package size is 1.25" x 1.25" x 0.5" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 4 to 8
Frequency Min (GHz): 4
Frequency Max (GHz): 8
Insertion Loss (dB): 3 dB Max
Phase States: 0° / 180º
VSWR: 2.0:1 Max
Control Type: TTL
Amplitude Error: 1 dB Max
Phase Error: ±10º Max
Switching Time: 25 ns Max
Input Power: 20 dBm CW Max Operating
Input Power (Survival): 30 dBm CW Max
Power Supply: +5 VDC @ 100 mA,
-15 VDC @20 mA
RF Connectors: SMA Female

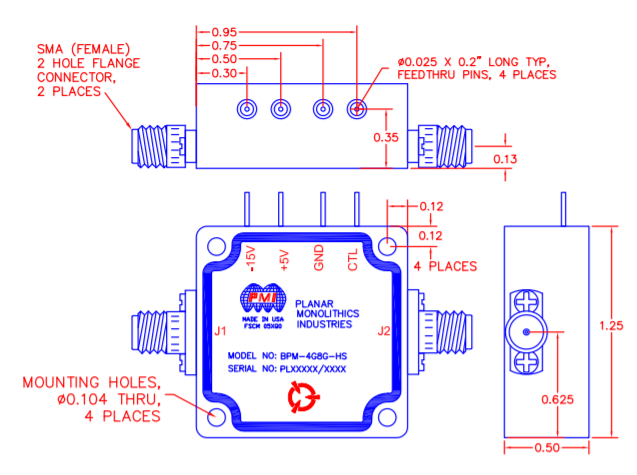

Size: 1.25" x 1.25" x 0.5"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 °C to +85 °C
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
