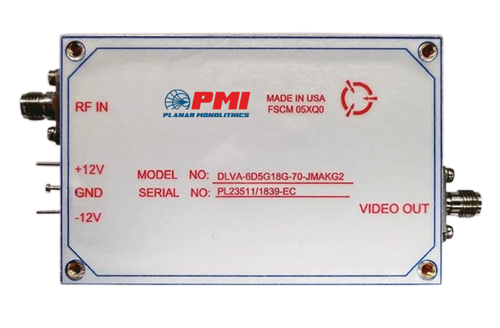

| General Parameters: |
|---|
| Type: | DLVA |
|---|
| Status: | Active |
|---|
| Frequency Range: | 6.5 to 18 GHz |
|---|
| Frequency Min: | 6.5 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| TSS: | -72 dB Min |
|---|
| TSS (Measured): | -72 dB Min |
|---|
| Size: | 3.2 " x 2.05 " x 0.4" |
|---|
| Log Slope: | 25 mV/dB (±10%) @ 50 Ohm Load |
|---|
| Log Range: | -70 to 0 dBm |
|---|
| Log Linearity: | ±1.5 dB Typ, ±1.75 dB Max |
|---|
| Recovery Time: | <70 ns @ -10 dBm |
|---|
| Power Supply: | +12 VDC ± 6% @ 400 mA Max
-12 V ± 6% @ 250 mA Max |
|---|
| Finish: | Gold Plated |
|---|
| VSWR: | 3.0:1 Max |
|---|
| RF Connectors: | SMA (F) |
|---|
| Maximum Input Power(CW): | +20 dBm CW Max |
|---|
| Pulse Range: | 100 ns to CW |
|---|
| Video Output Level: | 0 to 2.2 VDC (50 Ohm Load) |
|---|
| Log Accuracy: | ±2.0 dB Max |
|---|
| Overshoot: | 1 dB Max |
|---|
| Max Video Output: | 2.4 V |
|---|
| Pulse Rise Time (10% to 90%): | <30 ns |
|---|
| Pulse Overshoot: | 0.0 dB with 50 Ohm Load |
|---|
| Pulse Fall Time (90% to 10%): | <70 ns |
|---|
| Propagation Delay Time: | <15 ns |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -54 ºC to +100 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
| Humidity: | MIL-STD-810, Method 507 |
|---|
| Acceleration: | MIL-STD-810, Method 513 (Non-Operational) |
|---|
| Shock: | Handling/MIL-STD-810, Method 516, Fig. 5a, 5b, 5c
High Impact/MIL-STD-810 Method 516, Fig. 8a, 8b, 8c
High Frequency/MIL-STD-810 Method 516, Fig. 9 |
|---|
| Random Vibration: | MIL-STD-810, Method 514, Fig. 3 (Non-Op), Fig. 4a, 4b (Operational) |
|---|
| Altitude: | 0 - 31,000 feet |
|---|
| Explosive Atmosphere: | MIL-STD-810, Method 511 |
|---|
| Fungus: | MIL-STD-810C, Method 508 |
|---|
