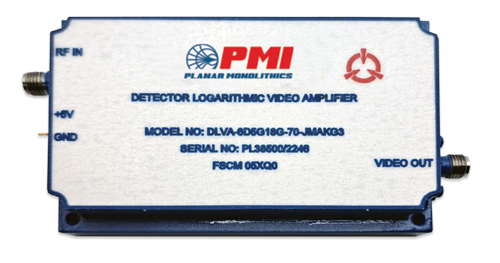

| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 6.5 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| TSS (dBm): | -72 dBm Min |
|---|
| Log Slope (mV/dB): | 25 (±10%) @ 50 Ohm Load |
|---|
| Log Range (dBm): | -70 to 0 dBm |
|---|
| Log Linearity: | ±1.5 dB Typ, ±1.75 dB Max |
|---|
| Recovery Time: | 70 ns @-10 dBm Max |
|---|
| Power Supply: | +6 VDC ±5% @ 700 mA Max |
|---|
| VSWR: | 3.0:1 Max |
|---|
| Video Load (Ohms): | 50 |
|---|
| Propagation Delay: | 15 ns |
|---|
| Pulse Range: | 100 ns to CW |
|---|
| Log Accuracy: | ±2.0 dB Max |
|---|
| Video Output Range: | 0 to 2.2 VDC into 50 Ohm Load |
|---|
| Max Video Output: | 2.4 V |
|---|
| Input Power: | +20 dBm CW Max |
|---|
| Pulse Rise Time (10% to 90%): | 30 ns Max |
|---|
| Pulse Overshoot: | 0.0 dB with 50 Ohm Load |
|---|
| Pulse Fall Time (90% to 10%): | 70 ns Max |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 4.2" x 2.05" x 0.40" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54° C to +85 °C |
|---|
| Non-Operating Temperature: | -54° C to +100 °C |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
|---|
| Humidity: | MIL-STD-810, METHOD 507 |
|---|
| Acceleration: | MIL-STD-810, METHOD 513, (NON-OPERATIONAL) |
|---|
| Shock: | HANDLING/ MIL-STD-810, METHOD 516, FIG. 5a, 5b, 5c
HIGH IMPACT/ MIL-STD-810 METHOD 516, FIG. 8a, 8b, 8c
HIGH FREQUENCY/ MIL-STD-810 METHOD 516, FIG.9 |
|---|
| Random Vibration: | MIL-STD-810, METHOD 514, FIG. 3 (NON-OP), FIG. 4a, 4b (OPERATIONAL) |
|---|
| Altitude: | 0 - 31, 000 feet |
|---|
| Explosive Atmosphere: | MIL-STD-810, METHOD 511 |
|---|
| Fungus: | MIL-STD-810C, METHOD 508 (Notes:A, B & C) |
|---|
