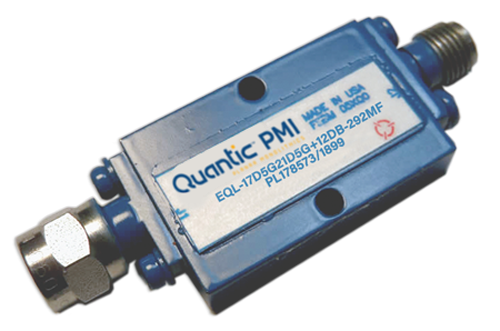

PMI Model No. EQL-17D5G21D5G+6DB-292MF is a passive amplitude equalizer that operates over the frequency range of 17.5 to 21.5GHz. This unit has a maximum input power of 0.5 watts CW and a maximum VSWR of 2.0:1. The unit is supplied with 2.92 connectors in a housing that measures 1.10" x 0.67" x 0.22"

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 17.5 to 21.5 GHz
Frequency Min: 17.5 GHz
Frequency Max: 21.5 GHz
Maximum Input Power: 0.5 Watts CW
VSWR: 2.0:1 max. - Measured 1.27:1
Insertion Loss: 6 dB max. - Measured 1.42 dB
Slopes: This equilizer has a positive slope which equalizes cable loss.
Slope (Frequency/Amplitude): 17.5GHz/ -5.6dB, 18.0GHz/ -5.3dB, 18.5GHz/ -4.8dB, 19.0GHz/ -4.2dB, 19.5GHz/ -3.5dB, 20.0GHz/ -2.7dB, 20.5GHz/ -1.8dB, 21.0GHz/ -0.8dB, 21.5GHz/ 0dB
Accuracy @ Defined Points: ±0.1dB
Connectors In / Out: 2.92mm Male J1, 2.92mm Female J2
Size: 1.10" x 0.67" x 0.22"
Finish: Finish: Painted Blue
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
