EQL-17D6G21D6G-10DB-292MF

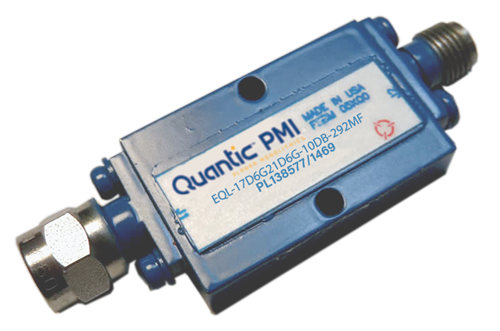

PMI Model No. EQL-17D6G21D6G-10DB-292MF is a passive amplitude equalizer that operates over the frequency range of 17.6 to 21.6GHz. This unit has a maximum input power of 0.5 watts CW and a maximum VSWR of 2.0:1. The unit is supplied with 2.92 connectors in a housing that measures 1.10" x 0.67" x 0.22"

Product Specifications

General Parameters:
Status: Active
Frequency Range: 17.6 to 21.6 GHz
Frequency Min: 17.6 GHz
Frequency Max: 21.6 GHz
Maximum Input Power: 0.5 Watts CW
VSWR: 2.0:1 max - Measured 1.92:1
Slopes: This equilizer has a negative slope which simulates cable loss.
Slope (Frequency/Amplitude): Amplitude @ 17.6GHz, Amplitude -10dB @ 21.6GHz, Amplitude= -2.5dB/GHz*
Amplitude @ 17.6GHz: -1 dB min - Measured -3.36 dB
Linearity: ±0.5dB
Connectors In / Out: 2.92mm Male J1, 2.92mm Female J2
Size: 1.10" x 0.67" x 0.22"
Finish: Finish: Painted Blue
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
