EQL-32G37G+2DB-292MF Preliminary
Passive Amplitude Equalizer

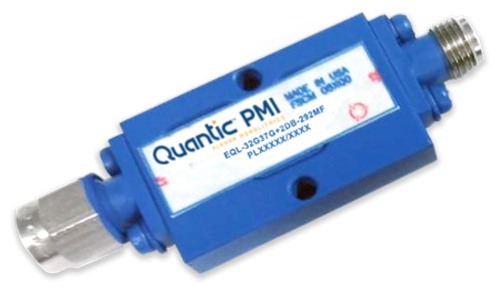

Quantic PMI Model EQL-32G37G+2DB-292MF is a 32 to 37 GHz passive amplitude equalizer that has a positive slope which equalizes cable loss. This equalizer has a maximum input power of 0.5 W, a maximum VSWR of 2.0:1, a maximum insertion loss of 6 dB at 32 GHz, and an amplitude accuracy of ±0.5 dB, has 2.92mm male / female connectors, and the housing size is 1.1" x 0.67" x 0.22".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 32 to 37 |
| Frequency Min (GHz): | 35 |
| Frequency Max (GHz): | 37 |
| Input Power Max: | 0.5 W CW |
| VSWR: | 2.0:1 Max |
| Slope: | -1.7 dB @ 32 GHz 0 dB @ 37 GHz |
| Accuracy @ Defined Points: | ±0.5 dB |
| Amplitude @ 17.6 GHz: | 6 dB Max (Amplitude @ 32 GHz) |
| Connectors In / Out: | 2.92mm Male / Female |
| Size: | 1.10" x 0.67" x 0.22" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
