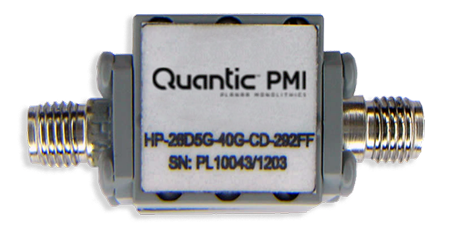

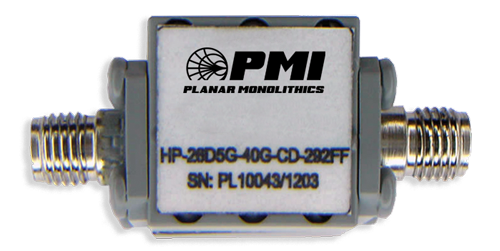

HP-26D5G-40G-CD-292FF Active
Suspended Substrate High Pass Filter
PMI Model HP-26D5G-40G-CD-292FF is a suspended substrate high pass filter having a passband of 26.5 GHz to 40 GHz. The 1dB Cut-Off Frequency is 26.5 GHz with a maximum passband insertion loss of 2 dB. This model provides over 54 dBc of rejection at 20 GHz and below. Package size is 0.65" x 0.65" x 0.5" and contains 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 26.5 to 40 |
| Cut-Off Frequency (GHz): | 26.5 |
| Passband Insertion Loss (dB): | 2 dB Max |
| Passband VSWR: | 2.0:1 - Measured 2.0:1 |
| Rejection: | -54 dBc Min @ 20 GHz - Measured 55 dBc |
| Connectors: | 2.92mm Female |
| Size: | 0.65" x 0.65" x 0.50" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
