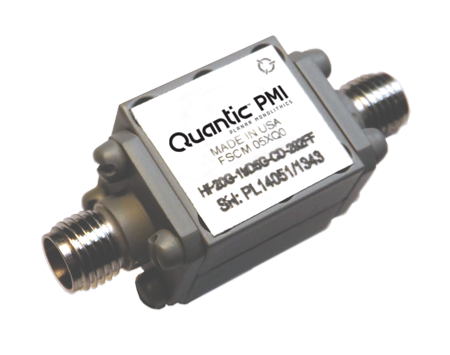

Model HP20G-19D5G-CD-292FF is a a high pass filter having a passband of 20,000 to 40,000MHz.

Product Specifications

General Parameters:
Status: Active
Passband: 20 to 40 GHz
Cut-Off Frequency: 20GHz @ 1dB
Passband Insertion Loss: 1.5 dB - Measured 0.6 dB
Passband VSWR: 2.0:1 - Measured 1.93:1
Rejection: -54 dBc @ 14.5 GHz - Measured 64.53 dB
Size: 0.614"L x 0.50"W x 0.56"H
Connectors In/Out: 2.92mm Female
Environmental Ratings:
Temperature (Operating): -40ºC to +85 ºC
Temperature (Storage): -40 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
