| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 6 to 18 |
|---|
| Frequency Min (GHz): | 6 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Attenuation Range (dB): | 40 dB Min |
|---|
| Attenuation Flatness (dB): | 0 to 30 dB: ±0.75 dB Max
30 to 40 dB: ±1 dB Max |
|---|
| Attenuation Accuracy (dB): | ±0.75 dB Max |
|---|
| Insertion Loss (dB): | 8 dB Max |
|---|
| Attenuation Control: | 9 BIT |
|---|
| LSB: | 0.1 dB step Min |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Power Supply: | +7 VDC @ 300 mA Max |
|---|
| Switching Speed: | 250 ns Max |
|---|
| Attenuation Flatness Over Temperature: | 0 to 30 dB: ±1 dB Max
30 to 40 dB: ±1.2 dB Max |
|---|
| Phase Flatness: | 0 to 30 dB: ±5° Max
30 to 40 dB: ±7° Max |
|---|
| Phase Flatness Over Temperature: | 0 to 30 dB: ±7° Max
30 to 40 dB: ±10° Max |
|---|
| RF Input Power: | Operating: 20 dBm Max
Survival: +27 dBm Max |
|---|
| Temperature Coefficient: | 0 to 30 dB: 0.01 dB/°C
30 to 40 dB: 0.02 dB/°C |
|---|
| Control Connections: | 15-Pin Micro-D (M)
(Mating Connector to be Supplied) |
|---|
| Digital Control: | 9 Bit |
|---|
| Connectors: | SMA Female - Field Replaceable |
|---|

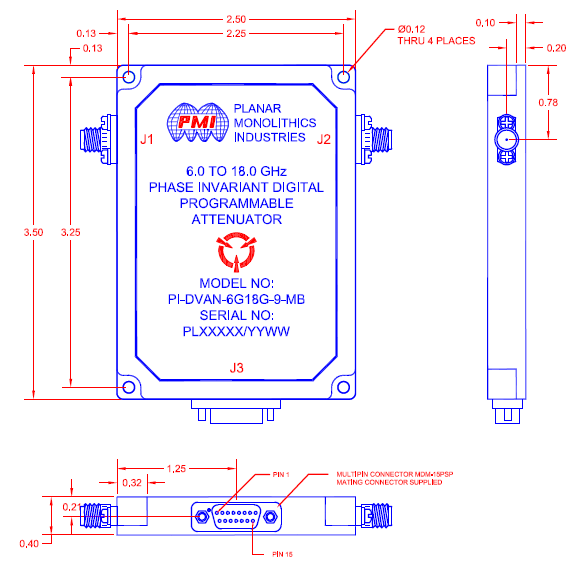

| Size: | 3.50" x 2.50" x 0.40" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | 0 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
