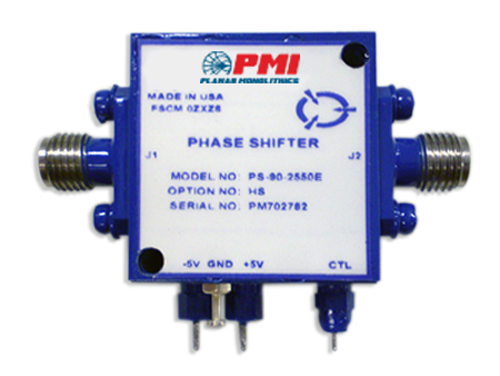

PMI Model No. PS-90-2550E is a miniature, 0 to 180 degree Bi-Phase Modulator/ Phase Shifter with TTL control logic (ECL Logic Available) operating over a frequency range of 1.9 to 5.6 GHz.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 1.9 to 5.6 GHz
Frequency Min: 1.9 GHz
Frequency Max: 5.6 GHz
Phase States: 0° / 180°
Insertion Loss: 2.5 dB typ., 3.0 dB max.
VSWR: 2.0:1
Control Type: TTL
Speed: 75 nS max On/Off
Input Power: +20 dBm Operating
Input Power (Survival): 0.5 Watt CW, 1uS Pulse Width Survival
Carrier Suppression: 20 dB Typ
Power Supply: +5 VDC @ 75 mA max, -5 VDC @ 20 mA max
Size: 1.0" X 1.0" X 0.5"
Weight: 2 Ounces
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
