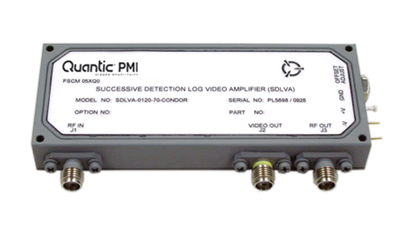

SDLVA-0120-70

Model No.: SDLVA-0120-70 is a Successive Detection Video Log Amplifier (SDLVA) that operates over the 0.2 to 2.0 GHz Frequency Range (Useful Range from 0.1 to 2.5 GHz). These units have a Dynamic Range of 65 to 70 dB, a TSS of -67 dBm and a Nominal Video Bandwidth of 20 MHz.  These units are designed using cutting edge GaAs Technology which provides stunning performance and reliability in a compact package making it an optimum solution for high speed channelized receiver applications.

Additional Product Information under, http://www.planarmonolithics.com/products/SDLVA-0120-70.htm

Product Specifications

General Parameters:
Status: Active
Frequency Range: 0.2 to 2.0 GHz
Frequency Min: 0.2 GHz
Frequency Max: 2 GHz
VSWR: 1.8:1 max.-
VSWR (Measured): 1.8:1 Max - (1.5:1 Typ)
Size: 3.75 " x 1.50 " x 0.40"
Log Slope: 25 mV/dB Nom (Adjustable to 30 mV/dB)
TSS: -65 dBm Min, -70 dBm Typ
Limited IF Output: -10 dBm
Input Power: +10 dBm
Log Slope Variation with Temperature: ±1mV Max
Log Slope Variation with Frequency: ±0.5 mV/dB (Over 80 MHz RF Bandwidth)
Tangential Sensitivity: -65 dBm Min (-70 dBm Typ)
Dynamic Range: > 65 dB
Minimum Log Voltage: -60 dBm (-65 dBm Typ)
Maximum Log Voltage: +5 dBm (+8 dBm Typ)
Log Linearity: ±1.2dB Max (-60 to 0 dBm), ±0.8 dB Typ,
±1.5 dB Max (-65 to +5 dBm) ±1.2 dB Typ
Log Video Output Coupling: DC
Log Video Maximum Output Voltage: 2.7 V
Log Video Output DC Offset: 0.1 v Nominal (Adjustable)
Log Video Output Slope: 25 mV/dB Nominal (adjustable to 30 mV/dB)
Log Video Propagation Delay: 10 ns Max, 7 ns Typ
Log Video Load: 100 ohms ±10%
Rise Time: 25 ns Max
Fall Time: 30 ns Max
Settling Time: 40 ns Max
Power Supply: +7 to +18 Volts @ 100 mA,
(120 mA for Extended Dynamic Range),
-7 to -18 Volts @ 190 mA
Environmental Ratings:
Operating Temperature: -40 ºC to +71 ºC
Non-Operating Temperature: -65 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
