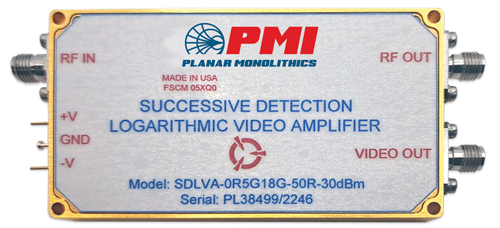

| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| TSS (dBm): | -71 Min |
|---|
| TSS (Measured): | -71 dBm Min - Measured -72 dBm |
|---|
| Log Slope (mV/dB): | 25 ± 10% @ 50 Ohm Load |
|---|
| Log Range (dBm): | -70 to 0 |
|---|
| Rise Time: | 20 ns Max - Measured 6.6 ns |
|---|
| Power Supply: | +12 to 15 VDC @ 400 mA Max - Measured 189 mA
-12 to 15 VDC @ 150 mA Max - Measured 95 mA |
|---|
| VSWR: | 2.5:1 Max |
|---|
| VSWR (Measured): | 2.5:1 Max - Measured 2.47:1 |
|---|
| Video Load (Ohms): | 50 |
|---|
| Pulse Range: | 50 ns to CW |
|---|
| Dynamic Range: | -70 to 0 dBm |
|---|
| Video Output Range: | 0 to 2.2 VDC into a 50 Ohm Load
Measured 325 mV - 2.1 VDC |
|---|
| Max Video Output: | 2.4 VDC - Measured 2.1 VDC |
|---|
| Input Power: | +30 dBm CW Max |
|---|
| Log Slope Intercept Point: | -70 dBm
RF Input Video Out = 350 mV (Nom) @ +25 ºC - Measured 325 mV |
|---|
| Connectors: | SMA (F) |
|---|
| Size: | 3.2" x 1.8" x 0.4" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
