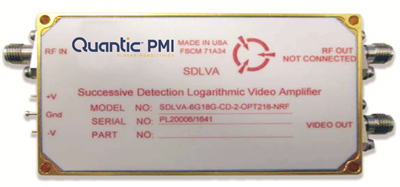

| General Parameters: |
|---|
| Type: | SDLVA |
|---|
| Status: | Active |
|---|
| Frequency Range: | 2 to 18 GHz |
|---|
| Frequency Min: | 2 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| TSS: | -70 dBm Min - Measured -74 dBm |
|---|
| Size: | 3.2" x 1.8" x 0.4" |
|---|
| Log Slope: | 25 mV/dB (±10%) 50 Ohm |
|---|
| Log Range: | -70 to +5 dBm |
|---|
| Log Linearity: | ±2.5 dB (-40 ºC to +85 ºC) - Measured ±1.5 dB |
|---|
| Rise Time: | 10 ns Max, 6 ns Typ - Measured 6.48 ns |
|---|
| Recovery Time: | 60 ns Typ - Measured 60 ns |
|---|
| Power Supply: | +12 V or +15 V @ 350 mA - Measured 290 mA,
-12 V or -15 V @ 180 mA - Measured 107 mA |
|---|
| Finish: | Gold Plated |
|---|
| Frequency Flatness: | ±2.0 dB Max - Measured ± 1.5 dB @ 25°C |
|---|
| VSWR: | 2.0:1 |
|---|
| VSWR (Measured): | 2.0:1 (RF Input) - Measured 1.9:1 |
|---|
| Pulse Range: | 30 ns to CW |
|---|
| Dynamic Range: | -70 to +5 dBm |
|---|
| Input Power: | +17 dBm CW Max |
|---|
| Connectors: | SMA (F) |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Fungus: | MIL-STD-810C, Method 508.2 |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
|---|
