TD-30T-SHS-218-30DBAMP *

Buy Now

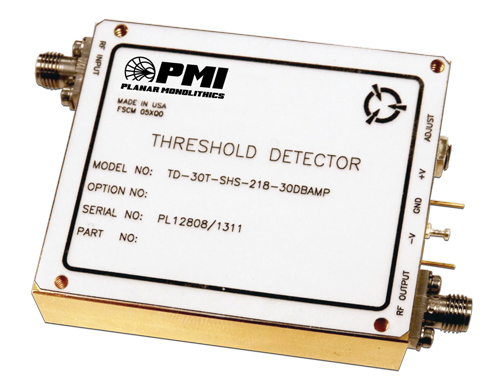

Model No.: TD-30E/30T-SHS-218-30DBAMP is an Ultra-High Speed, High Sensitivity Threshold Detector Designed for Broad Band Applications in the 2 to 18GHz Frequency Range.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 2 GHz
Frequency Max: 18 GHz
Threshold: Adjustable
Detected Output Type: TTL
Size: 2.5 x 2.0 x 0.5 Inches
Frequency Range: 2 to 18 GHz
Power Plus: +/-12V @ 250 mA Maximum - Measured +256 mA
Power Minus: +/-12V @ 120 mA Maximum - Measured -49 mA
Output: TTL
Environmental Ratings:
Operating Temperature: -55ºC to +85ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
